FlexiROC T30 R 19 Automatic Central Lubrication System CLS
132 No: 3629357835.1.3629419915 en-US

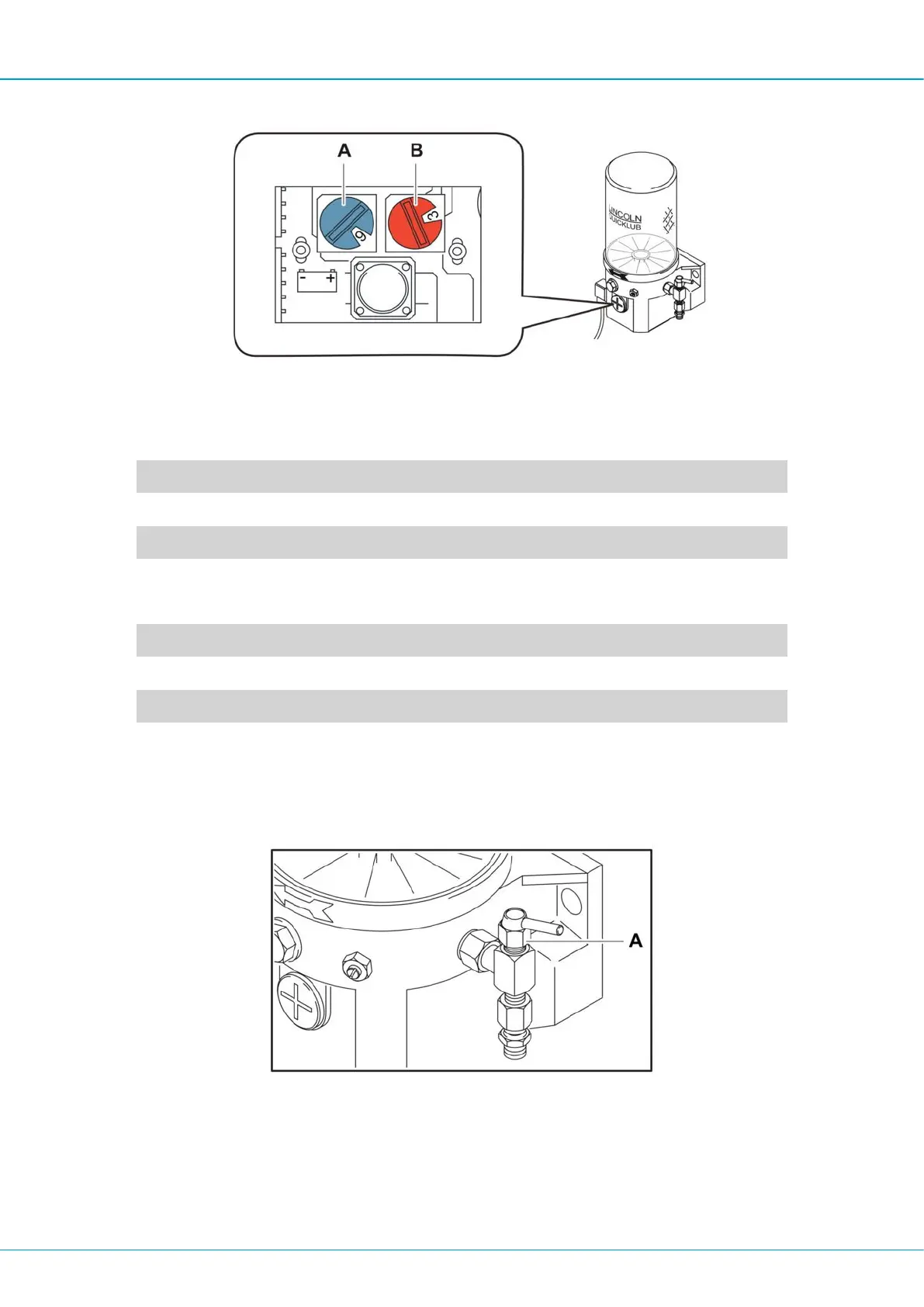

n Pause time can be adjusted to increments of 15 with the blue rotary switch (A). Pause
time is preset from factory.
n Running time can be adjusted to increments of 15 with the red rotary switch (B). Run-
ning time is preset from factory.
Rotary switch position 1 2 3 4 5 6 7 8 9
Hours 1 2 3 4 5 6 7 8 9
Rotary switch position A B C D E F
Hours 10 11 12 13 14 15
Table4: Pause Time Rotary Switch
Rotary switch position 1 2 3 4 5 6 7 8 9
Minutes 2 4 6 8 10 12 14 16 18
Rotary switch position A B C D E F
Minutes 20 22 24 26 28 30
Table5: Running Time Rotary Switch
19.3 Lubrication Pump Safety Valve
Location of Safety Valve on Lubrication Pump
The safety valve (A) is used to limit the pressure in the system. The valve opens at a pres-
sure of 350 bar (5076 psi).
If a hose, lubrication point, or nipple is blocked, the lubricant grease leaks out of the safety
valve. Troubleshooting is required when it happens.
