FlexiROC T30 R 10 Hydraulic System
65 No: 3629357835.1.3629419915 en-US

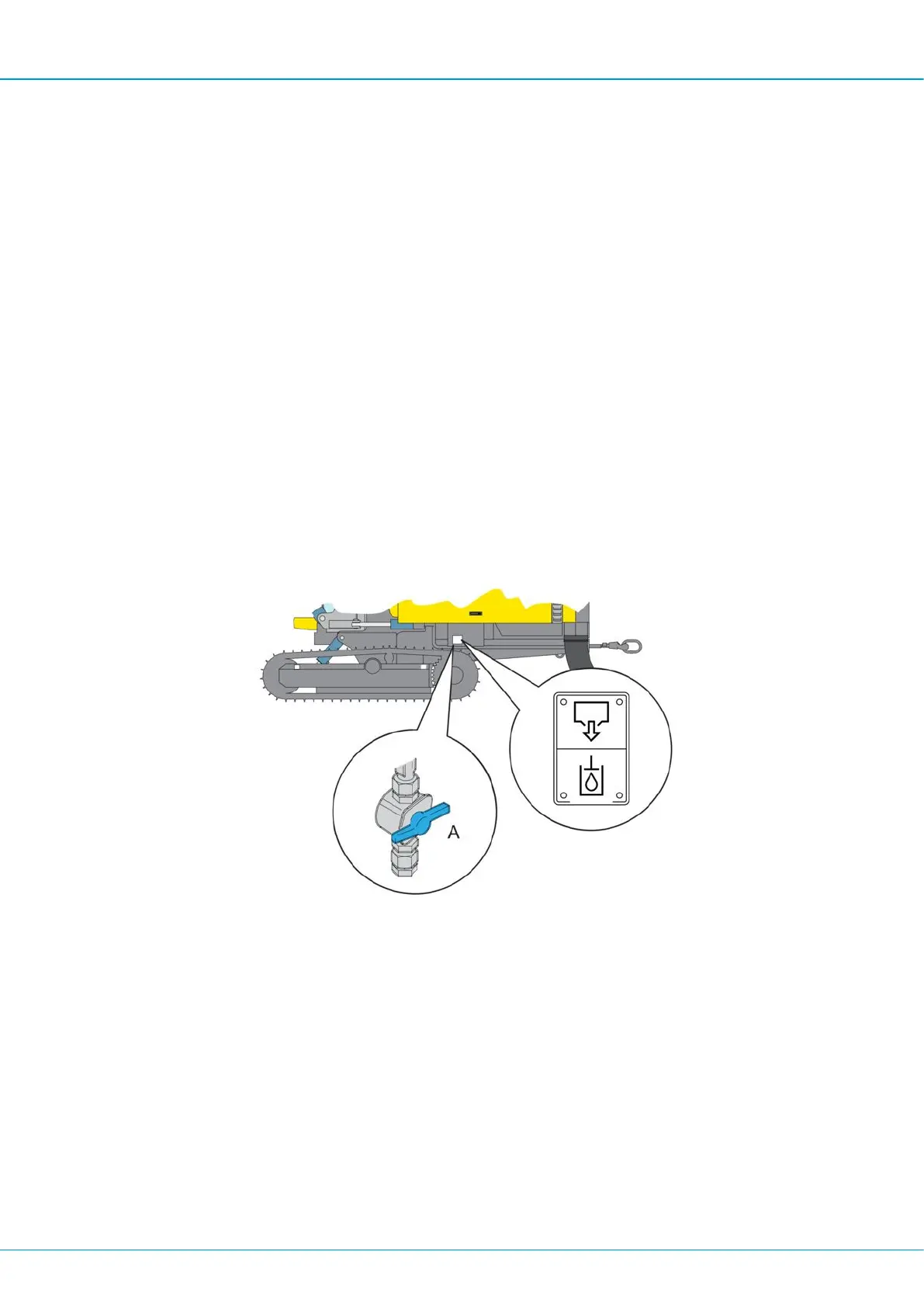

The ball valve (A) is used to drain water that can seriously damage components in the hy-
draulic system and cause corrosion. It is also used for emptying all hydraulic oil from the
tank.
Precondition
p
The hydraulic system has not been in operation for eight hours before draining the hy-
draulic oil tank.
1.
Open the air breather filter in the top of the hydraulic oil tank.
2.
Remove the plug on the ball valve (A) underneath the hydraulic oil tank.
3.
Place a vessel under the ball valve (A).
4.
Open the ball valve to drain the water.
5.
Close the ball valve when oil starts to drain.
6.
Install the plug.
7.
Check and fill up oil level.
8.
Close the air breather filter in the top of the hydraulic oil tank.
10.7.3 Replace Hydraulic Oil
1.
Remove the plug from the ball valve (A) under the hydraulic tank.
2.
Fit a hose to the ball valve and place the other end of the hose into a vessel.
3.
Open the ball valve and empty the tank.
4.
Activate the Enable hydraulic oil filler pump function in the Settings/Rig menu in
the control system.
5.
Connect the attached hose to the oil source.
6.
Press button (A) to start filling.
7.
Check that the lower sight glass is fully covered and the upper sight glass is half cov-
ered.
