2.
Set the drum so that the filler plug (A) is aligned downwards. Undo the plug to drain
out the old oil.
3.
Turn the drum so that the filler plug (A) aligns in the top position and the level plug (B)
aligns in horizontal position.
4.
Remove the level plug (B).
5.
Fill oil at the hole for the filler plug (A) until it reaches the hole for the level plug (B).
6.
Screw back the plugs (A, B).
17.4 Check Winch Unit Attachment
n

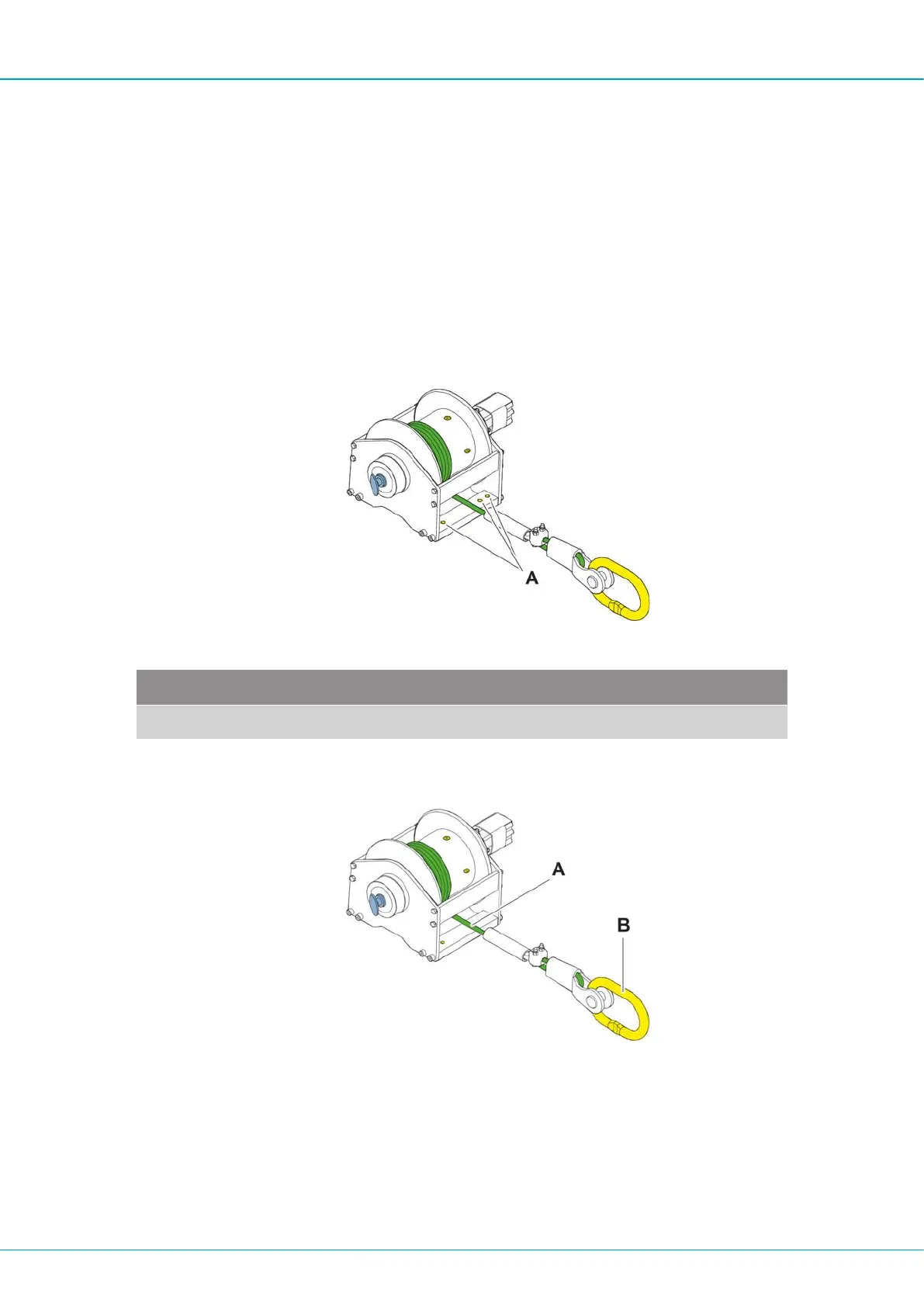

Check the tightening torque (A).
Number of Bolts Tightening Torque Value
8 315 Nm
17.5 Check Winch
n
Check for damage, unwinding, wear, and corrosion on the winch cable (A).
n
Check for damage, cracks, and wear on the hook (B) and check that it is properly
mounted.
