Atlas Copco FlexiROC T30 R Maintenance

FlexiROC T30 R 17 Winch
120 No: 3629357835.1.3629419915 en-US
n when replacing the cable.
n when attaching the cable after shortening.
Check that the winch locking mechanism is fully engaged in the drum before use, following
the attachment of the cable eye on the anchorage point.
17.2 Checking Oil Level on Winch
1.

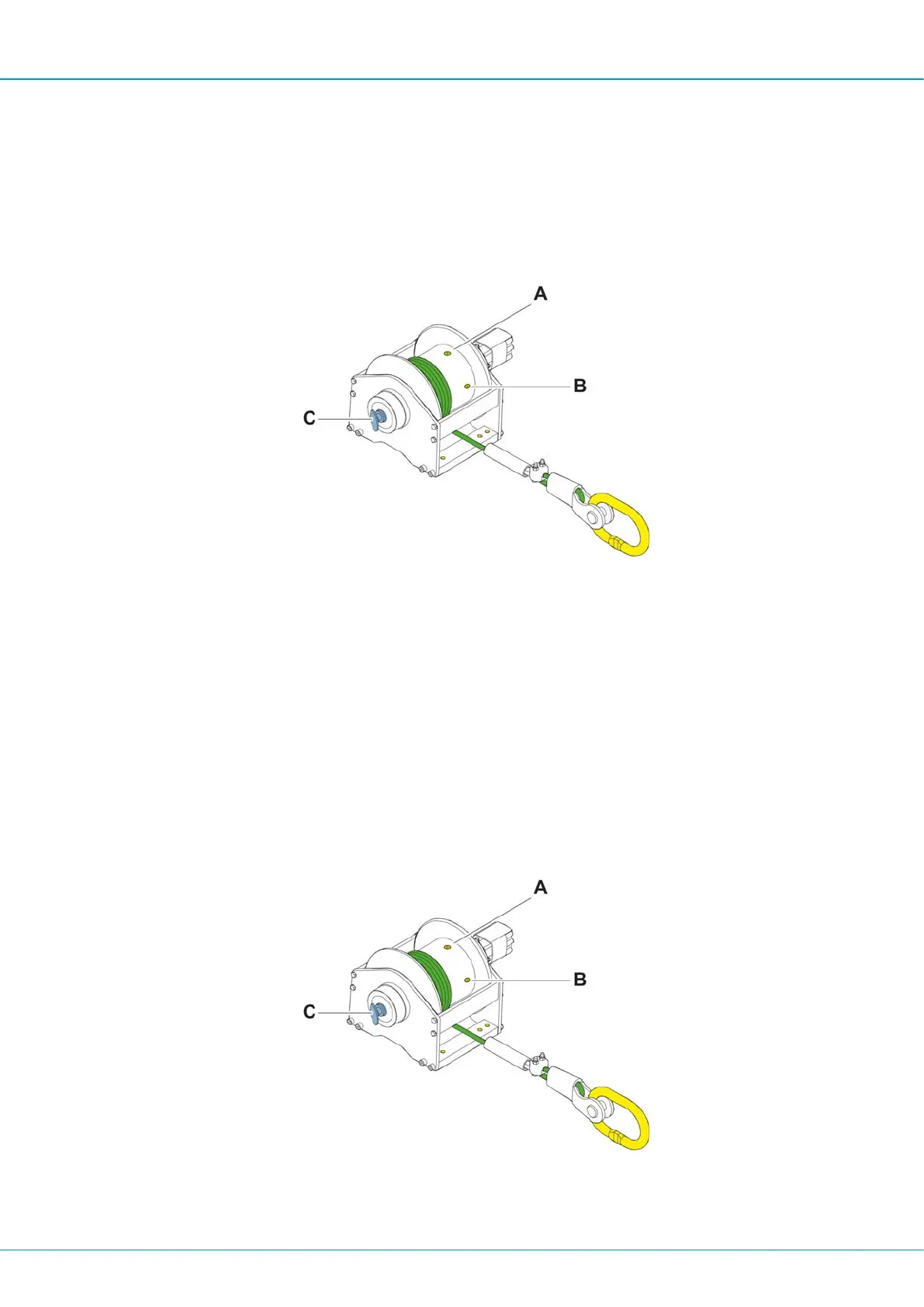

Run off enough wire from the winch drum so that the filler plug (A) and the level plug
(B) are accessible.
2.
Turn the drum so that the filler plug (A) aligns in the top position and the level plug (B)
aligns in horizontal position.
3.
Loosen and remove the level plug (B). The oil level must reach up to the hole.
4.
Fill oil in the hole for the filler plug (A) until it reaches the hole for the level plug (B) if
necessary.
5.
Screw back the plugs (A, B).
17.3 Replace Oil on Winch
1.
Run off enough wire from the winch drum so that the filler plug (A) and the level plug
(B) are accessible.
