Atlas Copco FlexiROC T30 R Maintenance

FlexiROC T30 R 16 Track Frames
107 No: 3629357835.1.3629419915 en-US
16 Track Frames
16.1 Check Tension of Crawler Tracks

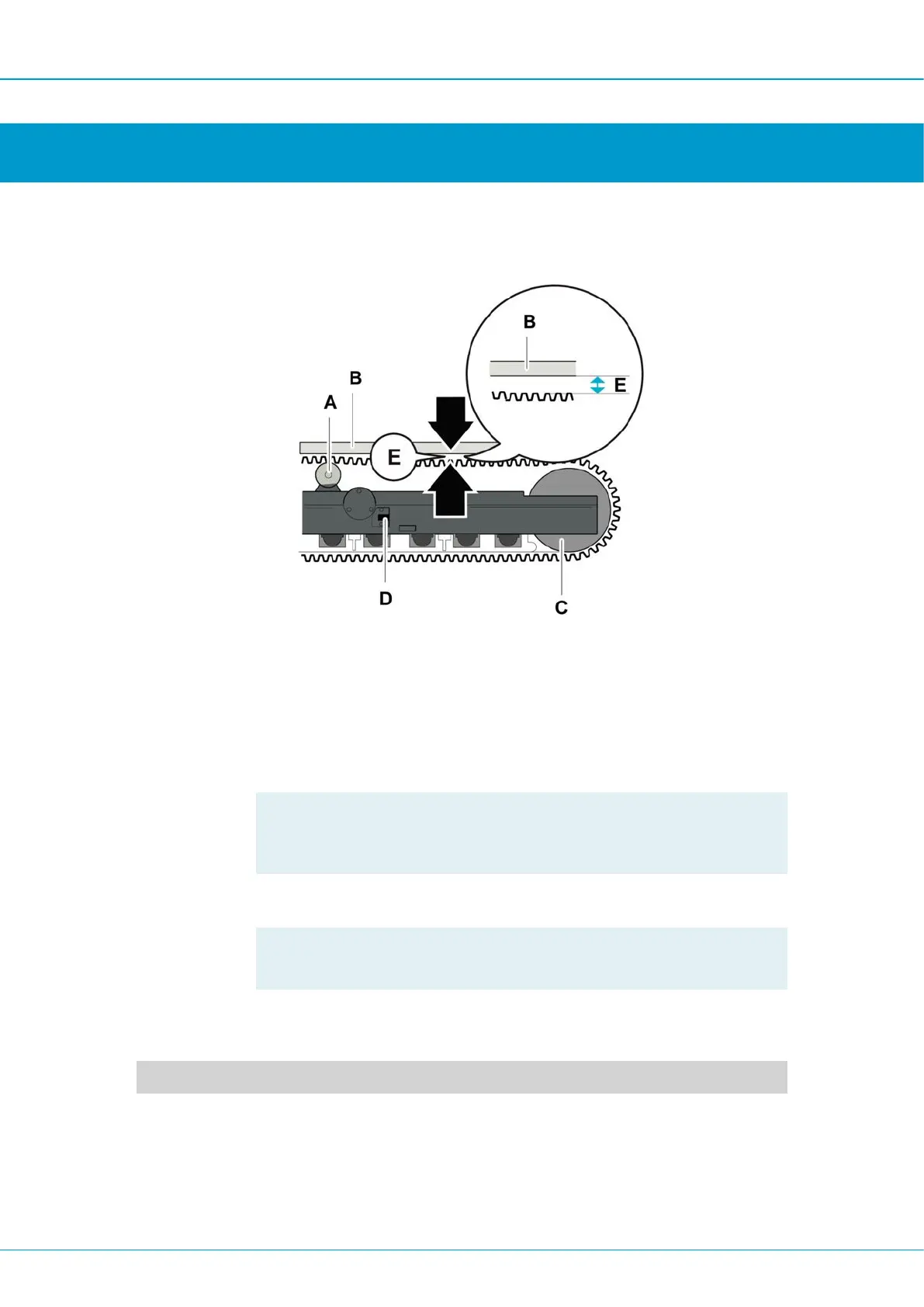

Track tension is checked between the front wheel (C) and carrier roller (A).
Precondition
p
The machine is parked on a flat and leveled surface.
p
Tracks are under normal load.
1.
Place a leveling board (B) on top of each track and maintain a clearance (E) between
them.
!
NOTE: If the tracks do not have a carrier roller (A) position the lev-
eling board between the end wheels with a maximum of 50 mm
slack in the center.
2.
Fill grease via the nipple (D) to tension the track.
!
NOTE: The grease nipple is not to be used during lubrication, but
only during this procedure.
3.
If the track tension becomes too tight, grease can also be drained from the tension
cylinder by unscrewing the nipple (D).
Clearance (E) 5–15 mm (0.2–0.6 in)
