FlexiROC T30 R 7 Feed Unit
33 No: 3629357835.1.3629419915 en-US
1.

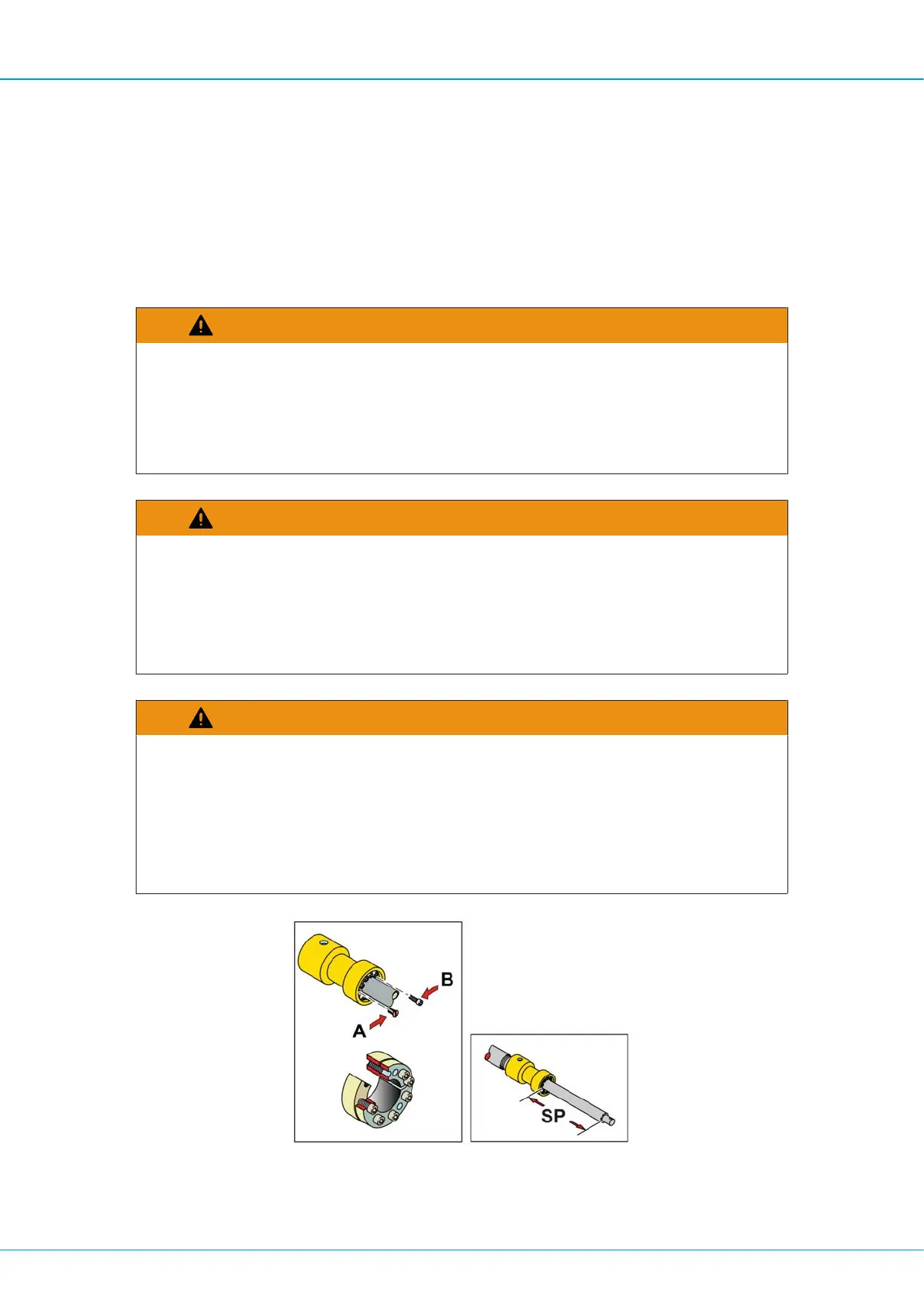

Remove the plastic plugs (A).
2.
Remove the bolts (B) from the bushing.
3.
Place the bolts (B) into the threaded holes and pull them alternately until the bushing
are separated.
7.10.2 Assembling Tension Bushing for Spacer
WARNING
Dismantling and Assembling Components
Can cause personal injury.
u Components that could move or fall down must be securely supported or strapped in
place during service and maintenance work.
WARNING
Heavy Objects
Can cause crushing injury or death.
u Do not stand under the heavy object being lifted.
u Use adequate lifting equipment.
WARNING
Moving Parts
Can cause personal injury!
u Shut off the machine and lock the electric main power switch before starting any work.
u Ensure that the hydraulic pump is off and that the system is depressurized before start-
ing work.
The spacer at the front of the cylinder is held in place with an expanding bushing. In, order
for the feeder to function correctly, the spacer measurement (SP) must be correct. This
measurement varies depending on the feed length and type of feeder.
