Atlas Copco FlexiROC T30 R Maintenance

FlexiROC T30 R 7 Feed Unit
31 No: 3629357835.1.3629419915 en-US
6.

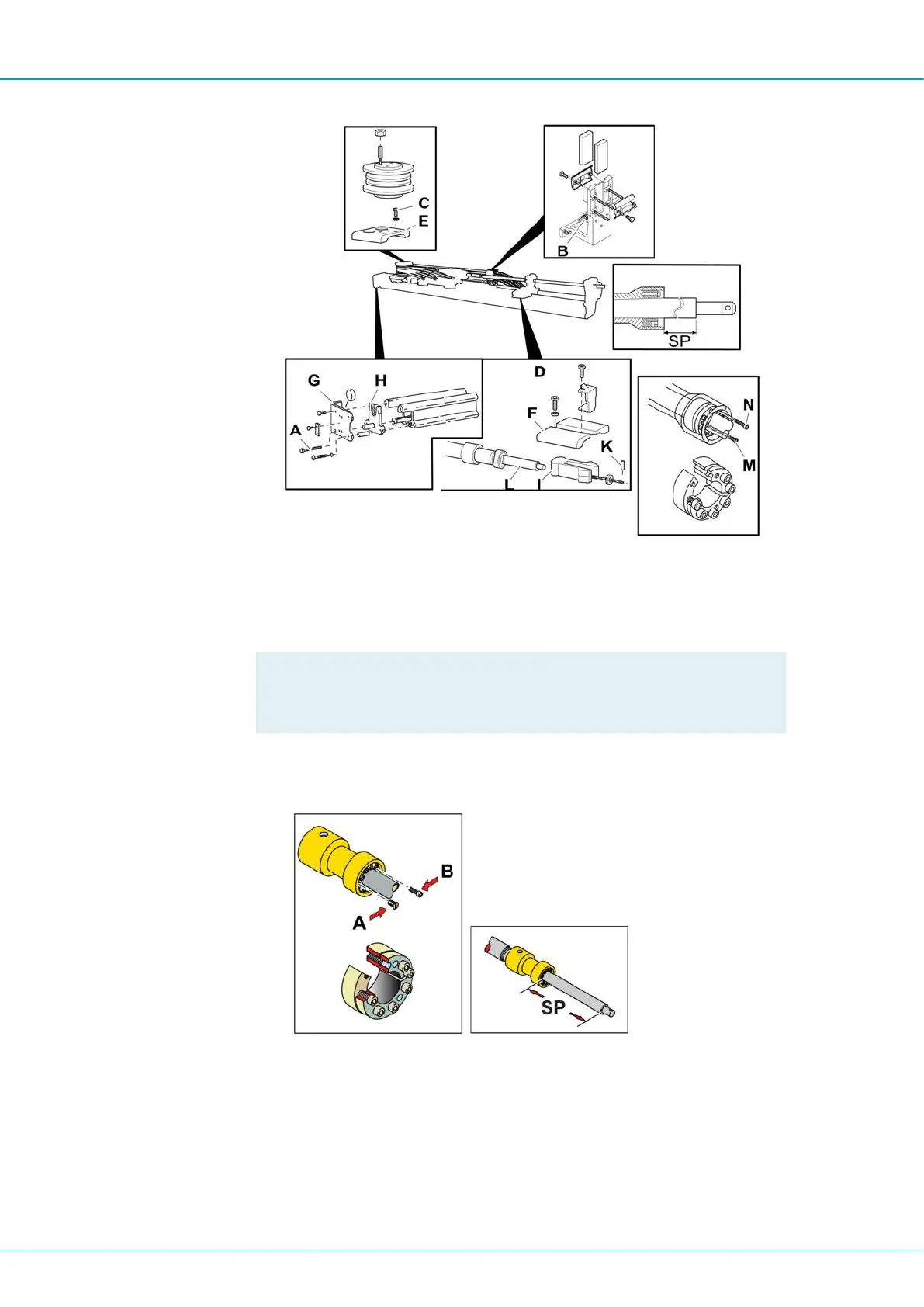

Remove bolt A completely. Remove also end piece G and the end plate H.
7.
The cylinder and fork can now be pulled backwards out of the beam.
8.
8. If necessary, remove the fork I by knocking away the pin K.
!
NOTE: Avoid removing the spacer L. If it must be removed, mea-
sure SP first so that the spacer can be installed in the same posi-
tion.
7.10 Tension Bushings for Spacers
Spacer and Tension Bushing
The spacer at the front end of the cylinder is kept in place with a tension bushing. For the
feed to function properly, the measurement SP on the spacer must be correct. The mea-
surement varies depending on the feed length and type of feed.
