49
71.07144.01 - EN
INSTRUCTIONS FOR FITTERS

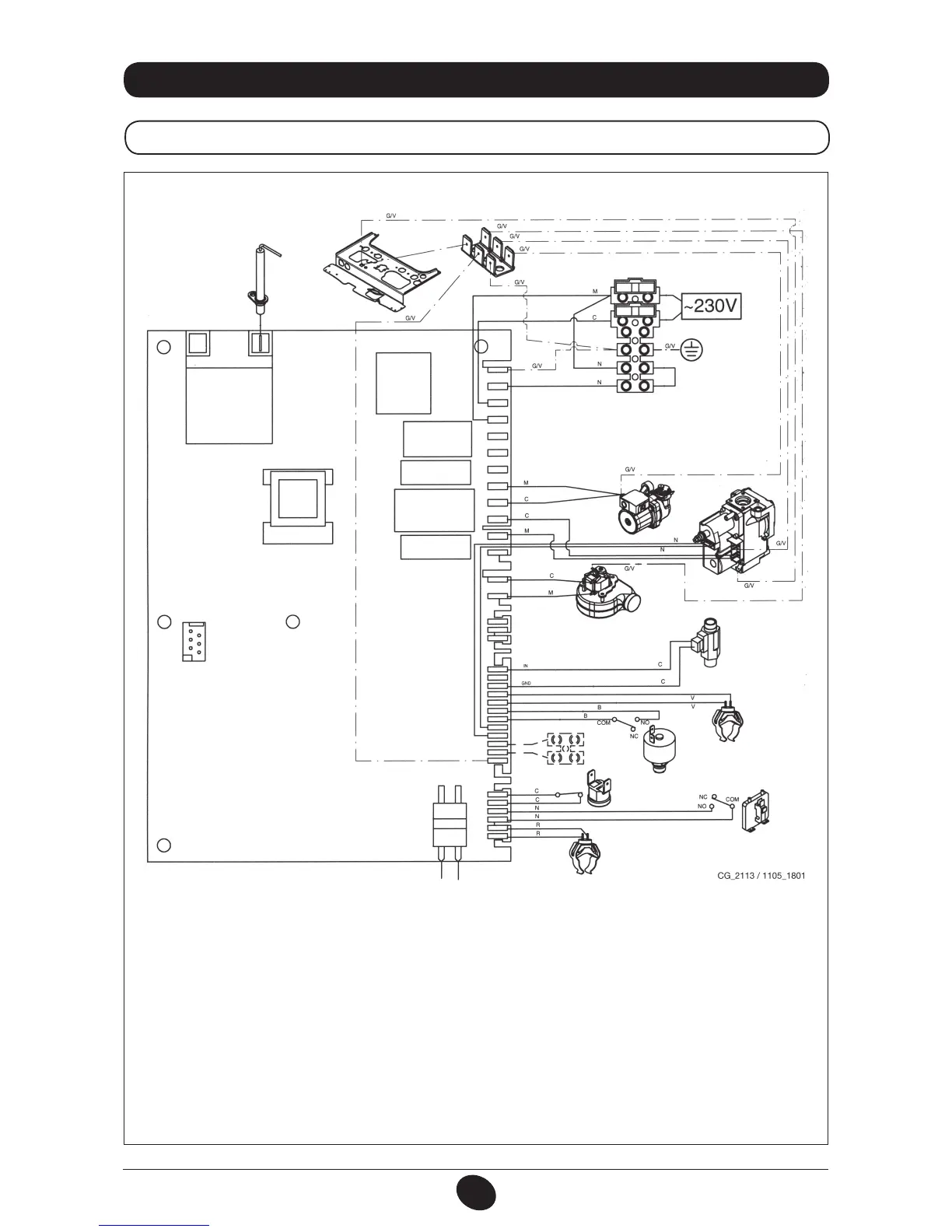

30. WIRING DIAGRAM
24 F
Cable colours
C = Light blue
M = Brown
N = Black
R = Red
G/V = Yellow/Green
B = White
V = Green
DETECTION/IGNITION
ELECTRODE
THERMOSTAT
PUMP
FAN
DOMESTIC WATER
PRIORITY SENSOR
DHW NTC SENSOR
EXTERNAL
PROBE
HYDRAULIC
PRESSURE
SWITCH
SAFETY
THERMOSTAT
AIR PRESSURE
SWITCH
CH NTC SENSOR.
AMB. THERM./REMOTE CONTR
