Dual Element Oval Air Filter

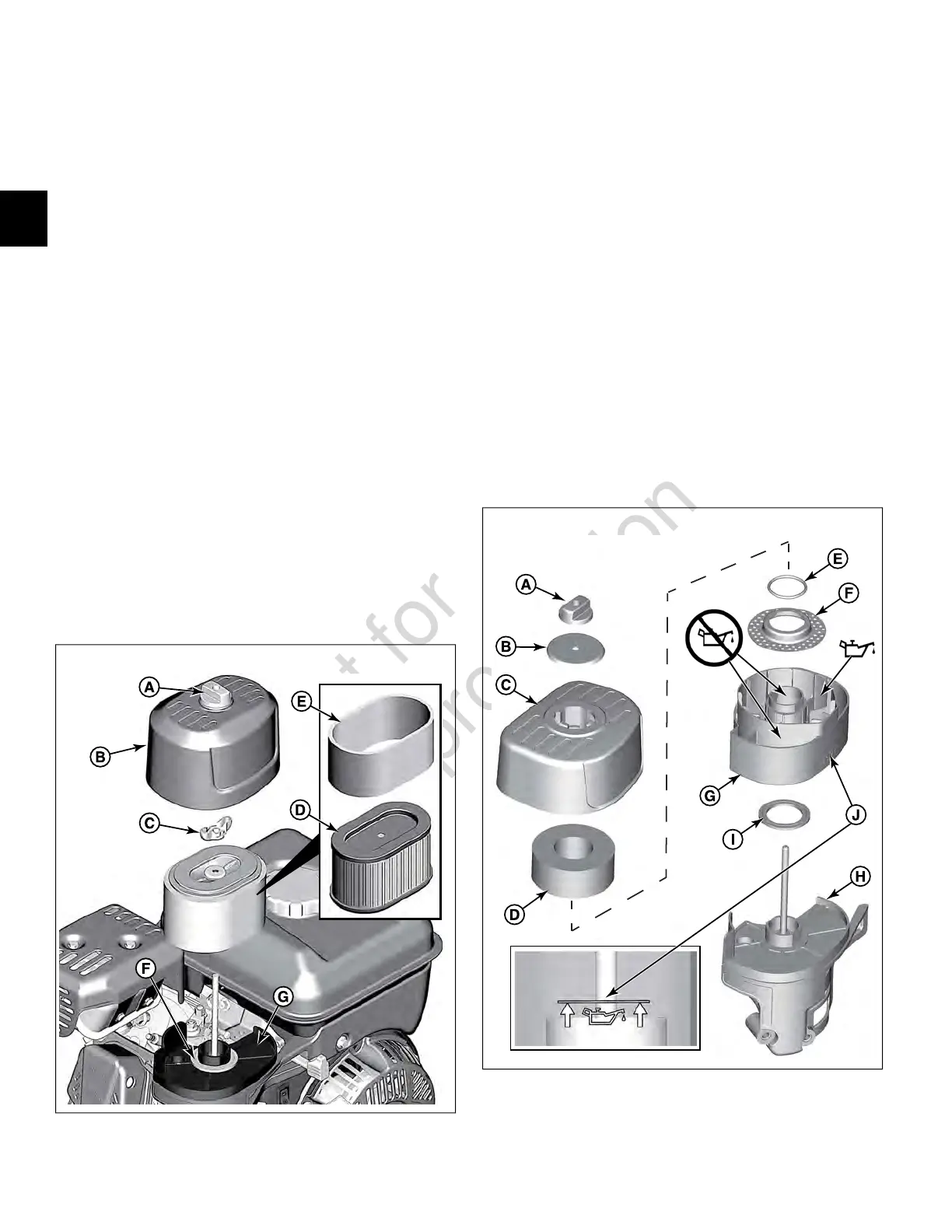

1. See Figure 4. Remove knob (A) to release air cleaner
cover (B).
2. Remove wing nut (C) to release air filter cartridge (D)
with foam pre-cleaner (E).
NOTE: Exercise care to keep dust and dirt out of
carburetor. Inadequate precautions can result in engine
damage.
3. Remove seal washer (F) from air cleaner base (G).
Inspect seal washer for damage or general
deterioration. Replace if necessary.
4. Remove foam pre-cleaner from air filter cartridge.
5. Gently tap air filter cartridge on a hard surface to loosen
dirt and debris. Carefully brush and/or vacuum air filter
cartridge as necessary.
NOTE: Use of pressurized air or solvents will damage
foam pre-cleaner and air filter cartridge.
6. Gently wash foam pre-cleaner in warm, soapy water.
Thoroughly rinse with clean water and allow to air dry
completely.
7. Carefully inspect foam pre-cleaner and air filter
cartridge. Replace parts if they cannot be adequately
cleaned or if any damage is observed.
8. Install foam pre-cleaner onto air filter cartridge.
9. Install seal washer onto air cleaner base.
4
10. Place air filter cartridge with foam pre-cleaner onto air
cleaner base. Install wing nut, but do not over-tighten.
11. Install air cleaner cover. Install knob, but do not
over-tighten.
Oil Bath Air Filter
1. See Figure 5. Remove knob (A) and flat washer (B) to
release air cleaner cover (C).
NOTE: Exercise care to keep dust and dirt out of
carburetor. Inadequate precautions can result in engine
damage.
2. Remove foam filter (D) from air cleaner cover.
3. Gently wash foam filter in warm, soapy water.
Thoroughly rinse with clean water and allow to air dry
completely.
NOTE: Use of pressurized air or solvents will damage
foam filter.
4. Carefully inspect foam filter. Replace if it cannot be
adequately cleaned or if any damage is observed.
5
