Governor Bracket/Lever

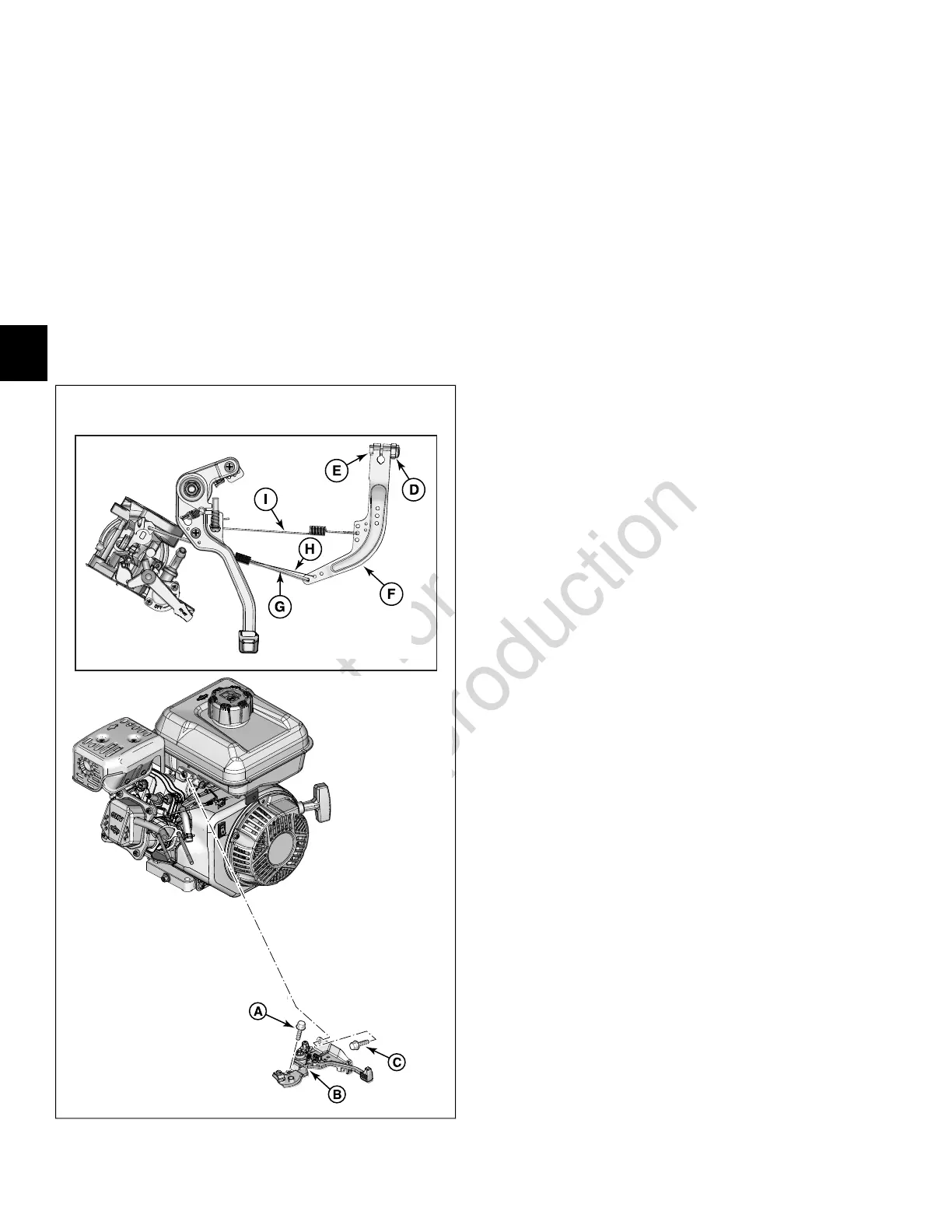

1. See Figure 29. Remove outside hex flange screw (A)
to release governor bracket (B) from crankcase.
2. Remove inside hex flange screw (C) with red wire ring
terminal (stop switch ground) to release governor
bracket from crankcase fuel tank flange.
3. Remove Nyloc nut (D) and flat washer from
square-head screw (E) on governor lever (F). Use a flat
blade screwdriver to pry apart clamp end of governor
lever and remove from governor crank.
NOTE: Clamp end of governor lever is distorted during
installation and removal. Discard governor lever, Nyloc
nut, flat washer, and square-head screw.
29
NOTE: Do not remove spring clip from governor crank
or it will drop into crankcase.
4. Slowly slide carburetor down mounting studs until
governor link (G) is inline with slot in throttle lever.
Remove governor link from hole in throttle lever.
NOTE: Exercise care to avoid bending, kinking, or
stretching link and springs.
5. Remove opposite end of governor link from first hole in
governor lever.
6. Remove governor link spring (H) from hole in throttle
lever.
7. Remove opposite end of governor link spring from
second hole in governor lever.
8. Remove governor spring (I) from eyelet at bottom of
governor bracket.
9. Remove opposite end of governor spring from hole in
governor lever.
NOTE: If different from that shown, mark or take note
of holes from which link and springs are removed to
ensure proper assembly when new governor lever is
installed.
32
4
