Carburetor

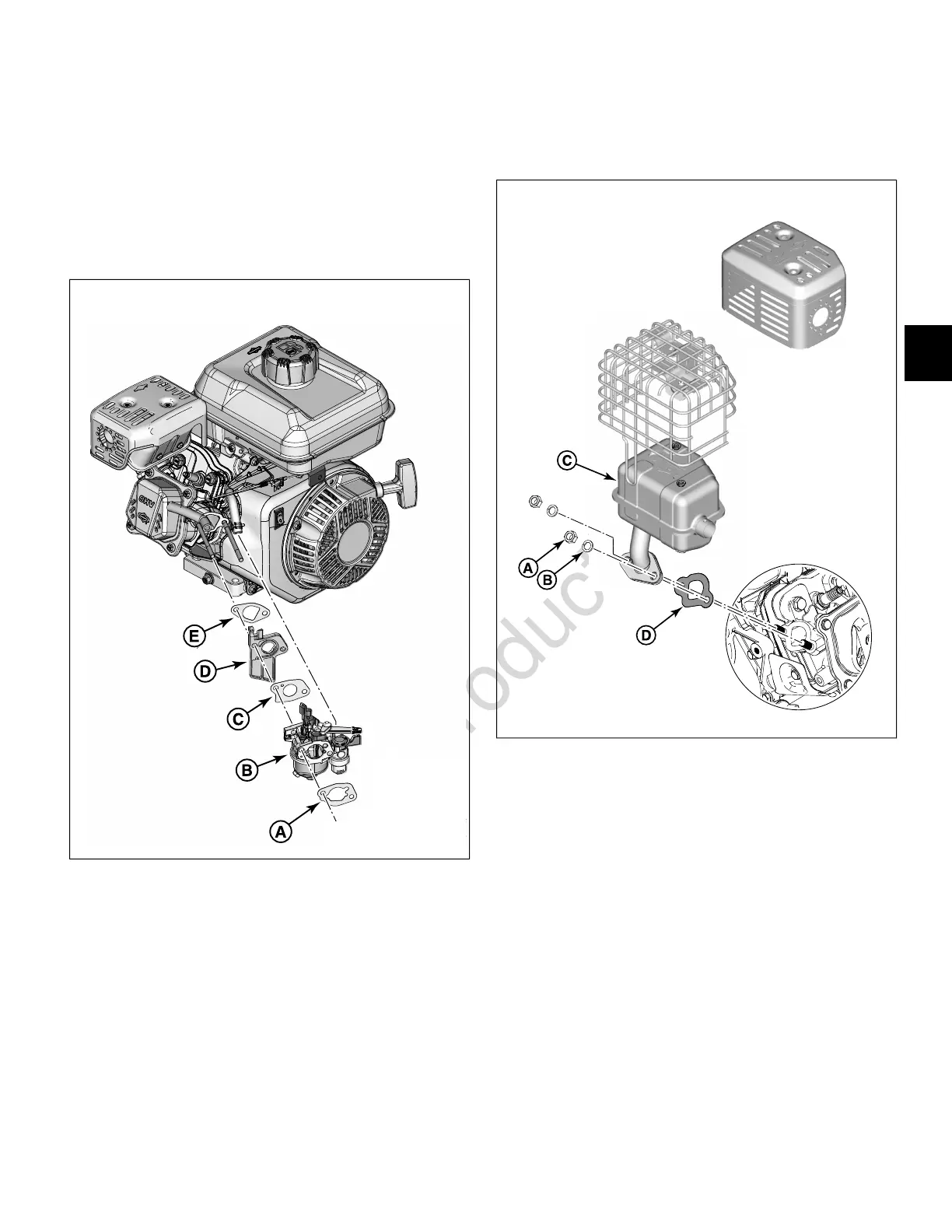

1. See Figure 30. Remove carburetor gasket (A) and
carburetor (B) from carburetor mounting studs. Discard
carburetor gasket.
2. Remove spark plug wire from slot in carburetor adapter.
3. Remove carburetor adapter gasket (C), carburetor
adapter (D), and second carburetor adapter gasket (E)
from mounting studs. Discard carburetor adapter
gaskets.
30
Muffler
1. See Figure 31. Remove two hex nuts (A) with lock
washers (B) to release muffler (C) from studs.
2. Remove and discard gasket (D).
31
Rewind Starter
1. See Figure 32. Remove three hex flange screws (A) to
release rewind starter (B) from blower housing.
NOTE: Note orientation of the rewind starter before
removal. Rewind starter may be installed in the 2
o'clock, 8 o'clock, 10 o'clock, or 12 o'clock positions.
NOTE: While removal of the rewind starter is not
required for removal of the blower housing, it is
recommended for cleaning and inspection purposes.
33
