128

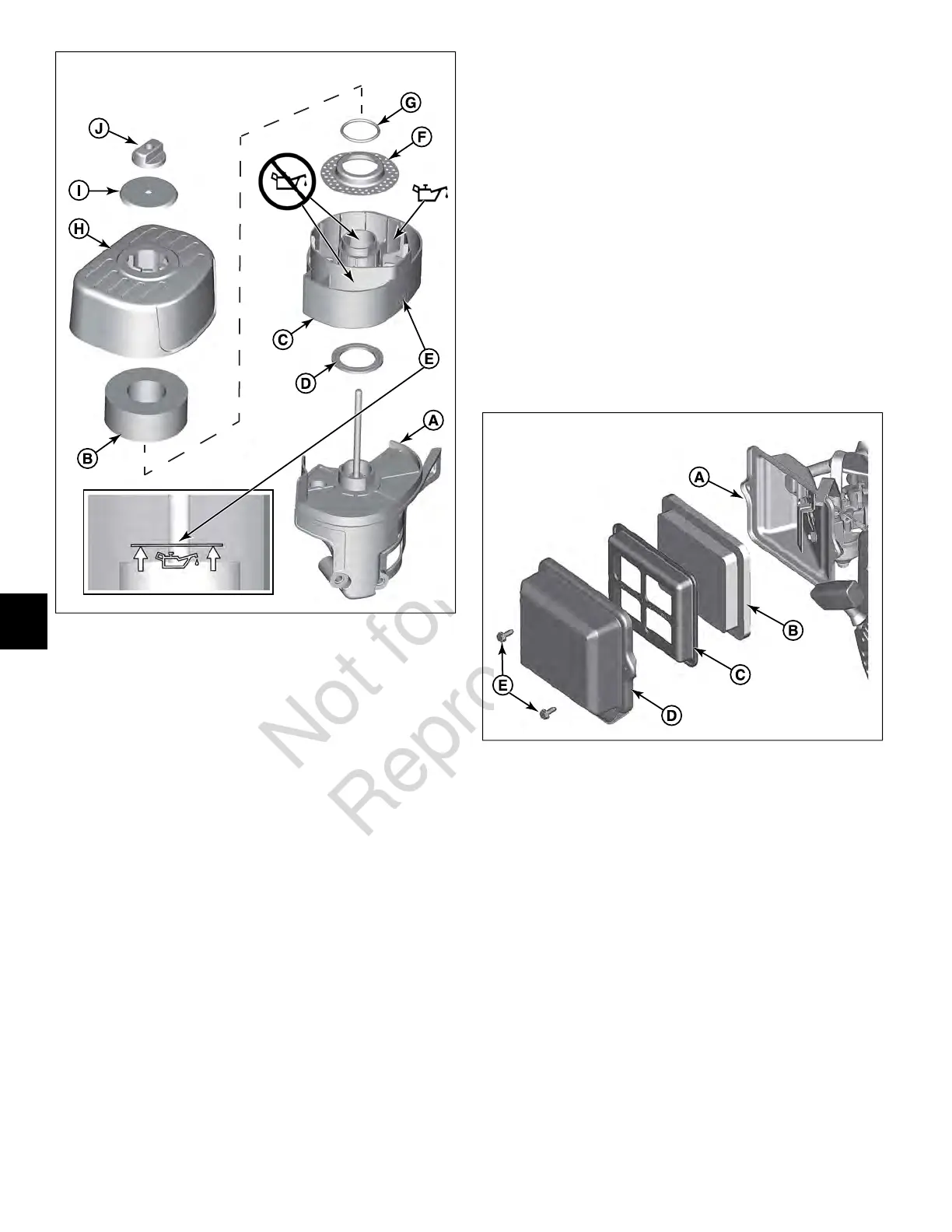

10. Apply a small amount of clean SAE 30 engine oil to

foam filter. Gently squeeze foam filter until engine oil

is evenly distributed. Squeeze foam filter in a clean cloth

to remove excess oil.

11. Wash bath bowl (C) and air cleaner cover in warm,

soapy water. Wipe dry with a clean cloth.

12. Inspect seal washer (D) for damage or general

deterioration. Replace if necessary.

13. Install seal washer and bath bowl onto air cleaner base.

14. Add clean SAE 30 engine oil to bath bowl until level is

even with horizontal line (E). Do not overfill.

15. Install baffle screen (F) and O-ring (G) onto bath bowl.

16. Install foam filter into air cleaner cover.

17. Install air cleaner cover (H).

18. Install flat washer (I) and knob (J), but do not

over-tighten.

Foam Low Mount Air Filter

1. See Figure 129. Install air cleaner base (A) onto

carburetor mounting studs.

2. Install two hex flange nuts onto carburetor mounting

studs. Alternately tighten nuts to 30-50 lb-in (3.4-5.7

N-m).

3. Install breather hose from valve cover to port on air

cleaner base.

4. Gently wash foam filter (B) in warm, soapy water.

Thoroughly rinse with clean water. Squeeze foam filter

in a clean cloth until dry.

NOTE: Use of pressurized air or solvents will damage

foam filter.

5. Carefully inspect foam filter. Replace if it cannot be

adequately cleaned or if any damage is observed.

6. Saturate foam filter with clean engine oil. Gently

squeeze foam filter in a clean cloth to remove excess

oil.

7. Install foam filter and retainer (C) into air cleaner cover

(D).

8. Install air cleaner cover and start two hex flange screws

(E). Tighten screws to 9-12 lb-in (1-1.4 N-m).

129

Foam Large Panel Air Filter

1. See Figure 130. Install air cleaner base (A) onto
