4. Remove bath bowl from air cleaner base (H). Empty
used oil in bath bowl into an approved container.
5. Remove seal washer (I) from air cleaner base.
6. Remove plastic knob from throttle control lever.
7. If equipped, remove hex flange screw to release high
oil fill tube flange from control panel trim.
8. Remove three hex flange screws to release control
panel trim from fuel tank. Disengage control panel trim
from slot in air cleaner base.
9. Remove breather hose from port on air cleaner base.
10. Remove top hex flange screw to release air cleaner
base from governor bracket.
11. Remove two hex flange nuts to release air cleaner base
from carburetor mounting studs.

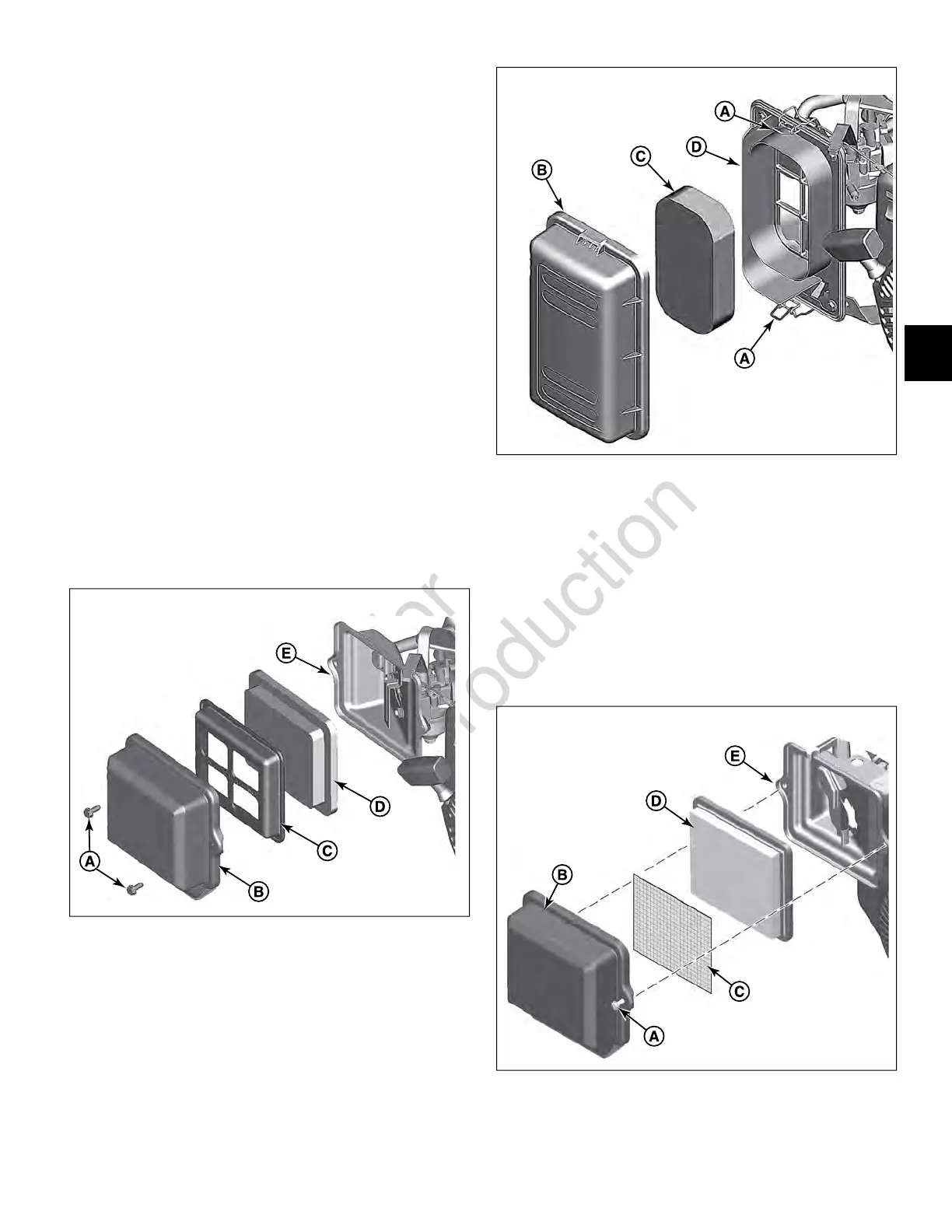

Foam Low Mount Air Filter
1. See Figure 23. Remove two hex flange screws (A) to
release air cleaner cover (B).
2. Remove retainer (C) and foam filter (D) from air cleaner
cover.
3. Remove two hex flange nuts to release air cleaner base
(E) from carburetor mounting studs.
4. Remove breather hose from port on air cleaner base.
23
Foam Large Panel Air Filter
1. See Figure 24. Disengage two retaining clips (A) to
release air cleaner cover (B) and foam filter (C).
2. Remove two hex flange nuts to release air cleaner base
(D) from carburetor mounting studs.
3. Remove breather hose from port on air cleaner base.
24
Paper Air Filter
1. See Figure 25. Loosen two hex flange screws (A) to
release air cleaner cover (B).
2. Remove pre-cleaner (C), if equipped, and foam filter
(D).
3. Remove two hex flange nuts to release air cleaner base
(E) from carburetor mounting studs.
4. Remove breather hose from port on air cleaner base.
25
