115
5. Insert end of new rope through pulley hole and rope
eyelet in housing.
NOTE: For ease of installation and also to prevent
fraying, either melt the rope ends or use a suitable rope
whipping compound.

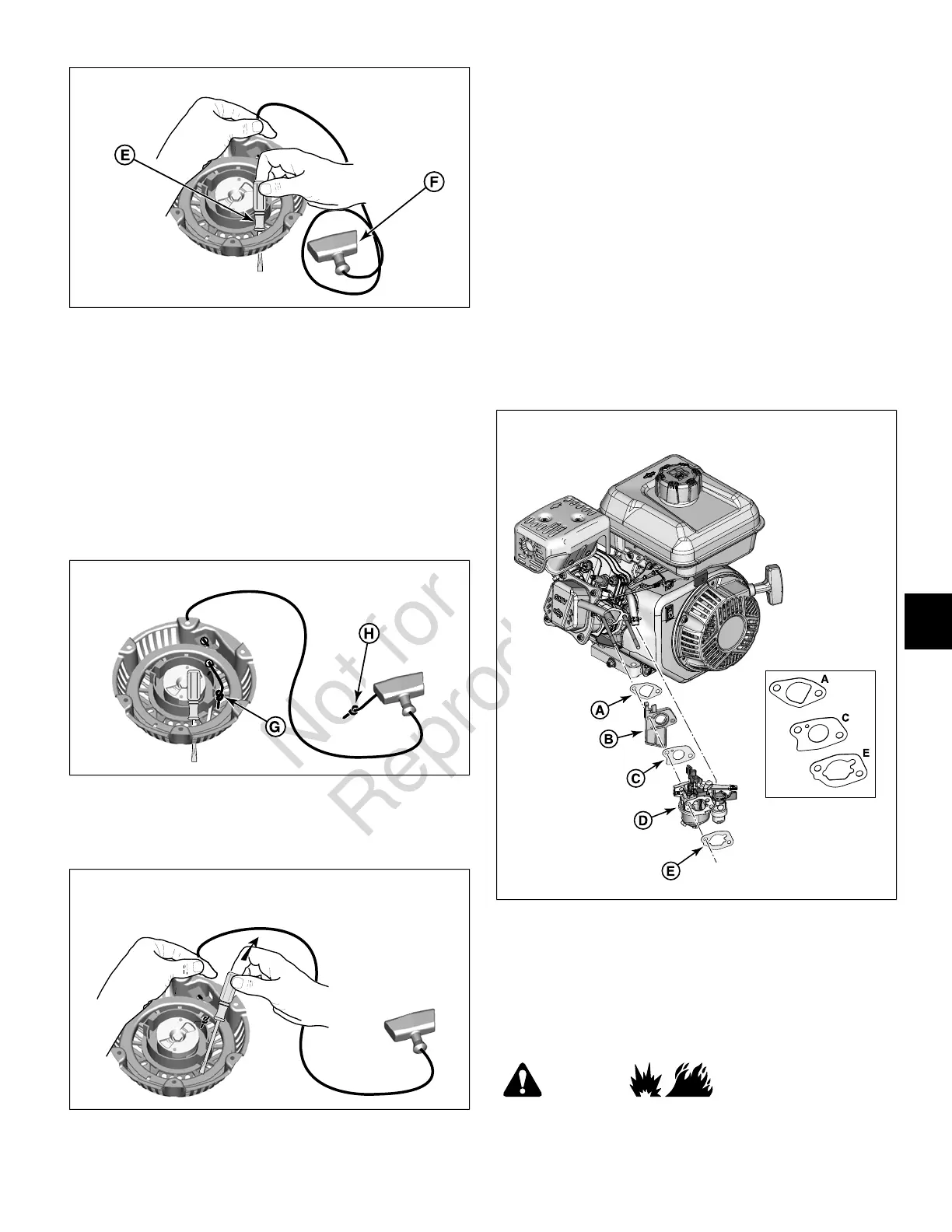

6. See Figure 116. Tie a knot at end of rope on pulley hole
side (G). Fit knot into pulley recess.
7. Insert opposite end of rope into handle and tie a knot
(H). Fit knot into opening of handle.
116
8. See Figure 117. Remove screwdriver while firmly
holding onto rope. Allow pulley to slowly rewind rope.
117
Carburetor
NOTE: See
Overhaul Carburetor
for disassembly, cleaning,
inspection, and assembly instructions.
1. See Figure 118. Install carburetor adapter gasket (A),
carburetor adapter (B), and second carburetor adapter
gasket (C) onto carburetor mounting studs. Always use
new carburetor adapter gaskets.
2. Capture spark plug wire in slot of carburetor adapter.
3. Install carburetor (D) and new carburetor gasket (E)
onto carburetor mounting studs.
4. If removed, install hose with clamp onto carburetor fuel
inlet fitting.
5. Squeeze tangs and move hose clamp about 1/8 inch
(3 mm) from end of hose with tangs pointing upward
for best access.
118
Overhaul Carburetor
Disassembly
NOTE: Consult the
Illustrated Parts List
to obtain the correct
carburetor overhaul kit.
WARNING
Gasoline is extremely flammable and highly explosive.
Inadequate safety precautions can result in death or
79
8
