Starter Motor (If Equipped)

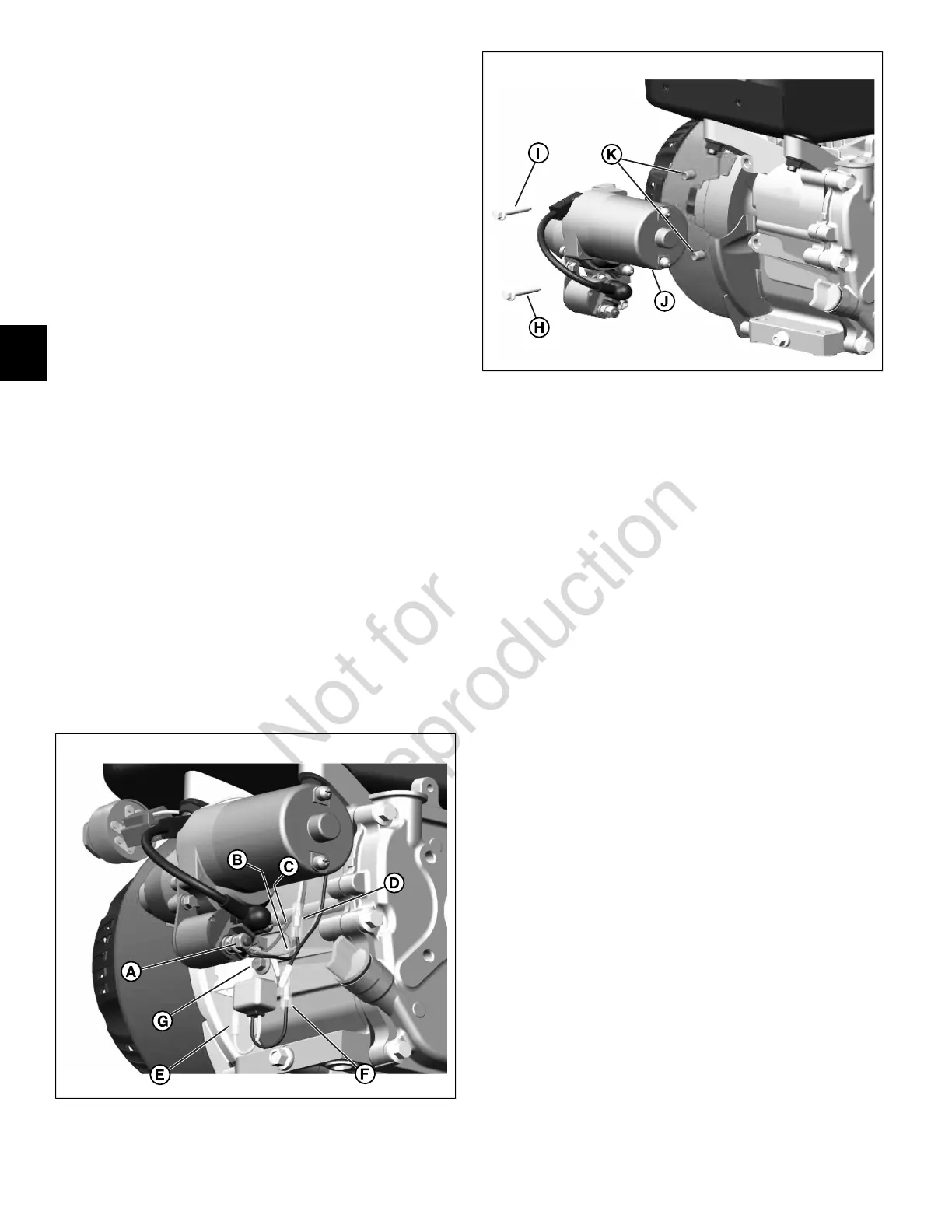

1. See Figure 26. Remove hex nut , lock washer, and flat
washer (A) from starter solenoid post.
2. Remove orange key switch wire ring terminal (B) from
starter solenoid post.
3. If stator wires terminate in a ring terminal, move to step
4. If stator wires terminate in a 2-place jumper wire
connector, proceed as follows:
NOTE: Ring terminal supersedes 2-place jumper wire
connector on late model engines.
A. Disconnect 2-place jumper wire connector between
stator and starter solenoid post.
B. Remove red jumper wire (C) ring terminal and flat
washer from starter solenoid post.
C. Remove extra length of jumper wire from behind
starter motor.
D. Move to step 5.
4. Remove red stator wire (C) ring terminal and flat washer
from starter solenoid post.
5. Disconnect yellow key switch wire terminal from starter
solenoid black wire terminal (D).
6. If equipped, remove low oil sensor module as follows:
A. Disconnect one-place wire connector (E) between
oil sensor and oil sensor module.
B. Disconnect one-place wire connector (F) between
oil sensor module and key switch spade contact.
C. Remove hex flange screw (G) to release oil sensor
module bracket from flywheel guard.
26
27
7. See Figure 27. Remove bottom starter motor screw (H)
from crankcase.
8. Remove top starter motor screw (I) to release starter
motor (J) and brown key switch ground wire ring
terminal from crankcase.
9. Remove locating pins (K) from holes in crankcase.
10. Remove spade terminal and connector from key switch
to release trim panel.
30
4
