Fuel Tank

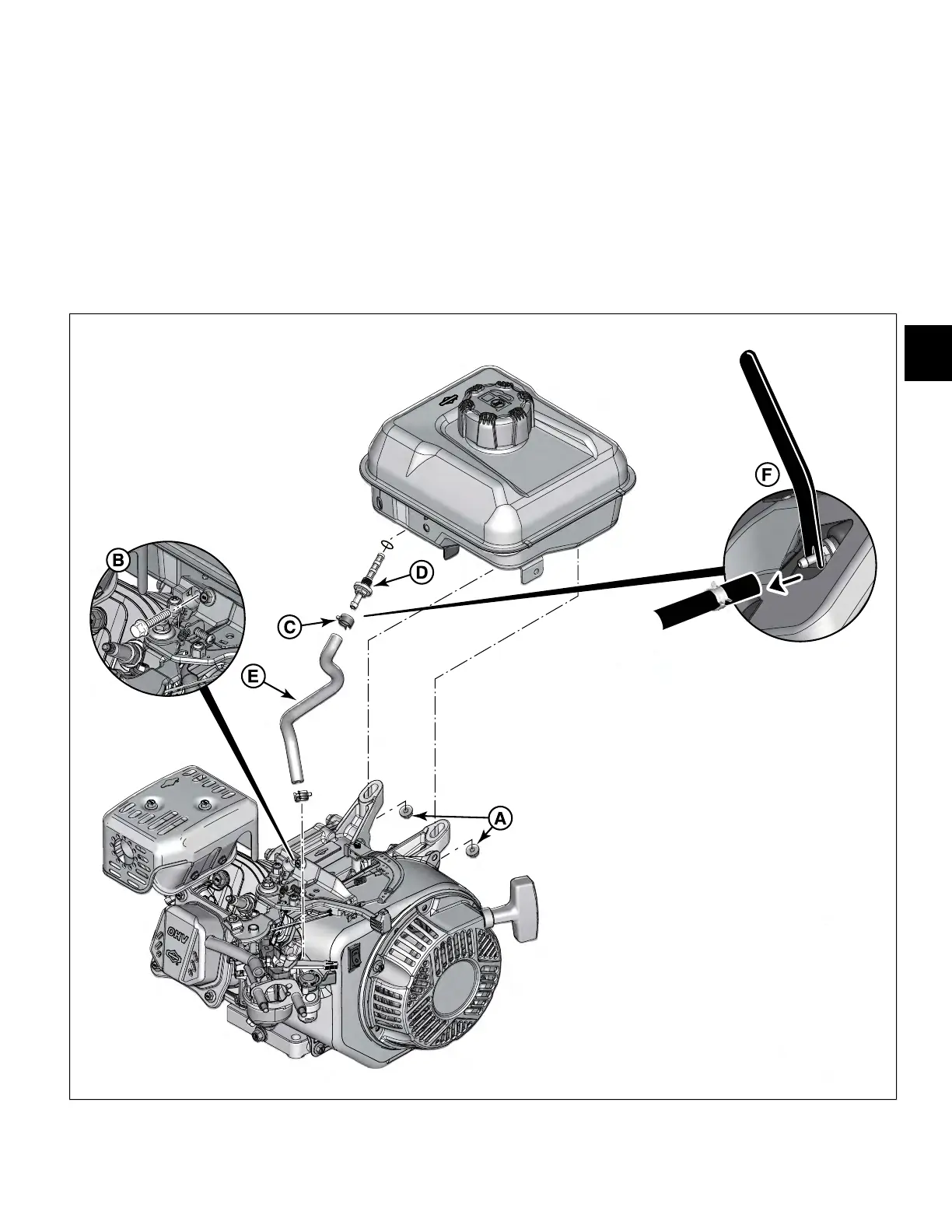

1. See Figure 28. Remove two hex flange nuts (A) from
fuel tank studs.
2. On opposite side of fuel tank, remove hex flange screw
(B) to release fuel tank from crankcase flange.
NOTE: For best access to screw, move throttle control
lever left to the FAST position and use a 8 mm socket
with extension.
NOTE: Exercise care to avoid dropping screw between
engine and blower housing. A dropped screw may be
caught by the flywheel magnet where further
disassembly would be required to retrieve it.
3. Squeeze tangs and move hose clamp (C) away from
fuel tank (or in-tank fuel filter) fitting (D).
4. Remove hose (E) from fitting. For best results, use Fuel
Hose Remover (Part No. 19620) (F).
