Canon EOS C300 - Grip Unit; Handle Unit

21
Names of Parts

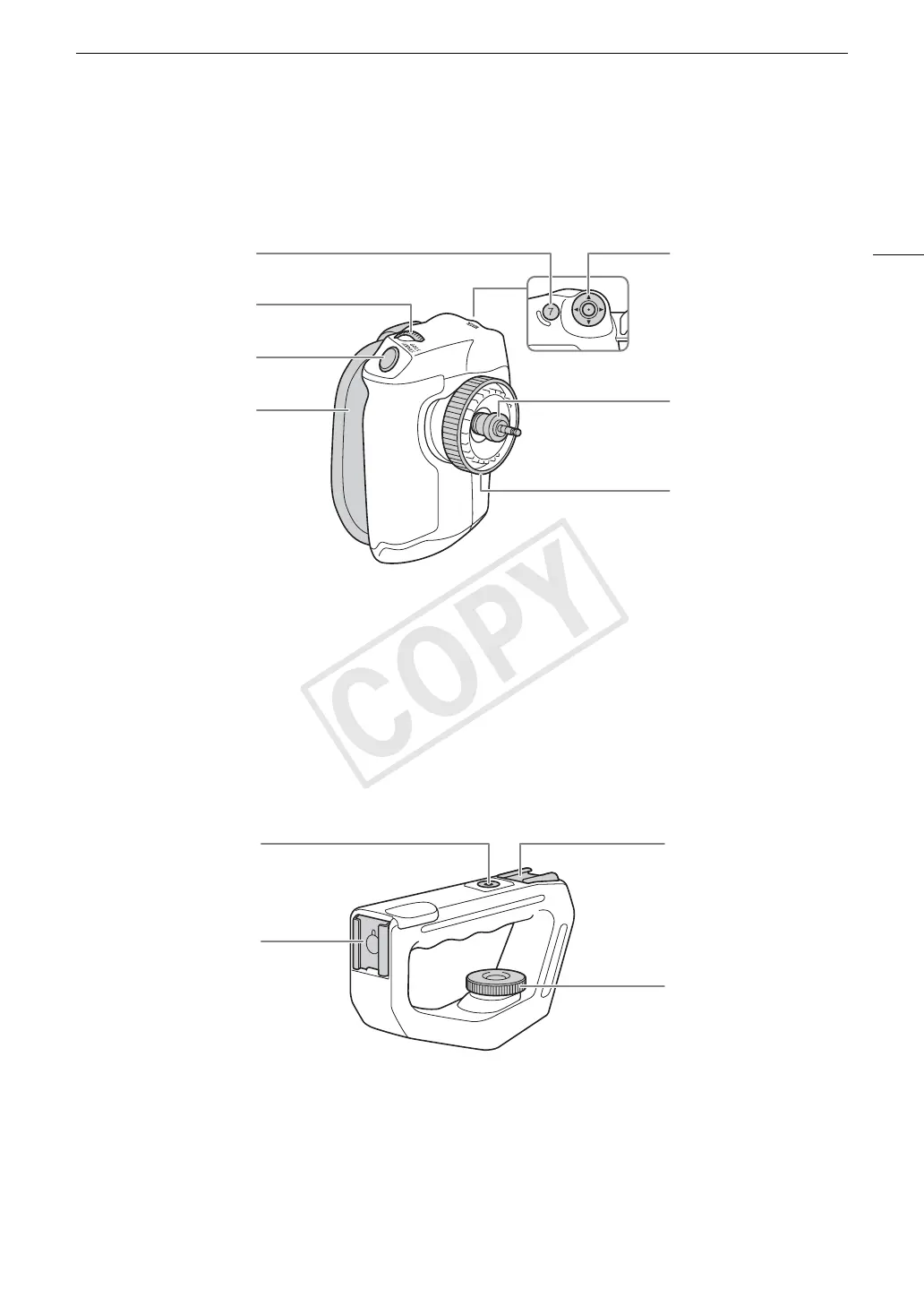

Grip Unit
Handle Unit
5
6
7
1
2
3
4
1 MAGN. (magnification) button (A 79)/
Assignable button 7 (A 111)
2Control dial (A 66, 69)
3START/STOP button (A 51)
4 Grip belt (A 41)
5Joystick (A 29)/SET button (A 29)
6 Connection plug (A 40)
7Lock screw (A 40)
31
2
4
1 Mounting hole for 0.64 cm (1/4 in.) screws
2 Front accessory shoe
3 Top accessory shoe
4Lock screw (A 41)
