Canon Laser Shot LBP5000 User Manual

6-26
Optional Accessories
6
Network Board
12 Make sure that the LNK indicator (green) on the network
board is on.
If the network board is connected by 10BASE-T, the board is working properly
when the LNK indicator is on.
If the network board is connected by 100BASE-TX, the board is working properly
when the LNK indicator and 100 indicator are on.

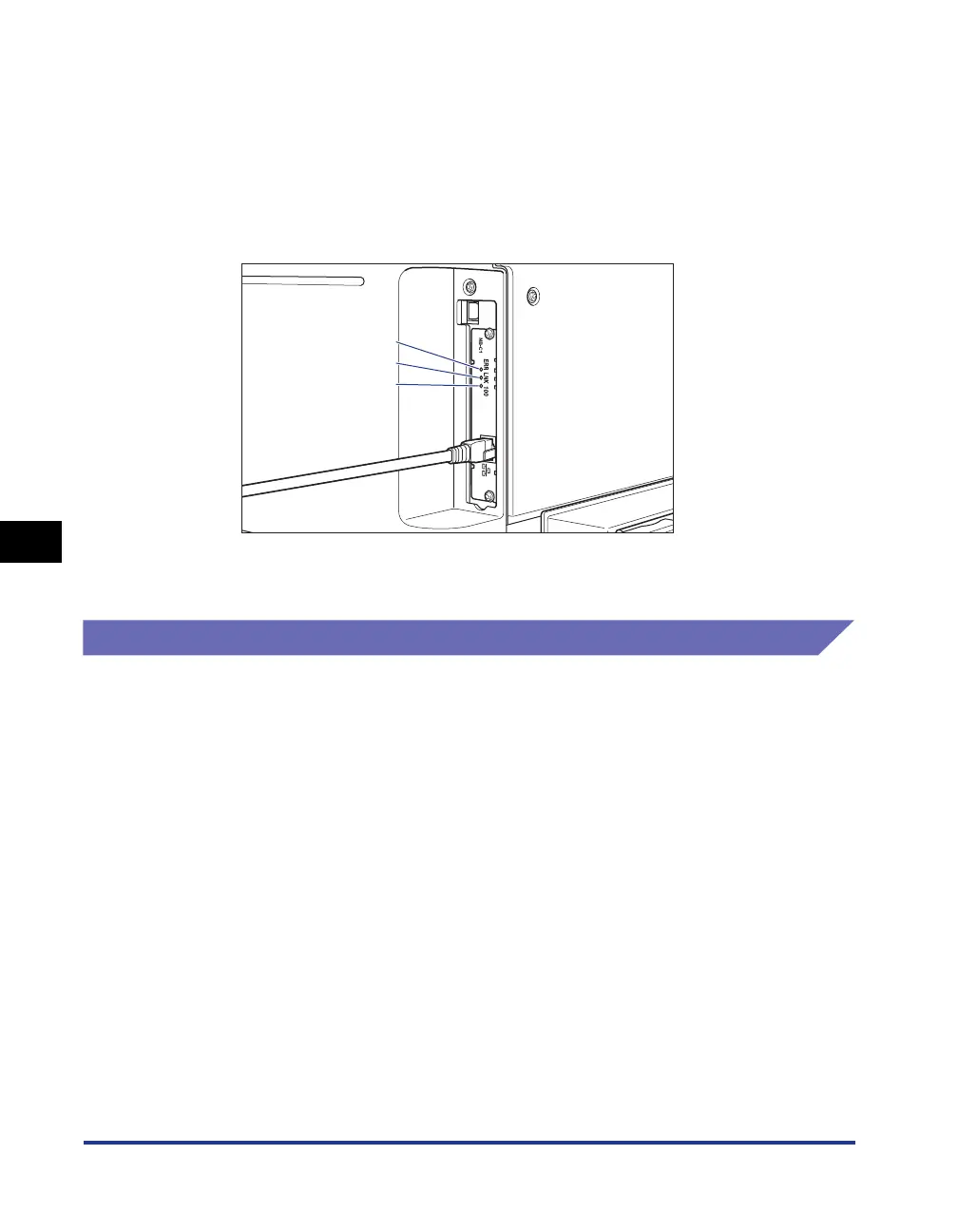

((A): ERR Indicator (B): LNK Indicator (C): 100 Indicator)
If the network board is not working properly, turn the printer OFF, and then check
the LAN cable connection, hub performance, and network board installation.
Setting the Network Board
The default value of the network board is set at "Auto detect". Usually, you do not
need to change the setting, since the transmission speed and transfer mode of
10BASE-T/100BASE-TX are detected automatically. If the printer cannot
communicate with other devices on the network, set the DIP switches on the
network board. Before setting the DIP switches, turn the printer OFF, then remove
the network board. A Phillips screwdriver is required for removing the network
board. Have a screwdriver ready in advance that matches the size of the screws.
Set the DIP switches according to the transmission speed of the connected network
as follows.
(A)
(B)
(C)

Canon Laser Shot LBP5000 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (color, normal)	20 s
Print speed (black, normal quality, A4/US Letter)	8 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	125 sheets
Maximum input capacity	500 sheets
Envelopes sizes	B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	-
Power requirements	220 - 240V
Supported media weight(s)	60 - 163 g/m²
Compatible operating systems	Windows 98/Me/2000/XP/Server2003 Mac OS X version 10.2.8 -10.5.x Linux
Power consumption (standby)	18 W
Power consumption (printing)	207 W
Maximum duty cycle	35000 pages per month
Operating temperature (T-T)	10 - 30 °C
Sustainability certificates	ENERGY STAR
