Canon Laser Shot LBP5000 User Manual

6-33
Optional Accessories
6
Network Board

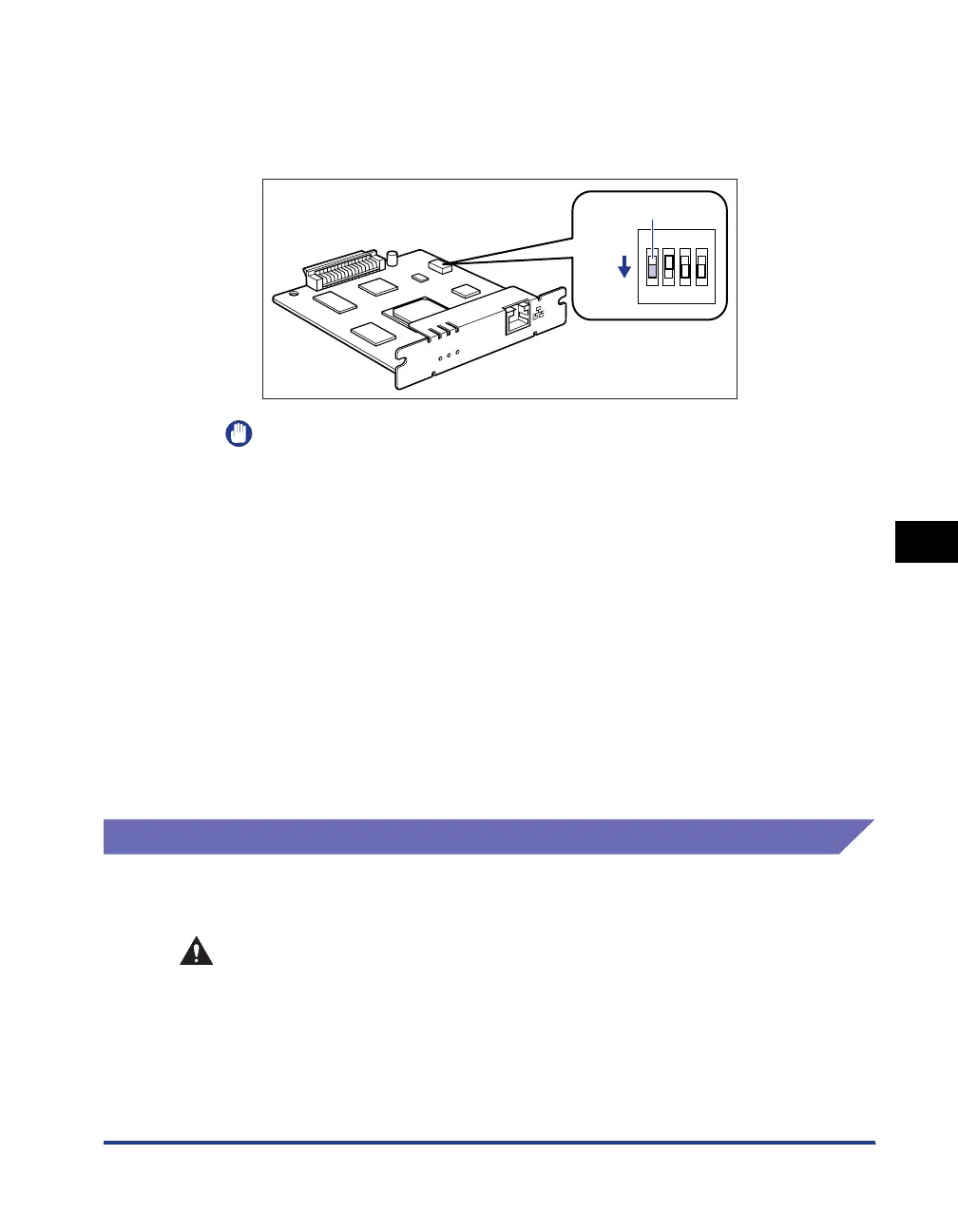

12 Remove the network board, then reset the DIP switch 1 to
OFF.
Set the DIP switches with the tip of a ball-point pen etc.
IMPORTANT
When setting the DIP switches, be careful not to damage the main board with the
tip of a ball-point pen etc. Do not use a sharp object such as a mechanical pencil.
13 Install the network board.
14 Connect the interface cables except for the USB cable, and
connect the power cord.
15 Plug the power plug into the AC power outlet.
16 Connect the USB cable as needed.
Removing the Network Board
Remove the network board using the following procedure. Have ready the protective
plate and screws for the expansion slot removed when the network board was installed.
CAUTION
• Be sure to turn the printer and computer OFF and disconnect all the interface
cables and power cord from the printer before removing the network board. If a
USB cable is connected, turn the computer off, and then remove the USB cable.
If you attempt to remove the network board when the printer is ON or any cable
is connected to the printer, this may result in an electrical shock.
• Be careful when handling the network board. Touching the edges or a sharp
portion of the network board may result in personal injury.
ERR LNK 100
NB-C1
OFF
OFF
1234
DIP switch 1

Canon Laser Shot LBP5000 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (color, normal)	20 s
Print speed (black, normal quality, A4/US Letter)	8 ppm
Internal memory	8 MB
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	125 sheets
Maximum input capacity	500 sheets
Envelopes sizes	B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	-
Power requirements	220 - 240V
Supported media weight(s)	60 - 163 g/m²
Compatible operating systems	Windows 98/Me/2000/XP/Server2003 Mac OS X version 10.2.8 -10.5.x Linux
Power consumption (standby)	18 W
Power consumption (printing)	207 W
Maximum duty cycle	35000 pages per month
Operating temperature (T-T)	10 - 30 °C
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	407 x 365 x 374 mm
