RM23712 TPS

POST Error Beep Codes

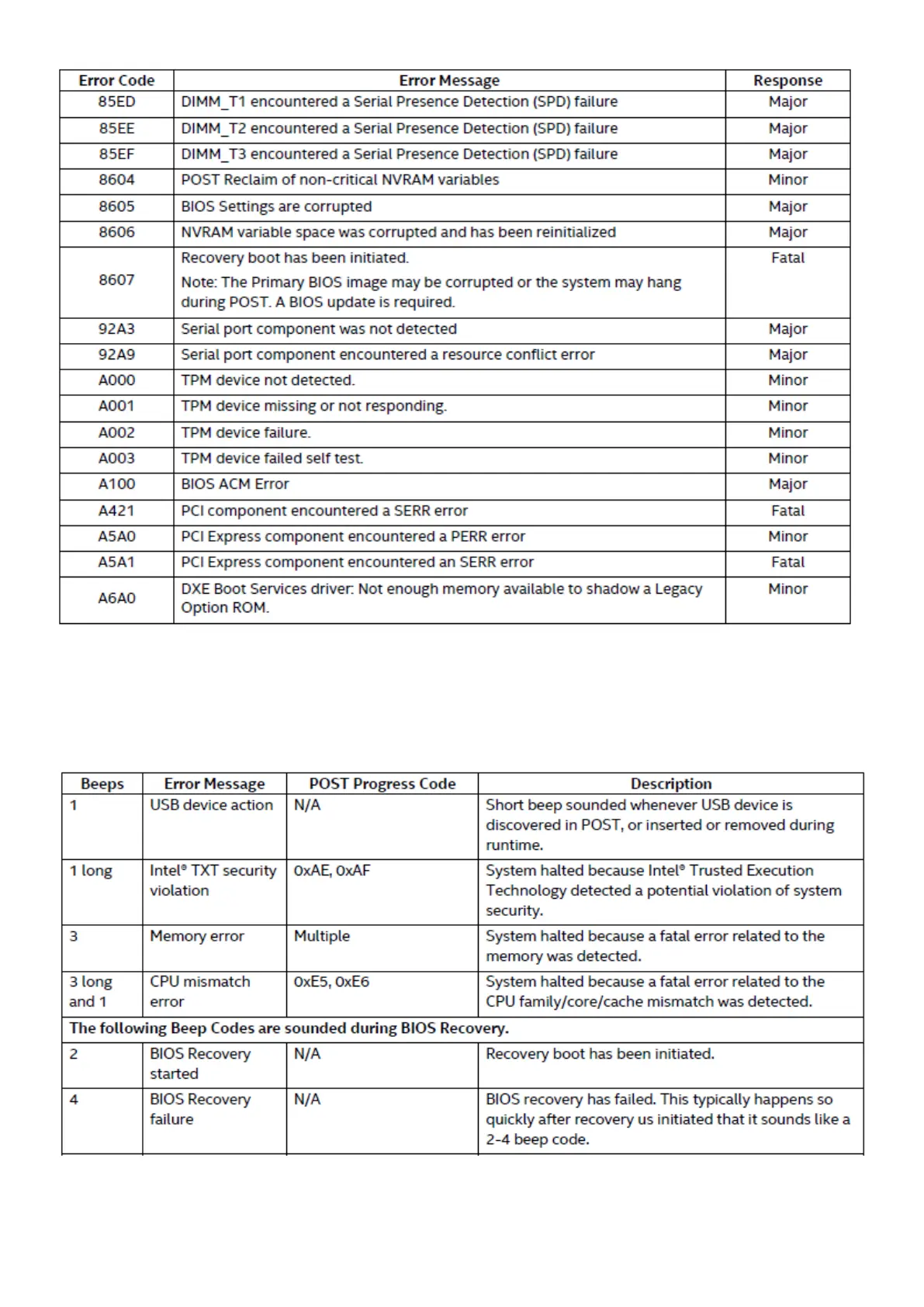

The following table lists the POST error beep codes. Prior to system video initialization, the BIOS

uses these beep codes to inform users on error conditions. The beep code is followed by a

user-visible code on the POST Progress LEDs.

Table 59.POST Error Beep Codes

The Integrated BMC may generate beep codes upon detection of failure conditions. Beep codes

are sounded each time the problem is discovered, such as on each power-up attempt, but are not

sounded continuously. Codes that are common across all Intel server boards and systems that use

Default Chapter5
