Chenbro RM23712 User Manual

RM23712 TPS
57
Specification
Host Interface
Mini SAS HD
HDD Interface
SAS
Hot-Swap
Yes, allows user to on line replace Hard Disk Drive
Display
LED indicates Hard Disk Drive status
Power LED – Blue (When HDD is present)
Access LED – Green (When HDD is busy)
Error LED – Red (When HDD is error)
Cooling
Four Fan connector
Environment Monitor
Temperature senor detect(TEMP1,TEMP2)
Connectors
1.SAS29P *12
2.Mini-SAS HD Connector for Raid card or Table Link *2
3.ATX 8P Power connector *2 for +12V from power supply
4. PIN Header 2.54mm (1x4) *1, (2x3) *1
5. Wafer 2.54mm Connector 2P *2
6. Wafer 2.5mm Connector 4P *1
Dimension
432.0(L) x 81.0(W) x 2.4(H) mm
Material
FR4 8 layer

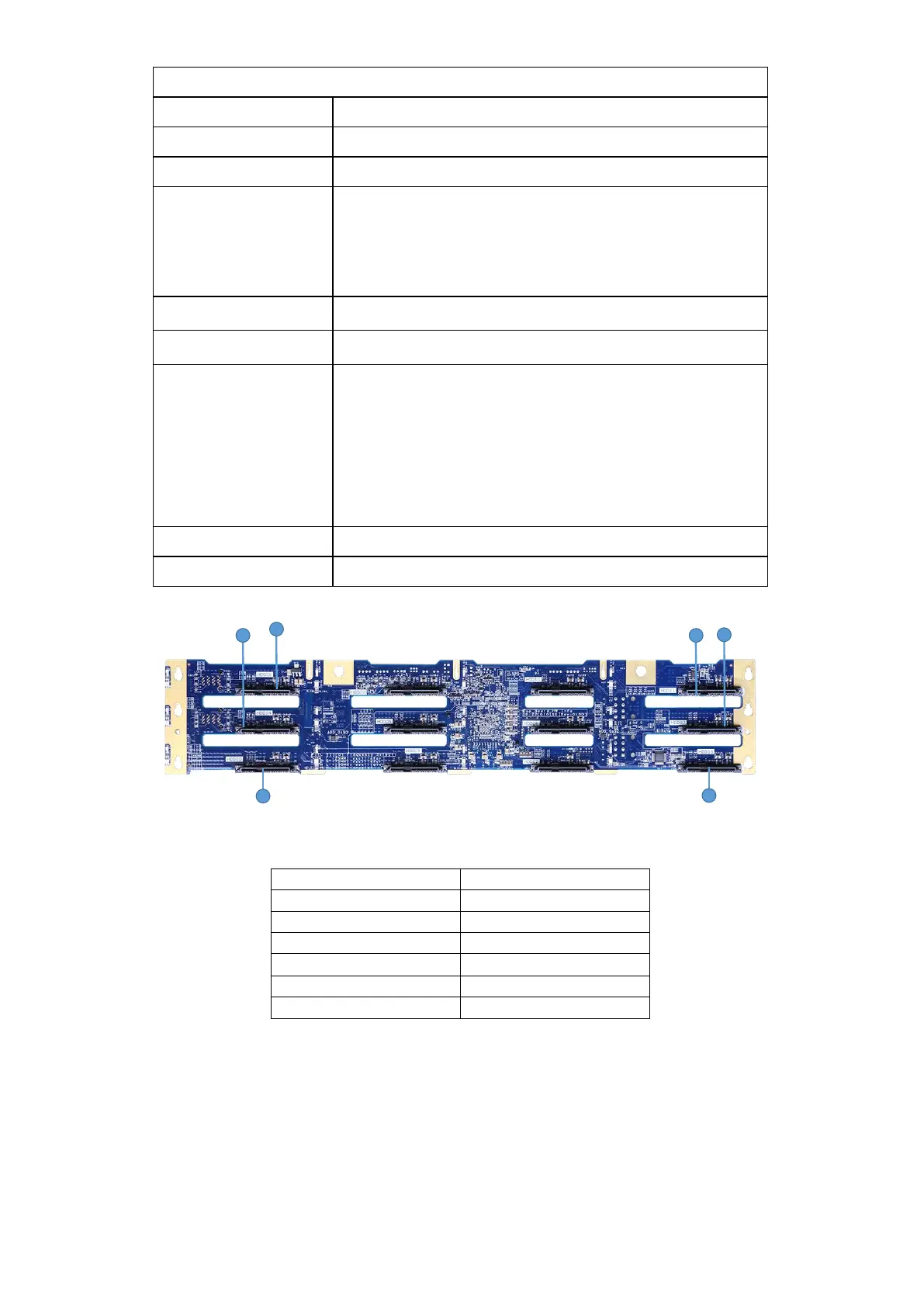

Figure 35. 12G Mini SAS HD 12 Port Backplane– front view
Label
Description
A
HDD_0
B
HDD_3
C
HDD_4
D
HDD_7
E
HDD_8
F
HDD_11
On the backside of the backplane are several connectors. The following illustration identifies each.
A
B
C
D
E
F
