8. Intel
®
I/O Module Support
To broaden the standard on-board feature set, the server board provides support for one of several
available Intel® I/O Module options. The I/O module attaches to a high density 80-pin connector on
the server board (labeled “IO_Module”) and is supported by x8 PCIe Gen3 signals from the IIO
module of the CPU 1 processor.

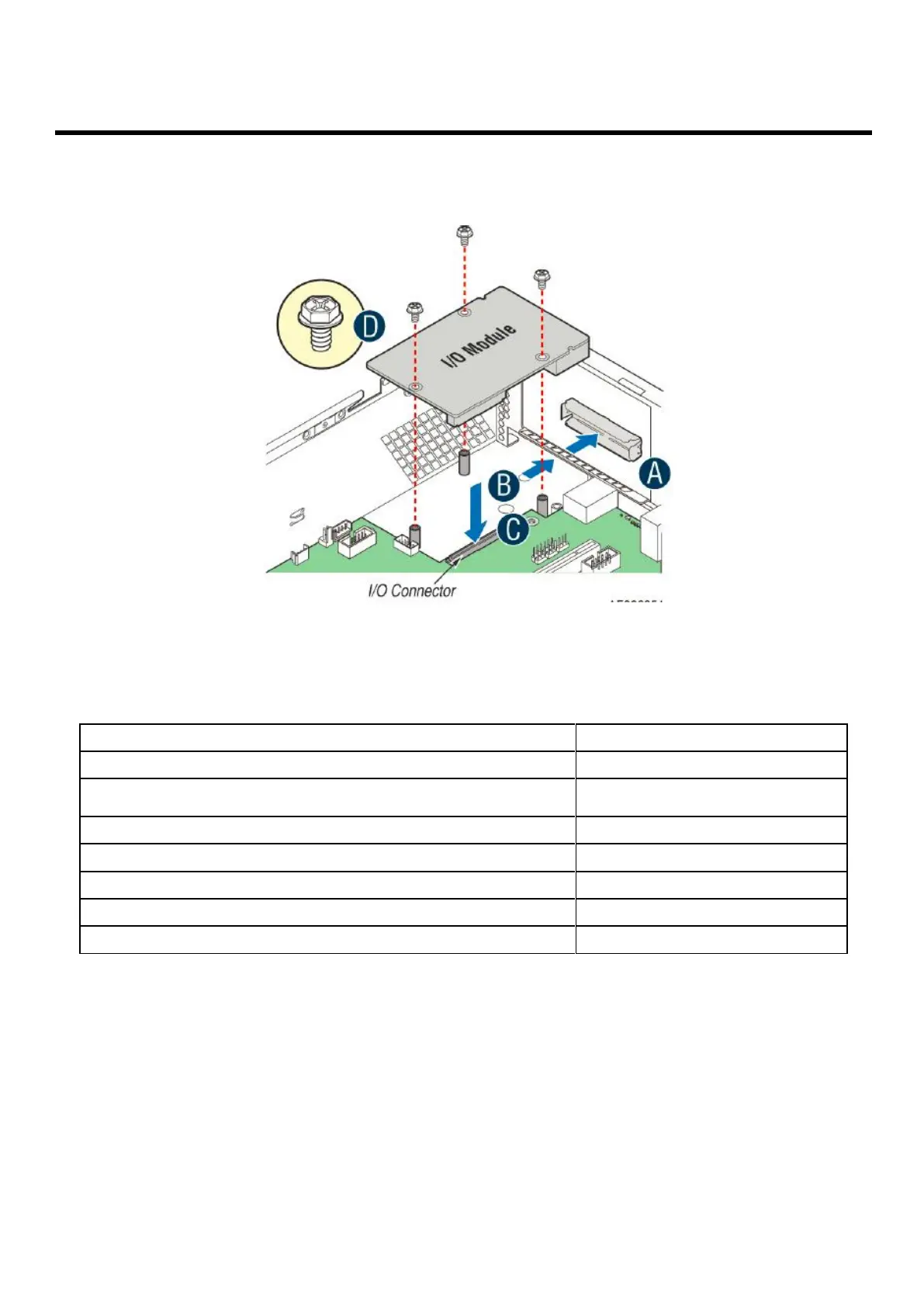

Figure 52. Intel ® I/O Module Placement
Supported I/O modules include:
Table 51. Supported Intel® I/O Modules
Description
Intel Product Code
Quad port RJ45 1 GbEbased on Intel®Ethernet Controller I350
Intel®I/O Module AXX4P1GBPWLIOM
Dual port RJ-45 10GBase-T I/O Module based on
Intel®Ethernet Controller x540
Intel®I/O Module AXX10GBTWLIOM3
Dual port SFP+ 10 GbEmodule based on Intel®82599 10 GbEcontroller
Intel®I/O Module AXX10GBNIAIOM
Single port QSFP FDR56 GT/S speed InfiniBand* module
Intel®I/O Module AXX1FDRIBIOM
Dual port QSFP FDR56 GT/S speed infiniband* module
Intel®I/O Module AXX2FDRIBIOM
Single port QSFP+ 40 GbEmodule
Intel®I/O Module AXX1P40FRTIOM
Dual port QSFP+ 40 GbEmodule
Intel®I/O Module AXX2P40FRTIOM
