Chenbro RM23712 User Manual

RM23712 TPS
65
P10
GND
GND
GND
P11
NC
NC
NC
P12
GND
GND
GND
P13
12V
Pre-Charge
Input
Pre-charge +12V
P14
12V
Power
Power +12V
P15
12V
Power
Power +12V
5.7 Low Profile eUSB SSD Support
The system provides support for a low profile eUSB SSD storage device. A 2mm 2x5-pin connector
labeled “eUSB SSD” near the rear I/O section of the server board is used to plug this small flash
storage device into.

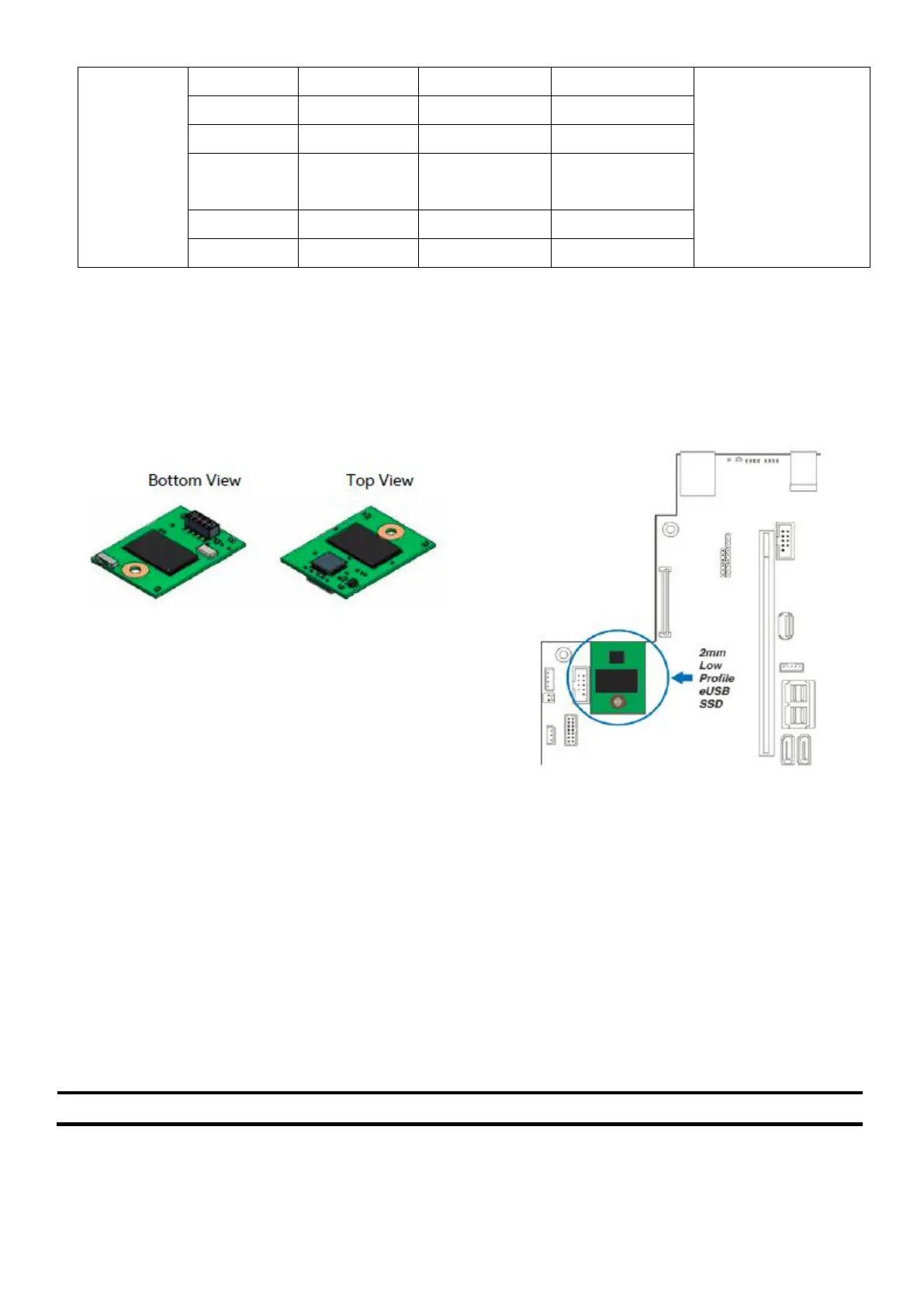

Figure 40.Low Profile eUSB SSD
Support eUSB features include:
 2 wire small form factor Universal Serial Bus 2.0 (Hi-Speed USB) interface to host
 Read Speed up to 35 MB/s and write Speed up to 24 MB/s
 Capacity range from 256 MB to 32 GB
 Support USB Mass Storage Class requirements for Boot capability
5.8 SATA DOM Support
The system has support for up to two vertical low profile Disk-on-Module (DOM) devices.
Supported SATADOMs for this server board include those from Apacer* or Innodisk*.
Note: In this server system, SATADOMs from Innodisk* must have firmware version S130710 or later.
