RM23712 TPS
15
3. System Power
This chapter provides a high level overview of the features and functions related to system power.
3.1 General Description And Scope
This is the specification of Model FSP800-20ERM;
The specification below is intended to describe as detailedly as possible the functions and
performance of the subject power supply. Any comment or additional requirements to this
specification from our customers will be highly appreciated and treated as a new target for us to
approach.

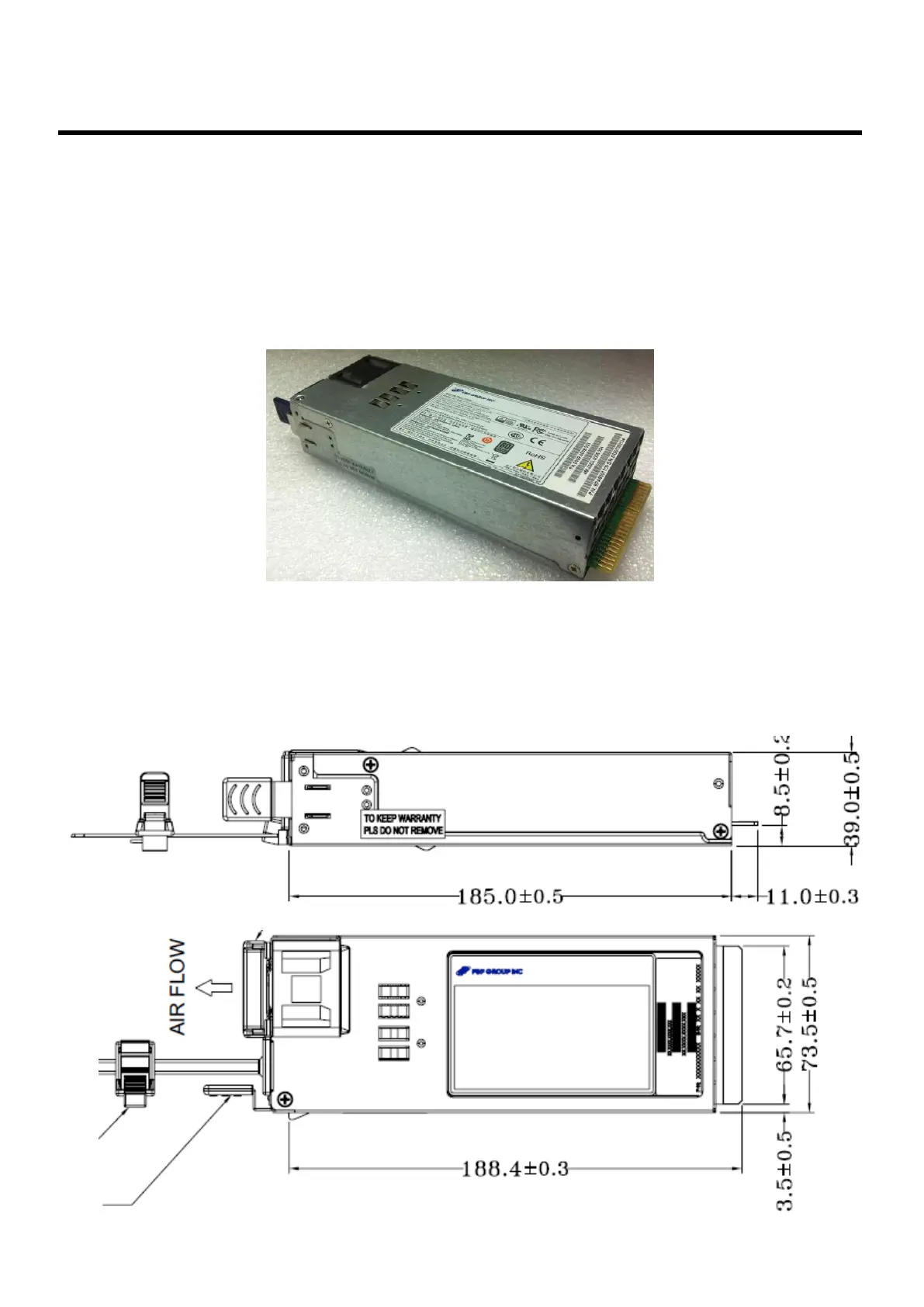

Figure 13. 800W AC Fixed Power Supply
3.1.1 Power Supply Module Mechanical Overview
The physical size of the power supply enclosure is intended to accommodate the power range of up
to 800W.The physical size is 39/40mm x 73.5mm x 185mm (height x width x length).
