RM23712 TPS
62
Table 45.SW Function Setting
5.6 2 x 2.5’’ Hot Swap Drive Bay Accessory Kit
Chenbro Accessory Kit Product Code: 83H803237-005
The 2U product family provides the option to support two 6 Gb/sec hot swap SATA SSDs installed
to a modular drive bay mounted in the back of the system.

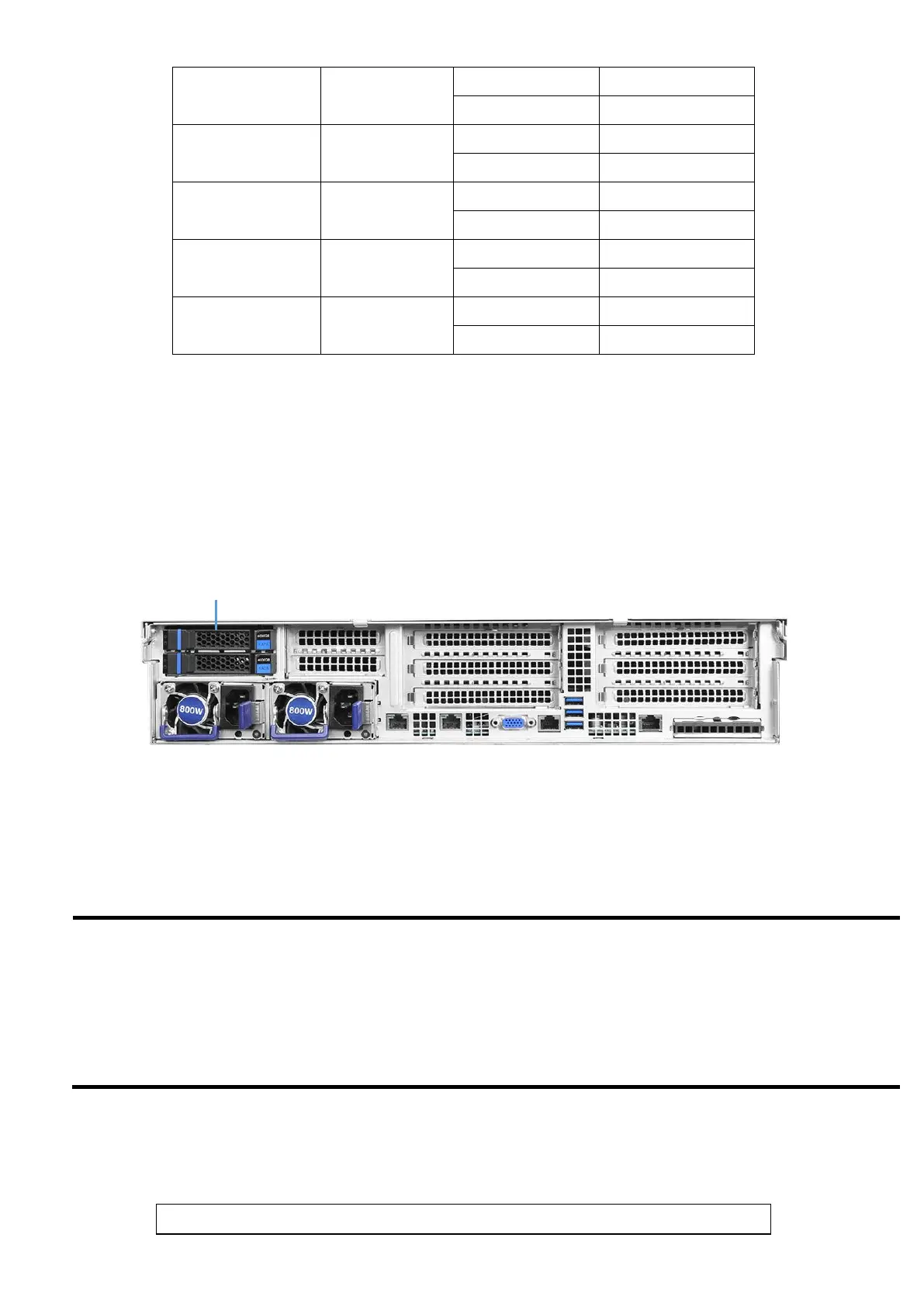

Figure 38.2 x 2.5'' Rear Mount Backplane Kit Placement
Supported SATA SSDs must not exceed the following power and thermal limits:
1 or 2 SATA SSDs supporting up to 4W per device with a case temperature rating of 70 degree C
1 or 2 SATA SSDs supporting up to 1.5W per device with a case temperature rating of 60 degree C
Note- The maximum supported SSD power and thermal limits documented above,were derived
based on thermal testing using a maximum system configuration with fan redundancy support
operating at ambient input air temp of 35°C. The test system was based on the system models
utilizing a maximum number of front and rear drive storage devices – 12 x 3.5” in the front + 2 x 2.5”
in the back
- Because of thermal limits in this area of the chassis, the rear hot swap drive bay option cannot
support the thermal requirements to support hard disk drives in any system configuration.
The backplane includes several connectors and a jumper block, as defined in the following
illustrations.
Table 46.12G SAS 2 Port Backplane
2x2.5''Hot Swap
Drive Bay(Optional)
To Next Page
