D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Alternatively, tap the Search
or Dial eld. This will invoke
the virtual keyboard.

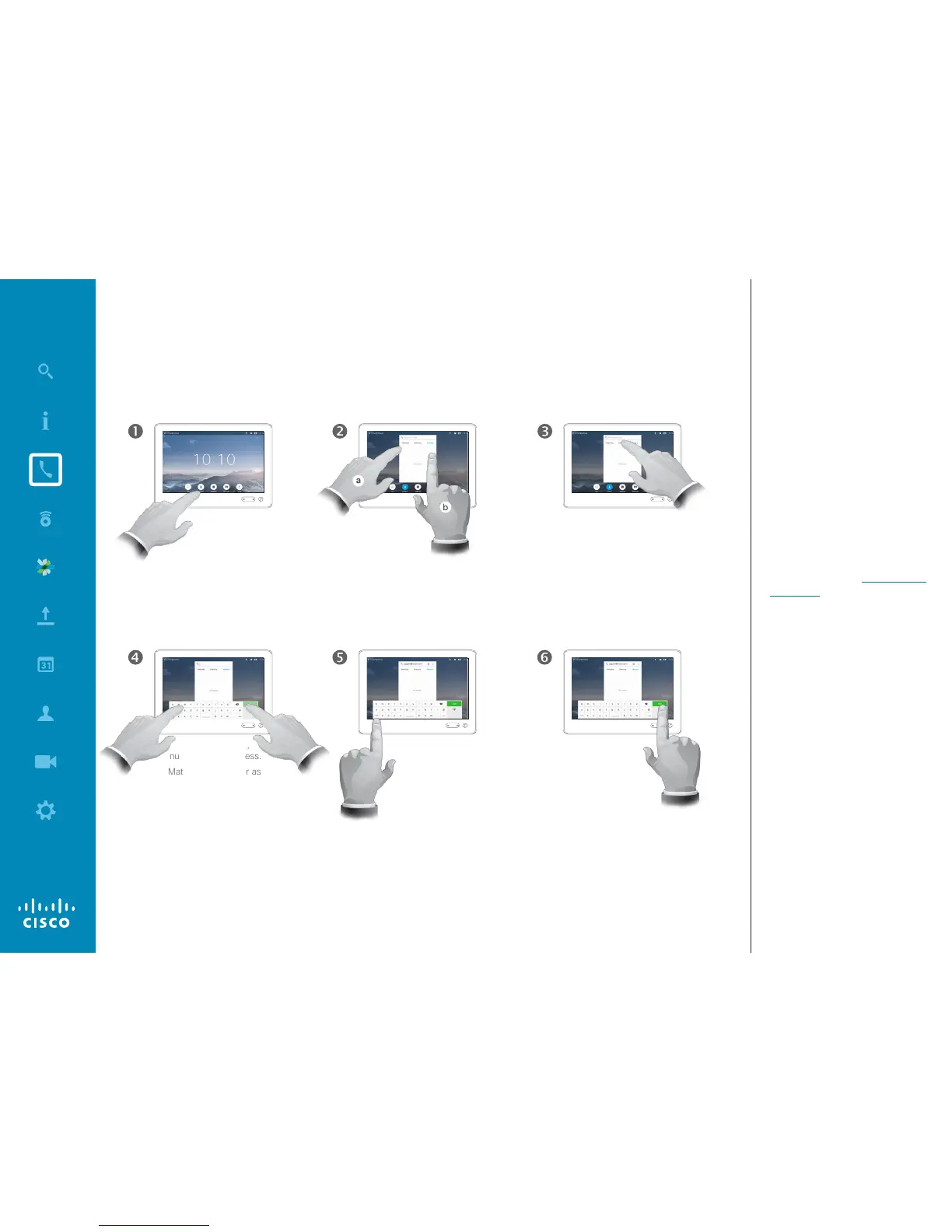

Tap Contacts.
To search for
someone in
a specic list
(Favorites,
Directory or
Recents), tap that list (a) and
then scroll down (b) to locate
the entry.
Key in the name,
number, or IP address.
Matches will appear as
you type.
Tap and hold
*
to type
the point sign used in
IP-addresses.
There is an extended
numerical mode available,
which also contains
special characters.
To toggle between the
alphanumerical mode and
the extended numerical
mode tap the key in the
lower left corner of the keyboard.
When you are
ready to place
the call, tap
the green Call
button.
Place Call From Contact List
Place Call
Your lists of Contacts consist of
three parts:
Favorites. These contacts have
put there by you. These entries
will typically be someone you call
frequently or otherwise need to
access in a swift and convenient
manner from time to time.
Directory will typically be a corporate
directory installed on your system by
your video support team.
Recents is a list of calls you have
placed, received or missed earlier.
You may clear the Recents list for
privacy reasons, see “Call Recents”
on page 47.
The following options apply:
You may key in a name, number or
an IP address and the system will
look in all lists for you.
You may add the entry to the list of
Favorites; edit aspects of the entry
before calling; change the call
rate and remove the entry from
Recents.
About the Lists of
Contacts
