Cisco TelePresence SX20 User Manual

59
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Camera

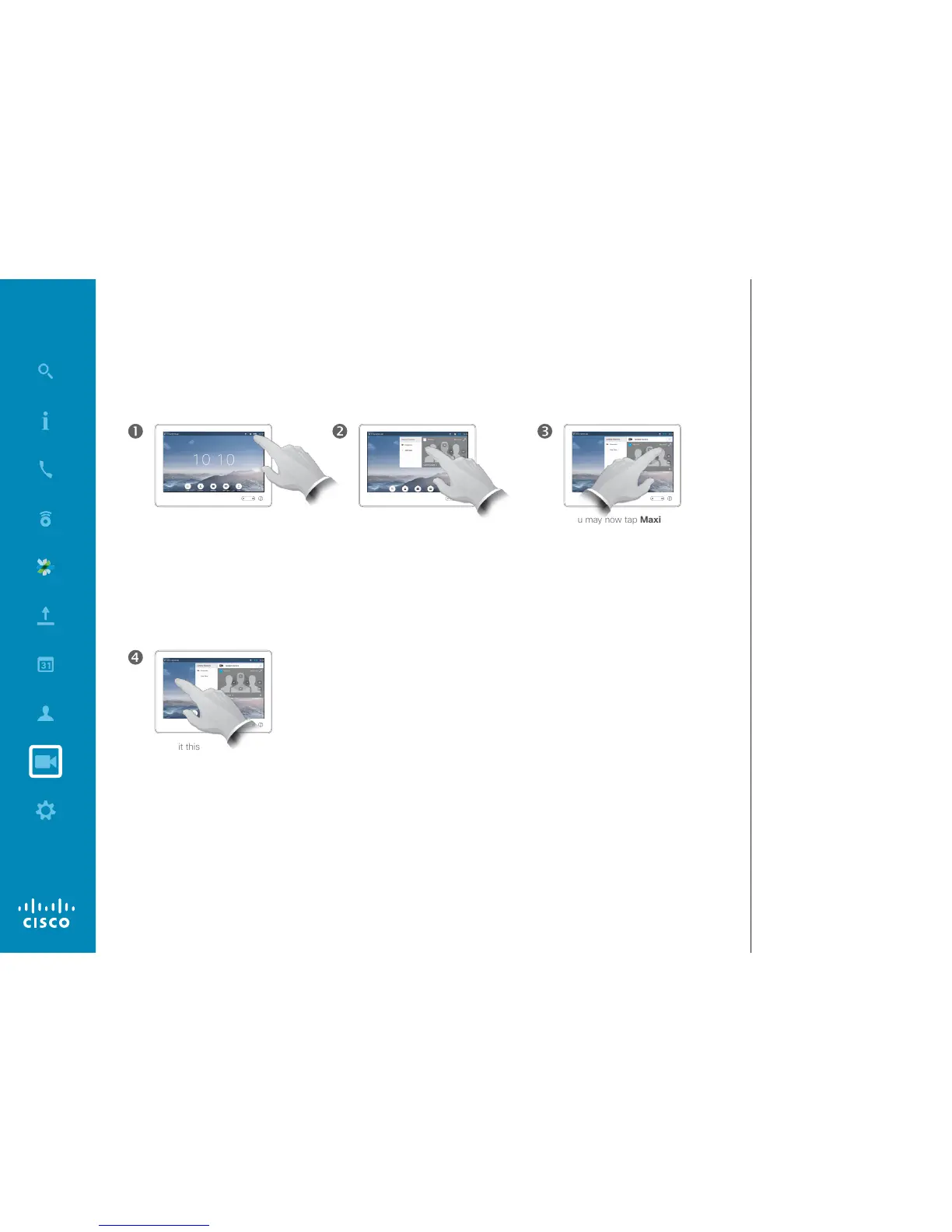

Resize the Selfview PiP
The selfview shows what others see
from your video system. You will
normally use it to conrm that they
see what you want them to see.
The selfview appears as a PiP
(Picture-in-Picture).
From time to time you may want to
have the selfview activated during
the meeting.
You may want to zoom, pan or tilt
your camera to provide a better
view for the other participant(s). To
get a better view, you may want to
maximize the selfview.
Why Resize the Selfview?
You may now tap Maximize to
get a full-screen Selfview.
Repeat the process to minimize,
or deactivate the selfview by
tapping the Selfview icon again.
You may also use this to gain
access to he control of your own
camera.
Tap Camera. Tap Selfview
to turn it on.
To exit this
menu putting changes into
eect, tap anywhere outside
the active menu.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
