For systems with two cameras set up
for speaker tracking, this window lets
you specify the tracking mode. Select
between Normal and Fast.
In addition, this window lets you con-
gure the Snap to Whiteboard feature.
Just follow the wizard to set up this
feature.
Note! Speaker tracking microphones
are height-above-oor sensitive. This
is used to make the system respond
to a speaking person standing by the
whiteboard only. A person sitting in
front of the whiteboard will then avoid
invoking the snap feature.
To make this work the system will look
and listen for a face located in the
upper half of the dened whiteboard
area.
The whiteboard must be located on
the wall opposing the camera system.
The feature has not been designed for
any other angle of incidence.
For a more detailed discussion on the
Snap to Whiteboard feature, see the
Administrator Guide for your video
system.
Settings
Administrator Settings—Tracking
About Tracking

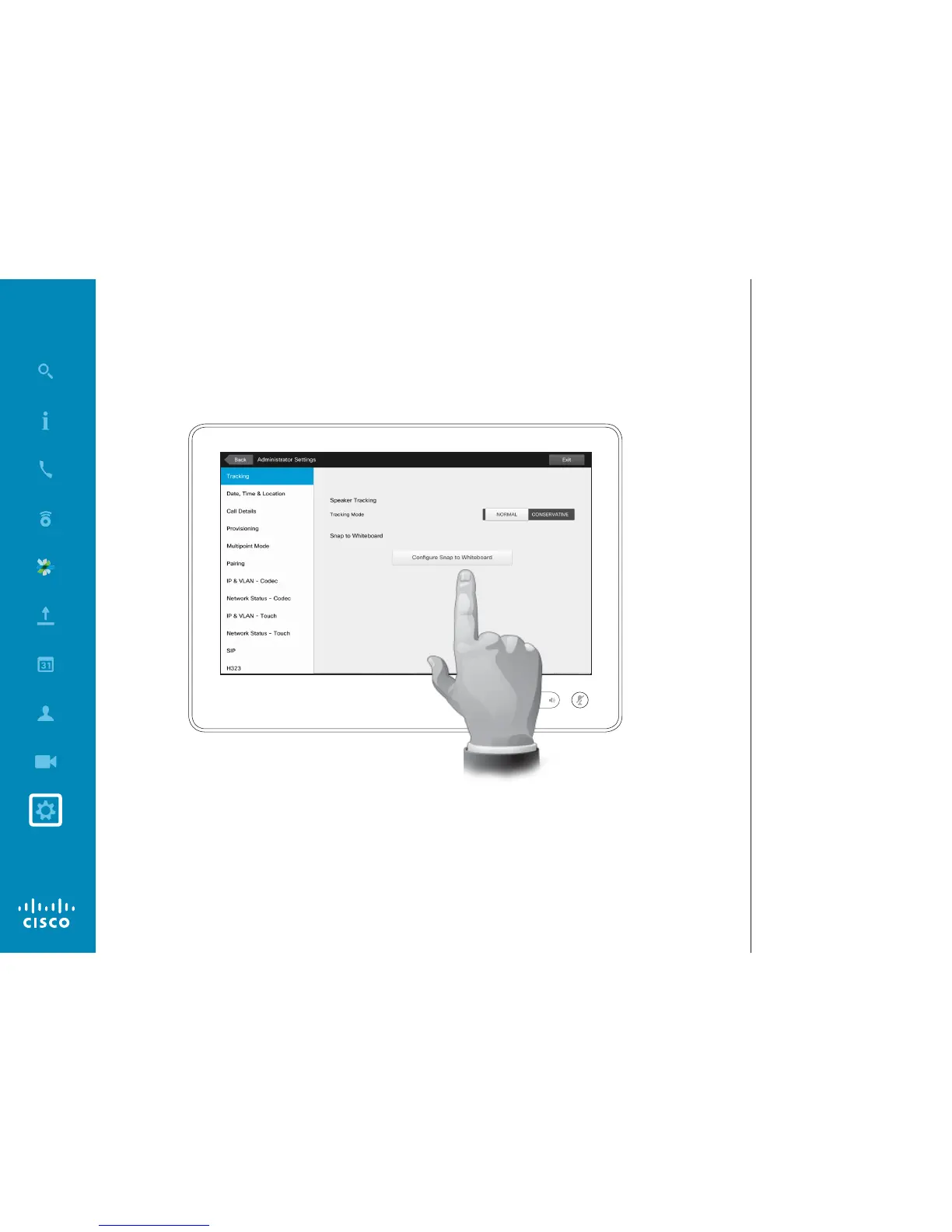

Tap as shown to invoke the Snap
to Whiteboard setup wizard.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
