Camera
Snap to Whiteboard
Systems with speaker tracking may
include the Snap to Whiteboard
preset. This feature must have been
implemented by your video support
team to work.
Snap to Whiteboard will cause the
camera to display a predened
whiteboard area as well as a person
standing by the whiteboard.
If Snap to Whiteboard has not been
activated, the camera will zoom in
on the person only and not show the
whiteboard.
Snap to Whiteboard will only work
if a person is standing by the
whiteboard and speaking. This has
been implemented by design to
make it possible to sit in front of the
whiteboard without triggering the
snap feature.
About Snap to Whiteboard

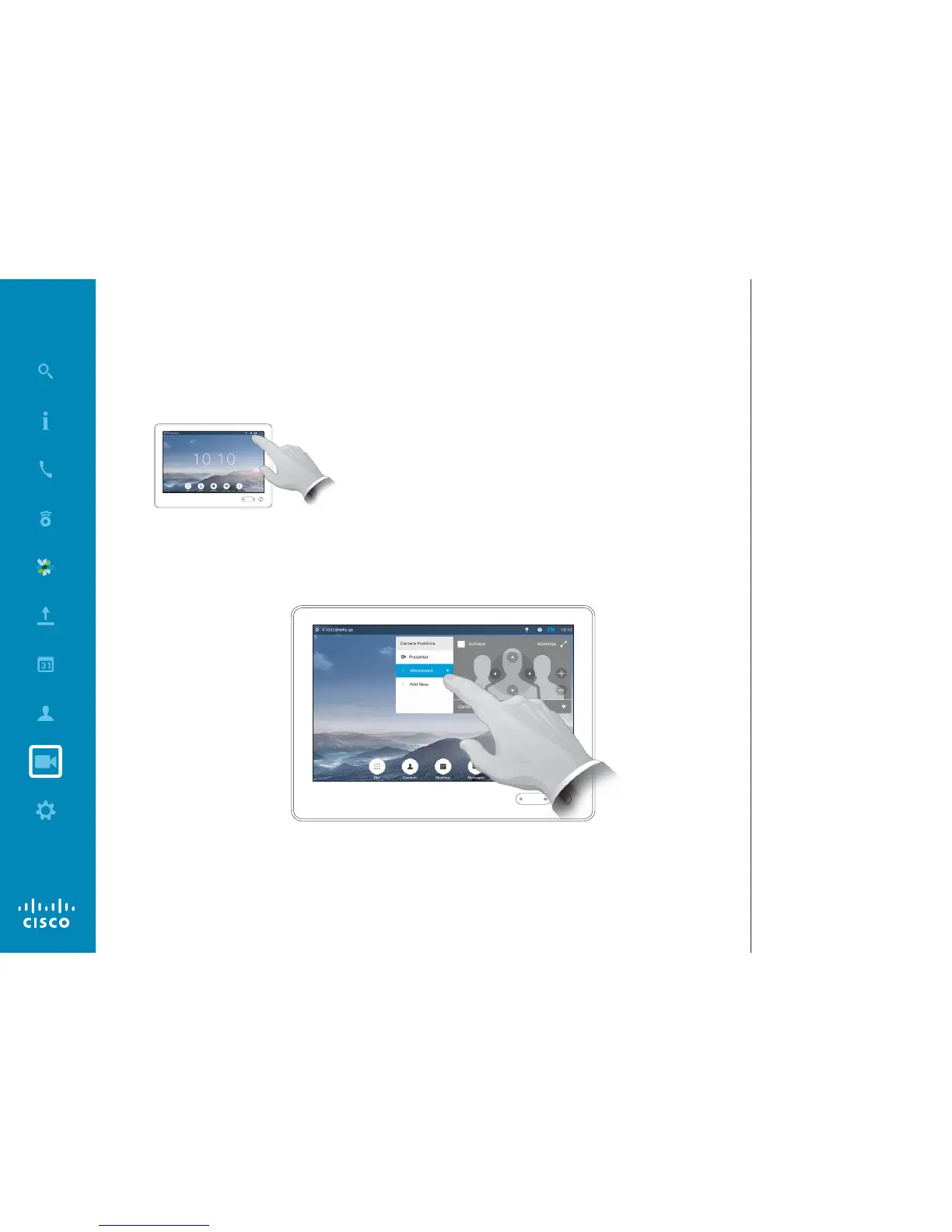

Tap Camera to invoke the
camera control menu.
Tap the Whiteboard preset to start using this feature, details at right.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
