Cisco TelePresence SX20 User Manual

28
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
This is a convenient way to obtain
information about all the participants
and their current status.
In addition, you may use the list
to disconnect participants from
the conference or to grant them
certain rights, such as to retain the
position as prominent speaker even
if someone else starts speaking.
These features are outlined on the
following pages.
Using Participant List
Conference Calls with Multiple Participants

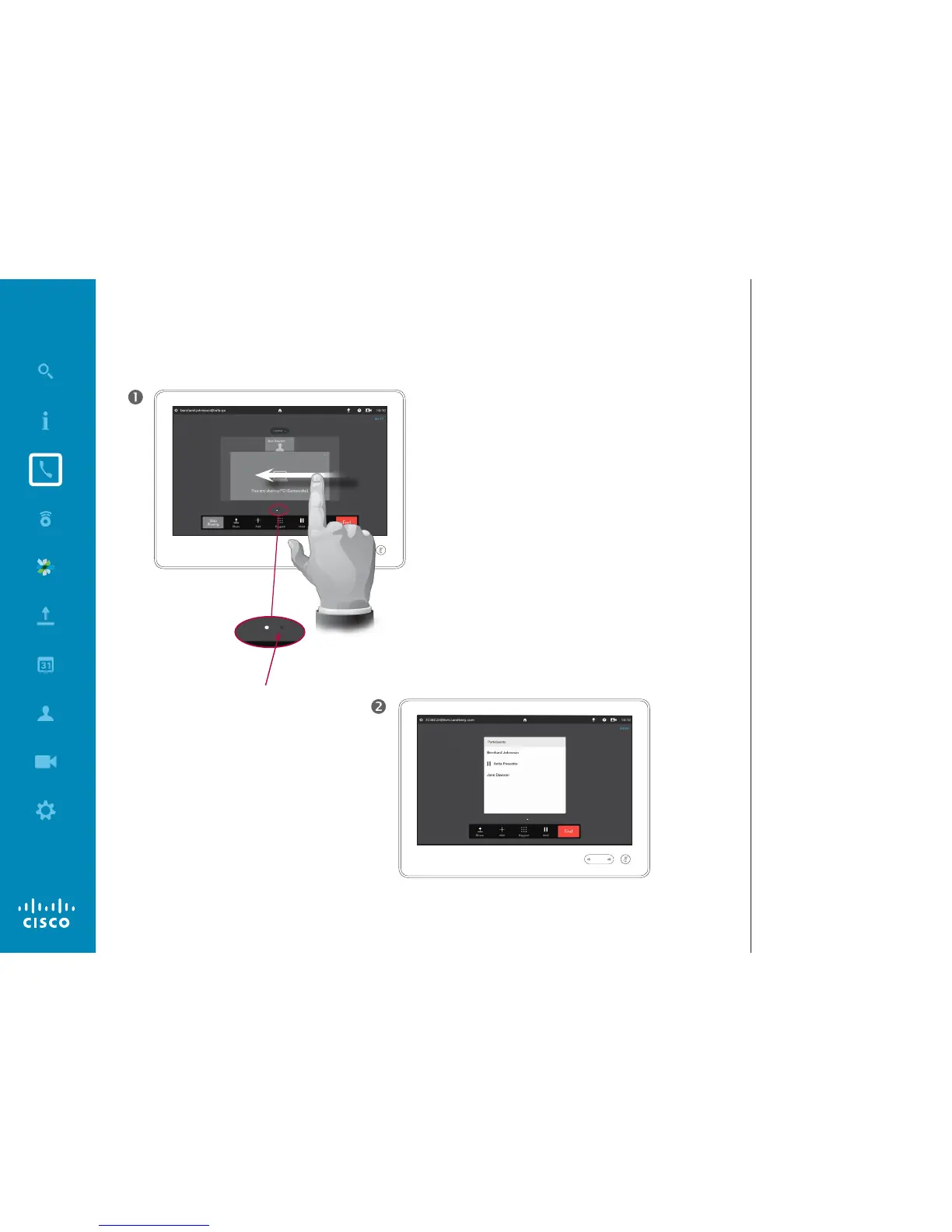

View Meeting Participant List
In a call, swipe your
nger horizontally
to the left...
...or tap the little
dot not shown in
white.
The list will show all the
participants, who is speaking
for the time being, who is
sharing content (if applicable),
as well as who has been put
on hold (if applicable).

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
