Assume that you are already in a call.
If you then receive another incoming
call, you will have the following
options:
•
You may decline the call and
continue with what you were
doing.
•
You may put the current call on
hold and accept the new call. At
any time you may swap between
the two.
•
You may transfer the incoming call
to someone else, including the
one you were talking to.
•
You may, after putting the
incoming call on hold, later decide
to merge this call with the existing
(optional feature).
•
You may merge the incoming
call directly with the ongoing call
(ACCEPT & MERGE). This applies
to MultiSite equipped systems only.
Add: Provided that
your system supports
it: Accept the incoming
call and merge it with
the ongoing call.
Some systems may
accept that you merge
the incoming call with
the existing, but as an
audio-only call.
You may be prompted
to put the current call
(or group of calls) on
hold before merging
can take place.
Decline the incoming call
and carry on as you have
been doing.
Accept the incoming
call, while holding the
current call or group of
calls.
Accept the incoming call,
while ending the current call
or group of calls.

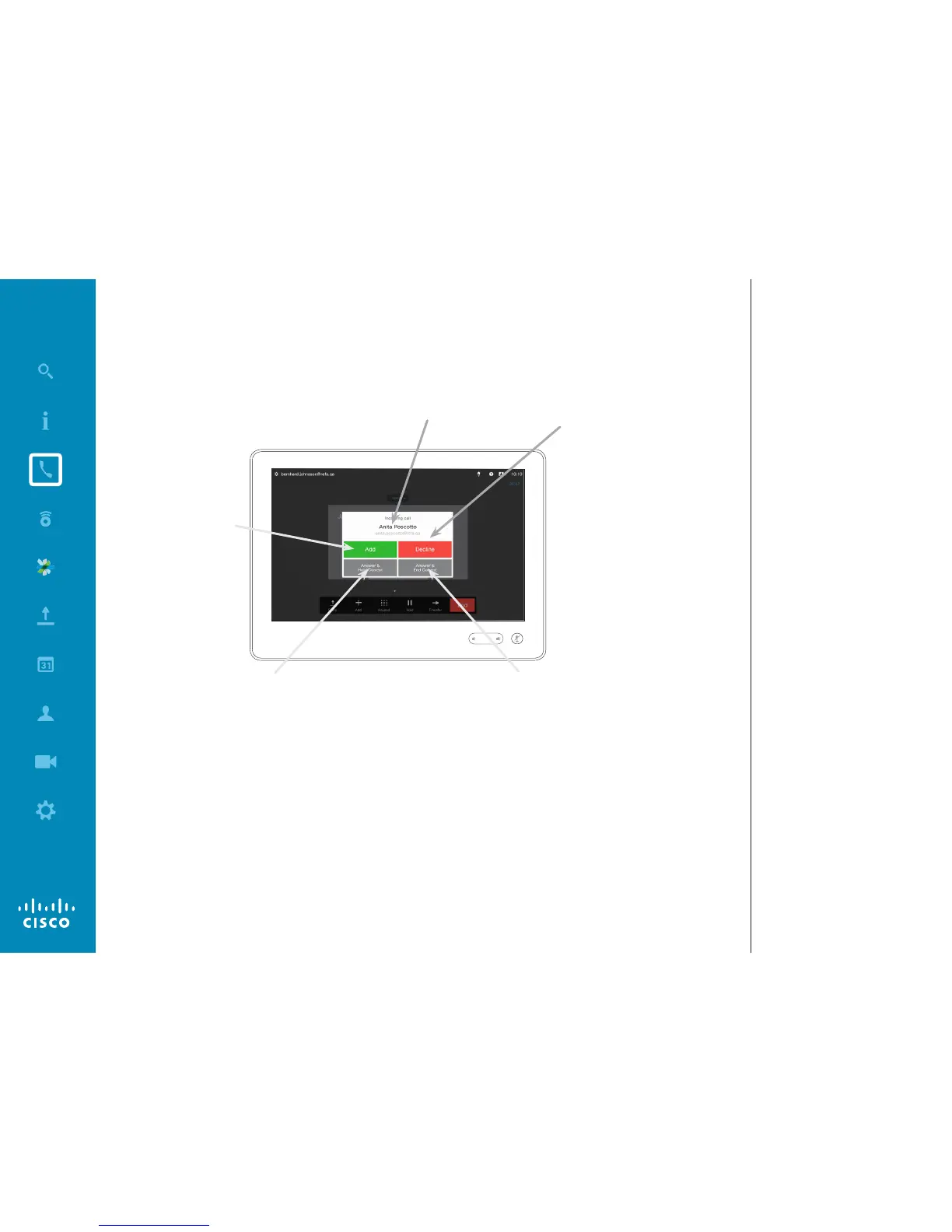

The identity of the new
incoming call is stated
here.
About Adding Incoming
Calls
Conference Calls with Multiple Participants
Add Incoming Call to Existing Call

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
