Room Control Using Touch10
Introduction to Video Conferencing
Your video system may have the
optional ability to control certain
room settings, like temperature,
blinds, curtains and light directly
from the Touch 10 control.
These optional settings are either
always available or context sensitive
(appearing only in a call or only
outside a call).
Exactly which settings that are avail-
able depends on the conguration
created by your video support team.

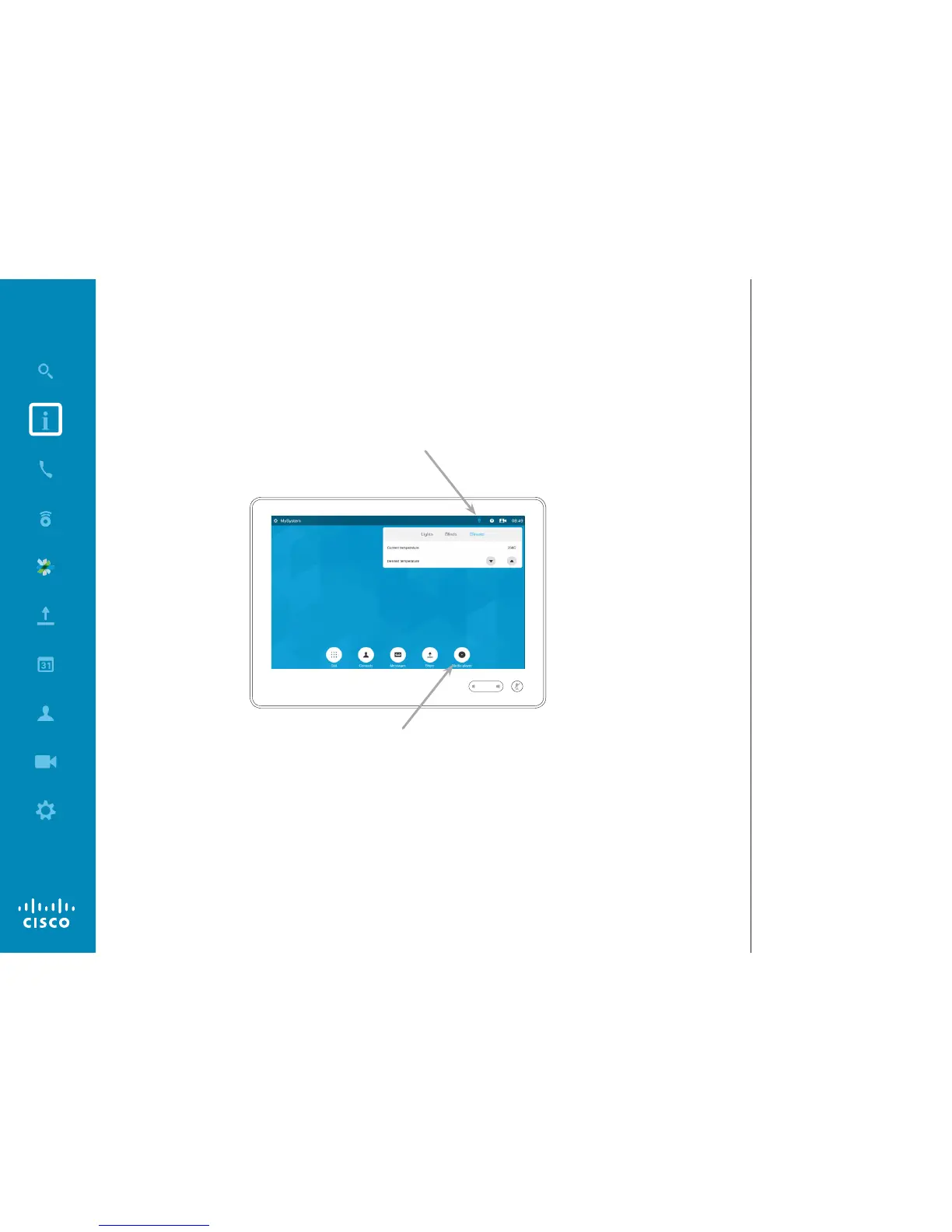

The screen-shot shown at left is just
one example of how it could be.
About Room Control
Use this icon to access global in-room settings, which
need to be accessible at all times. This typically includes
light, curtains, temperature etc. The icon itself may look
dierent, but the location of the icon is always as shown,
when applicable.
In addition you may have settings appearing only
when in a call or only when outside a call. At any rate,
the access icon for this will always be located here,
when applicable.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
