There are basically two modes of
video conferencing; viz. MultiWay
and MultiSite.
•
To enable MultiWay, a MultiWay
address must have been entered.
•
If a MultiWay address has been
specied and MultiWay is selected,
MultiWay will always be used for
video conferencing.
•
If a MultiWay address has been
specied, but MultiSite is selected,
MultiSite will be used.
•
If set to Auto, MultiWay will be
used if a MultiWay address
has been specied, otherwise
MultiSite will be used.
•
If set to O, no video conferencing
will be possible.
•
Any use of the MultiSite feature
requires the presence of the
MultiSite option.
Caution! There is no Cancel
function letting you exit the menu
undoing any changes you have
made. Take care!
Settings

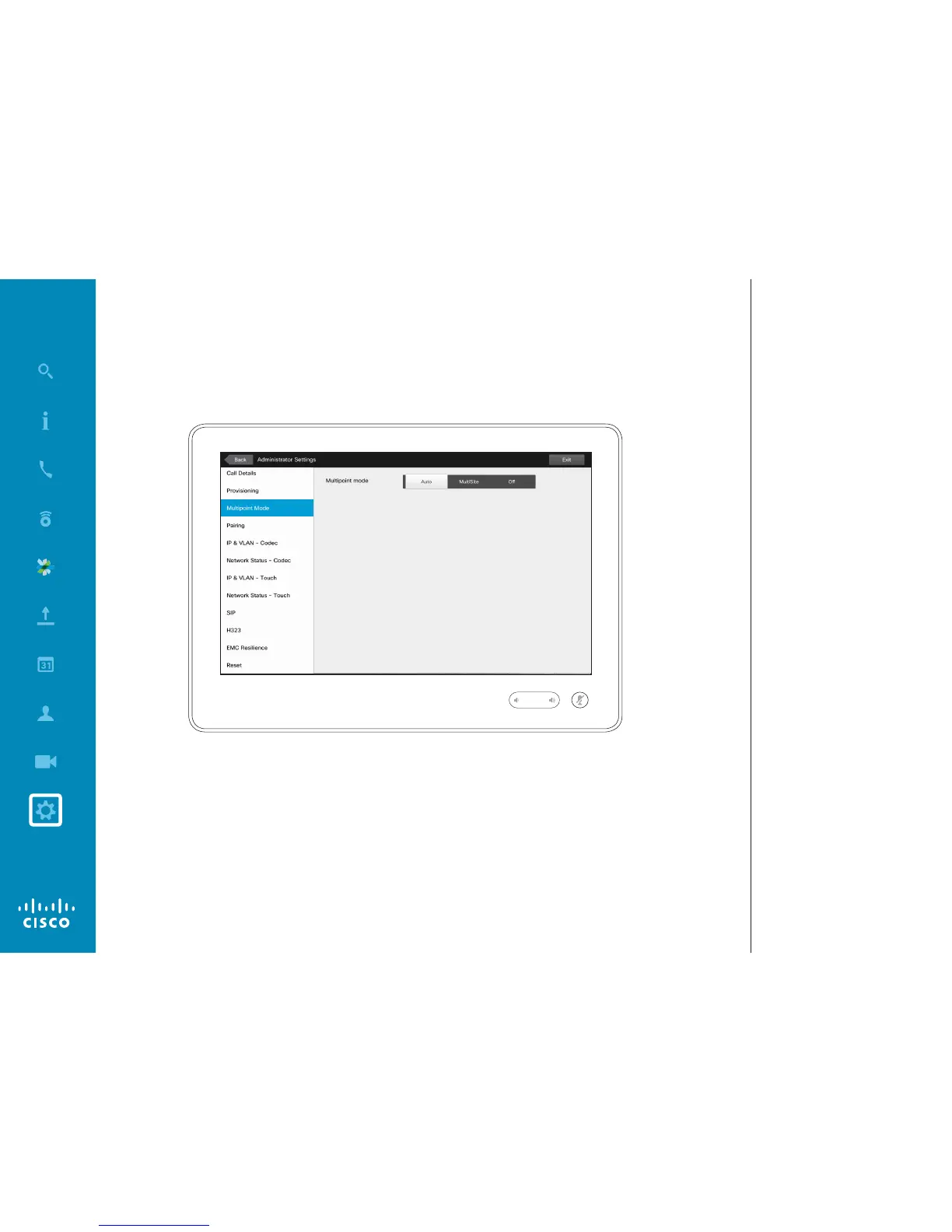

Administrator Settings—Multipoint Mode
About Multipoint
To exit
Administrator
Settings, tap
Back.
To exit Settings
as such, tap
Exit.
Note that there
is no Cancel
function letting
you exit the
menu undoing
any changes you
have made.
Take care!

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
