65
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Settings
Camera Control

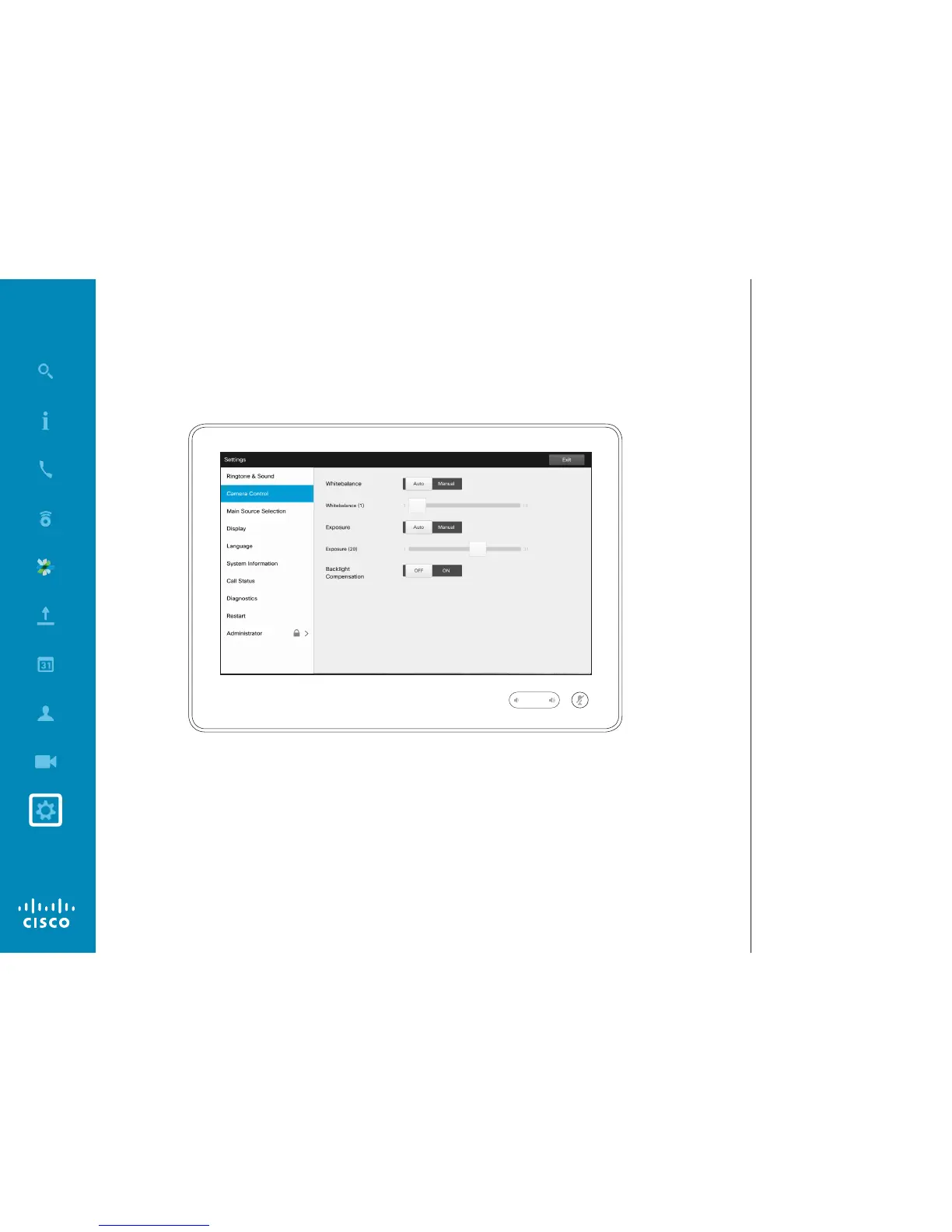

The Camera Control window lets
you set the whitebalance and
exposure of the camera. If you do
not want to tweak this yourself, just
leave it up to the system by tapping
Auto.
Backlight compensation comes
in handy when there is much light
behind you. Without compensation
you will easily appear very dark to
the far end.
Note how the settings chosen are
indicated. In the example shown,
Backlight compensation is set to O.
About Camera Control

Table of Contents

Other manuals for Cisco TelePresence SX20

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco TelePresence SX20 and is the answer not in the manual?

Cisco TelePresence SX20 Specifications

General IconGeneral
Digital zoom5 x
Optical zoom2.5 x
Aspect ratio16:9
Supported video modes1080p, 576p, 720p
Supported graphics resolutions176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-inYes
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10, 100, 1000 Mbit/s
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (typical)40 W
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
Voice codecsG.711, G.722, G.722.1
Weight and Dimensions IconWeight and Dimensions
Depth180 mm
Width300 mm
Height34 mm
Weight1400 g
