Cisco TelePresence SX20 User Manual

39
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Share content

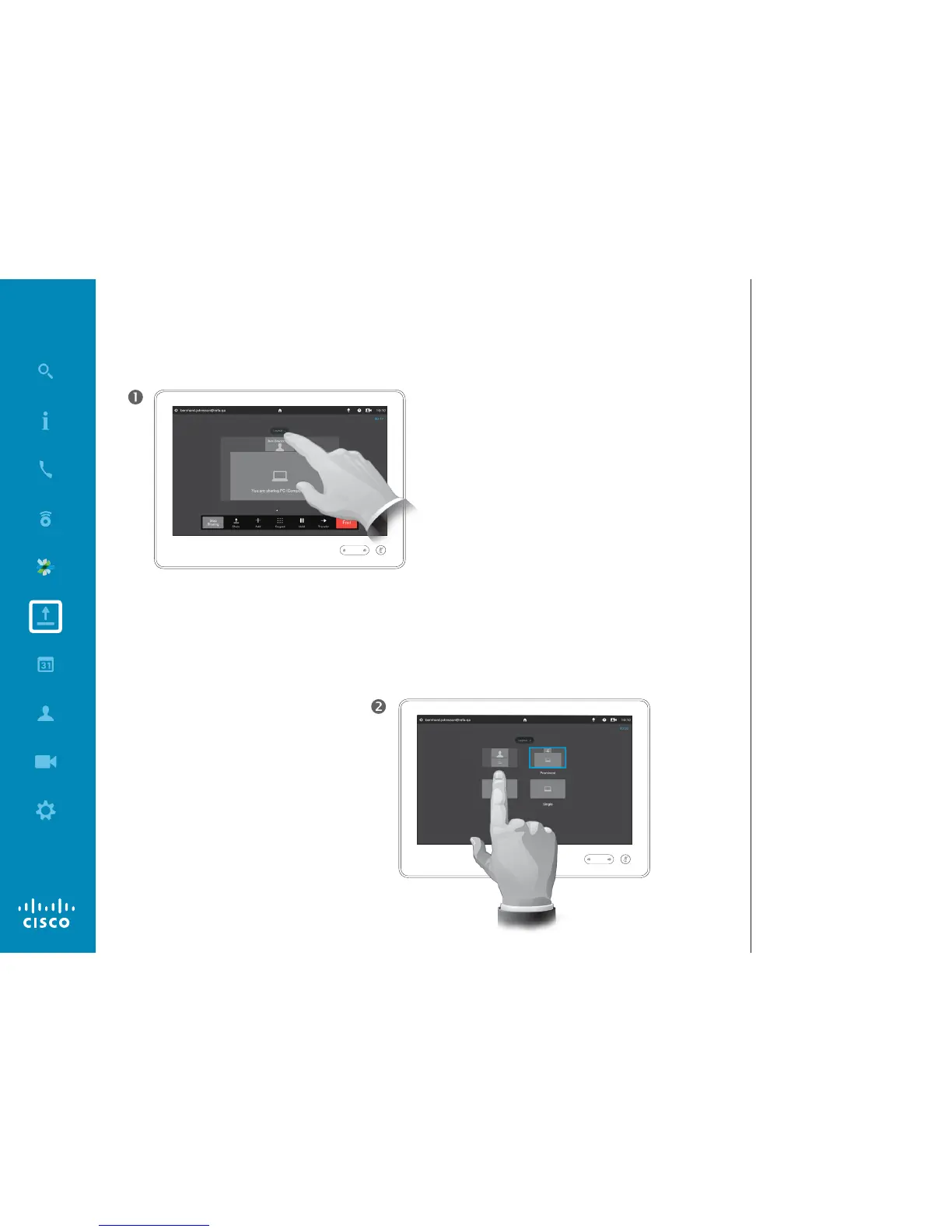

Change Presentation Layout In a Call
You may change the layout of the
screen during presentations. Typical
options available will be with or
without showing the presenter and
showing the presenter as either
a PiP (Picture in Picture) or PoP
(Picture outside Picture).
The layout options available on
your system may dier from those
shown here, but the layouts shown
are always those you may choose
between.
About Presentation Layout
Tap Layout to invoke the layout options.
Select your preferred layout
by tapping it.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
