Cisco TelePresence SX20 User Manual

60
D1534504 User Guide
Cisco TelePresence
Produced: November 2016 for CE 8.2
All contents © 2010–2016
Cisco Systems, Inc. All rights reserved.
Camera

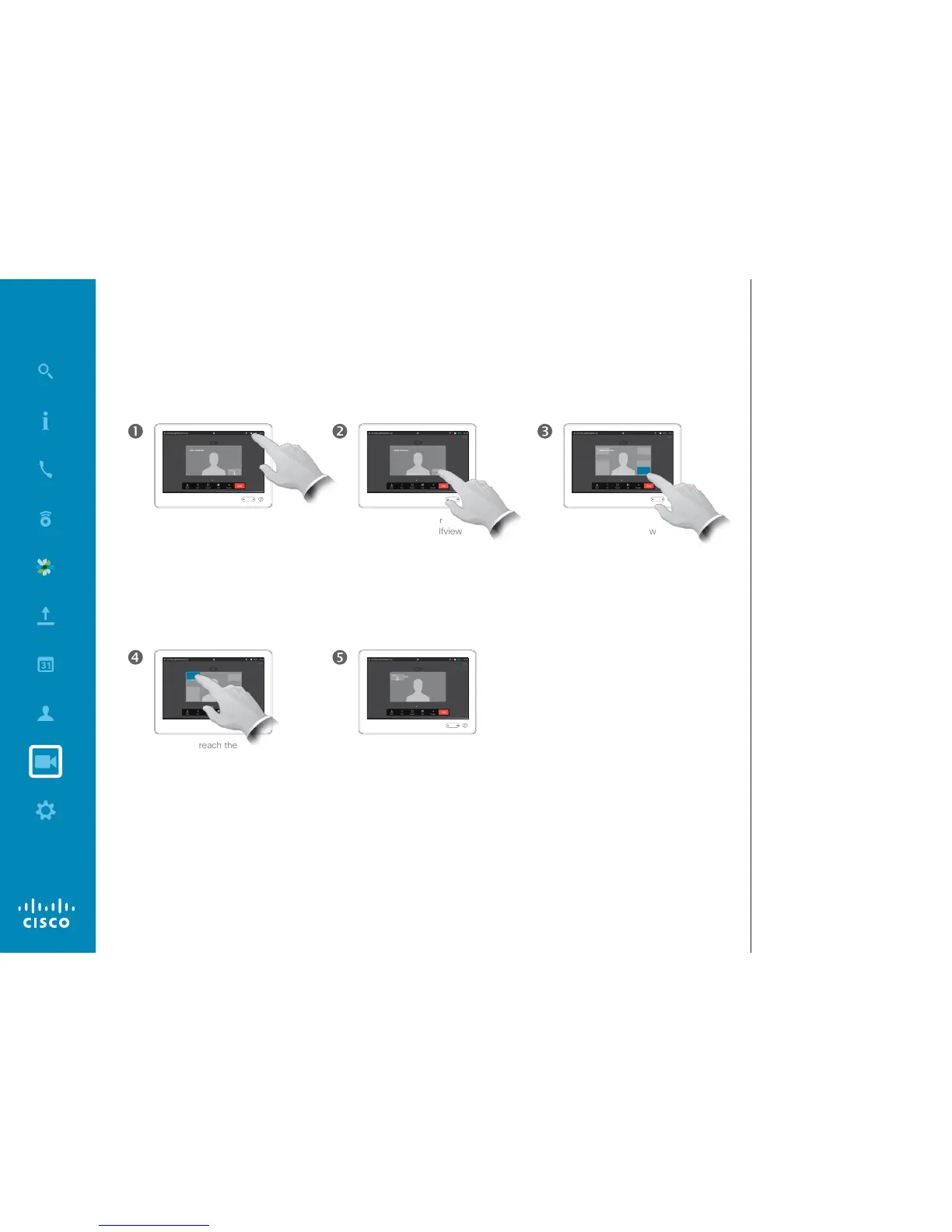

Move the Selfview PiP
The Selfview shows what others see
from your video system. You will
normally use it to conrm that they
see what you want them to see.
The Selfview appears as a PiP
(Picture-in-Picture).
From time to time you may want to
have the Selfview activated during
the meeting. This could, for example,
be to ensure that a lecturer in your
room remains seen on the screen
despite constantly moving around.
It may happen that the current
position of the Selfview blocks
important parts of the image on your
screen. You may therefore want to
move it.
Why Move the Selfview?
As soon as it turns
blue drag the selfview
to the new location.
Possible locations are
indicated.
Tap Selfview in the upper right
part of the screen to invoke the
selfview, if needed.
Press and hold your
nger within the selfview
area.
Once you reach the
location you want to
have it in, lift your nger
from the touchscreen.
The selfview will now assume
its new location.

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
