Camera
Control Own Camera
Existing camera presets can be used
right away during a call.
Your video system may have more
than one camera, for example one
camera showing the participants,
while another shows the whiteboard.
If you need to add new or modify
existing camera presets, this is done
in the same way as you do outside
a call—turn to “Edit Existing Camera
Position Preset” on page 53 for
details.
As an alternative to adding or editing
presets, a simple adjustment of your
camera’s pan tilt and zoom should
also be considered.
About Camera control
Pan
Tilt
Zoom
In a call or
outside a call
(shown here),
tap Camera.
Tap anywhere outside the
menu to exit.
Adjust Pan, Tilt and
Zoom. The selfview will
be temporarily turned on
to assist you.

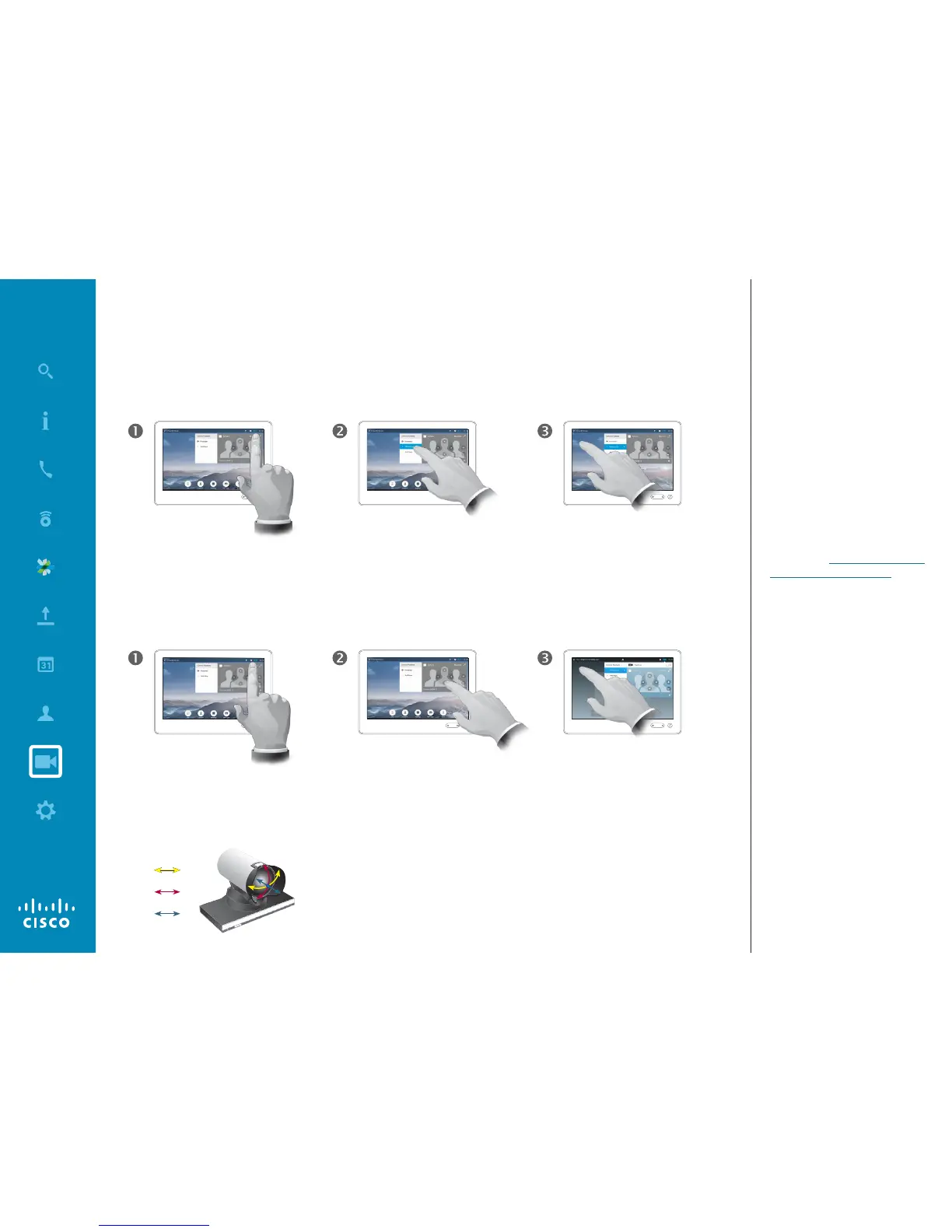

Adjusting your camera’s pan, tilt and zoom:
In a call or
outside a call
(shown here), tap
Camera.
Select the preset
to use.
Tap anywhere outside
the menu to exit.
Using your camera presets:
Pos. 1
Pos. 1

Cisco TelePresence SX20 Specifications

General

Digital zoom	5 x
Optical zoom	2.5 x
Aspect ratio	16:9
Supported video modes	1080p, 576p, 720p
Supported graphics resolutions	176 x 144, 352 x 288, 704 x 576, 720 x 480, 720 x 576, 1280 x 768, 1280 x 800, 1280 x 960, 1024 x 576 (WSVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Line-in	Yes
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	40 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711, G.722, G.722.1

Weight and Dimensions

Depth	180 mm
Width	300 mm
Height	34 mm
Weight	1400 g
