Chapter 6 Clustering Switches
Verifying a Switch Cluster
Verifying a Switch Cluster
When you finish adding cluster members, follow these steps to verify the cluster:
Step 1 Enter the cluster command switch IP address in the browser Location field (Netscape Communicator)
or Address field (Microsoft Internet Explorer) to access all switches in the cluster.
Step 2 Enter the command-switch password.
Step 3 Select View > Topology to display the cluster topology and to view link information (Figure 3-8 on
page 3-15). For complete information about the Topology view, including descriptions of the icons,
links, and colors, see the “Topology View” section on page 3-2.
Step 4 Select Reports > Inventory to display an inventory of the switches in the cluster (Figure 6-12).
The summary includes information such as switch model numbers, serial numbers, software versions, IP
information, and location.
You can also display port and switch statistics from Reports > Port Statistics and Port > Port Settings
> Runtime Status.
Instead of using CMS to verify the cluster, you can use the show cluster members user EXEC command
from the cluster command switch or use the show cluster user EXEC command from the cluster
command switch or from a cluster member switch.

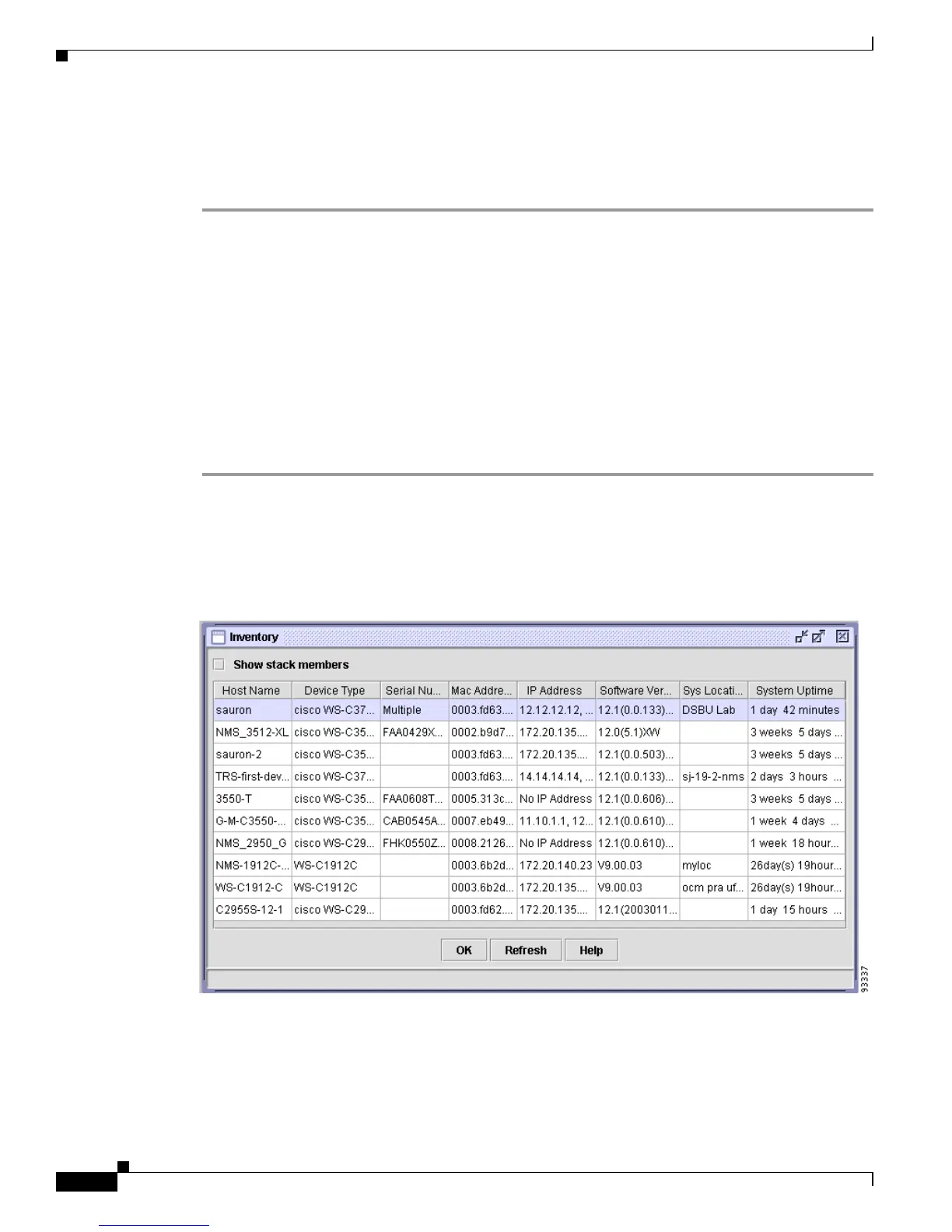

Figure 6-12 Inventory Window
If you lose connectivity with a cluster member switch or if a cluster command switch fails, see the
cluster-related recovery procedures in Chapter 39, “Troubleshooting.”
For more information about creating and managing clusters, refer to the online help. For information
about the cluster commands, refer to the switch command reference.
