21-3
Catalyst 3750 Switch Software Configuration Guide
78-16180-02
Chapter 21 Configuring DHCP Features and IP Source Guard
Understanding DHCP Features
The switch drops a DHCP packet when one of these situations occurs:
• A packet from a DHCP server, such as a DHCPOFFER, DHCPACK, DHCPNAK, or
DHCPLEASEQUERY packet, is received from outside the network or firewall.
• A packet is received on an untrusted interface, and the source MAC address and the DHCP client
hardware address do not match.
• The switch receives a DHCPRELEASE or DHCPDECLINE broadcast message that has a MAC
address in the DHCP snooping binding database, but the interface information in the binding
database does not match the interface on which the message was received.
• A DHCP relay agent forwards a DHCP packet that includes a relay-agent IP address that is not
0.0.0.0, or the relay agent forwards a packet that includes option-82 information to an untrusted port.
Option-82 Data Insertion
In residential, metropolitan Ethernet-access environments, DHCP can centrally manage the IP address
assignments for a large number of subscribers. When the DHCP option-82 feature is enabled on the
switch, a subscriber device is identified by the switch port through which it connects to the network (in
addition to its MAC address). Multiple hosts on the subscriber LAN can be connected to the same port
on the access switch and are uniquely identified.
Note The DHCP option-82 feature is supported only when DHCP snooping is enabled globally and on the
VLANs to which subscriber devices using this feature are assigned.

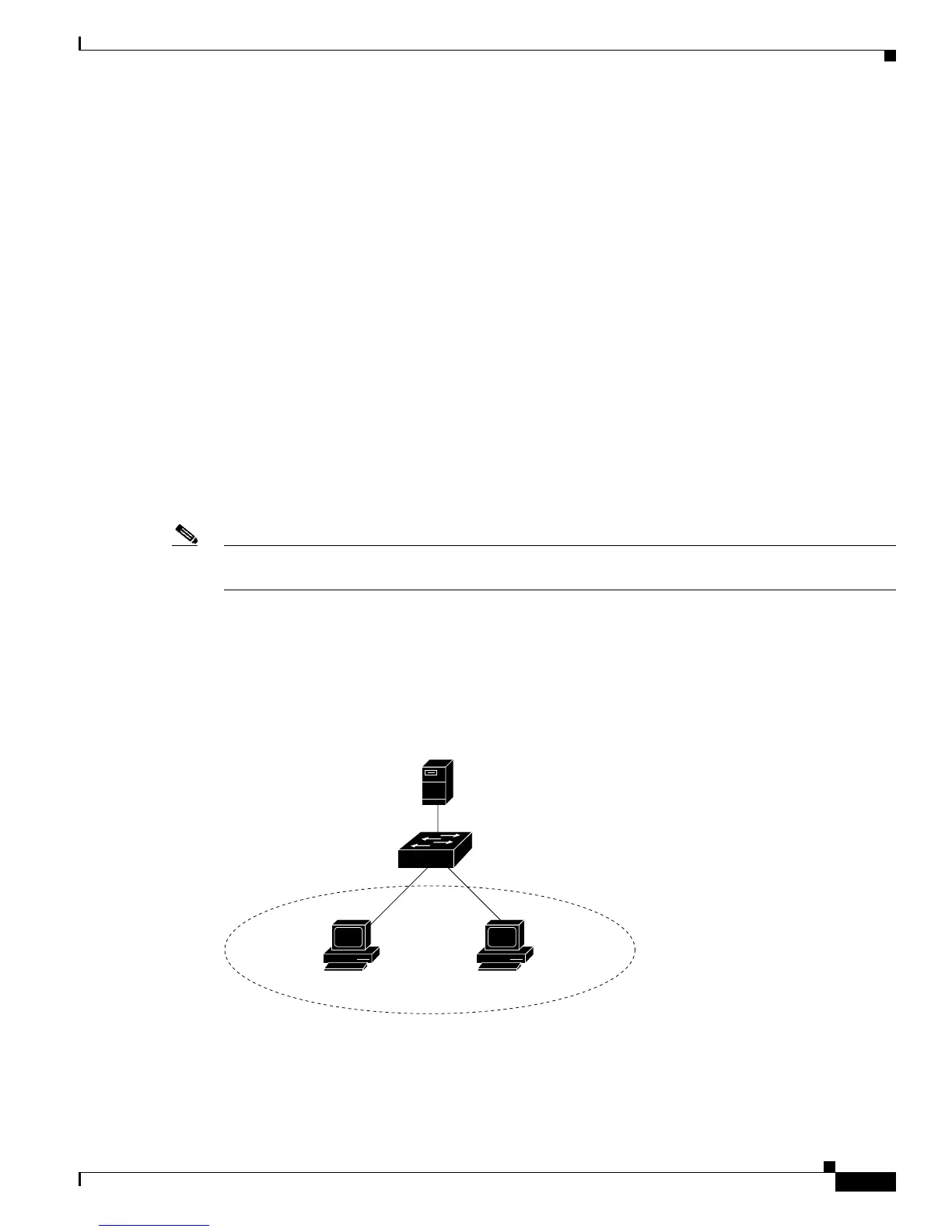

Figure 21-1 is an example of a metropolitan Ethernet network in which a centralized DHCP server
assigns IP addresses to subscribers connected to the switch at the access layer. Because the DHCP clients
and their associated DHCP server do not reside on the same IP network or subnet, a DHCP relay agent
(the Catalyst switch) is configured with a helper address to enable broadcast forwarding and to transfer
DHCP messages between the clients and the server.
Figure 21-1 DHCP Relay Agent in a Metropolitan Ethernet Network
Subscribers
Catalyst switch
(DHCP relay agent)
Host A
(DHCP client)
Access layer
DHCP
server
Host B
(DHCP client)
98813
VLAN 10
