REAR CENTRAL SEAT BELT - C4 P I CA S SO A N D GR A ND C 4 PI C AS SO

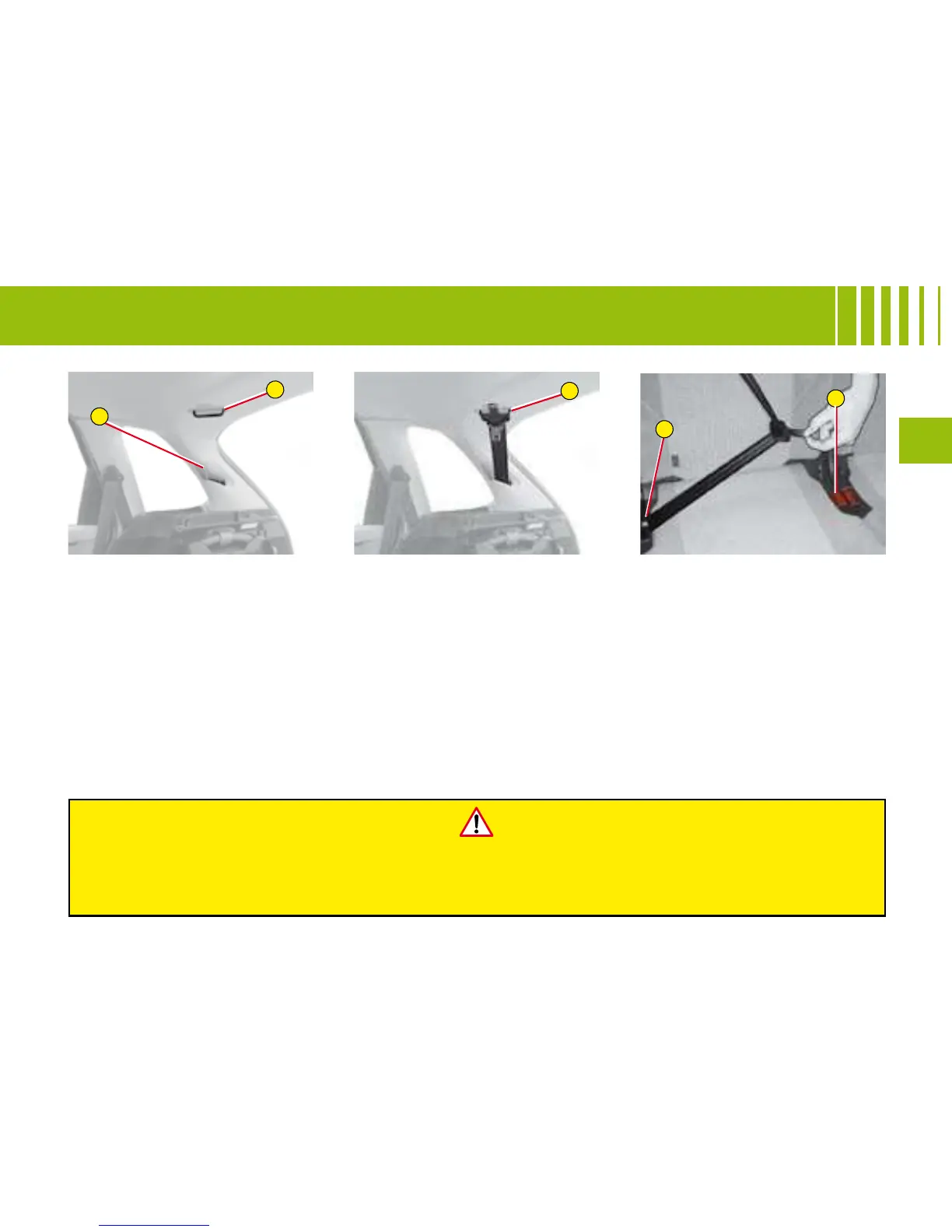

Routing of the seat belt
(C4 Picasso and C4 Grand
Picasso)
- Insert the tongue
C into the
buckle on the right, then insert
the second tongue D into the
buckle on the left.
Before use
For safety reasons, it is essential that the seat belt passes through the relay ring.
To prevent any damage to seat belts and in order not to get them jammed, take care to stow
them on the sides of the backrests.
Installation of the seat belt
(C4 Picasso)
1. Open the cover
A.
2.
Remove the belt tongues from
their housing.
3.
Bring the belt tongues up to
the relay ring B.
4. Insert the attachment then
pass the tongues through the
ring.
5.
Reclose the cover A. Make
sure that the belt is correctly
positioned in the recess in the
cover provided for this pur-
pose.
Stowage of the belt tongues
(C4 Picasso)
- Operate in reverse order to stow
the belt tongues.
Note :
You may opt to leave the
seat belt in the relay ring even if
not using it.
