REAR LENS
Note the bulb that is faulty.
Bulbs :
Direction indicator : PY21W.
Stoplamp :
P21W.
Reversing lamp :
P21W.
Sidelamp : LED
Contact a CITROËN dealer.

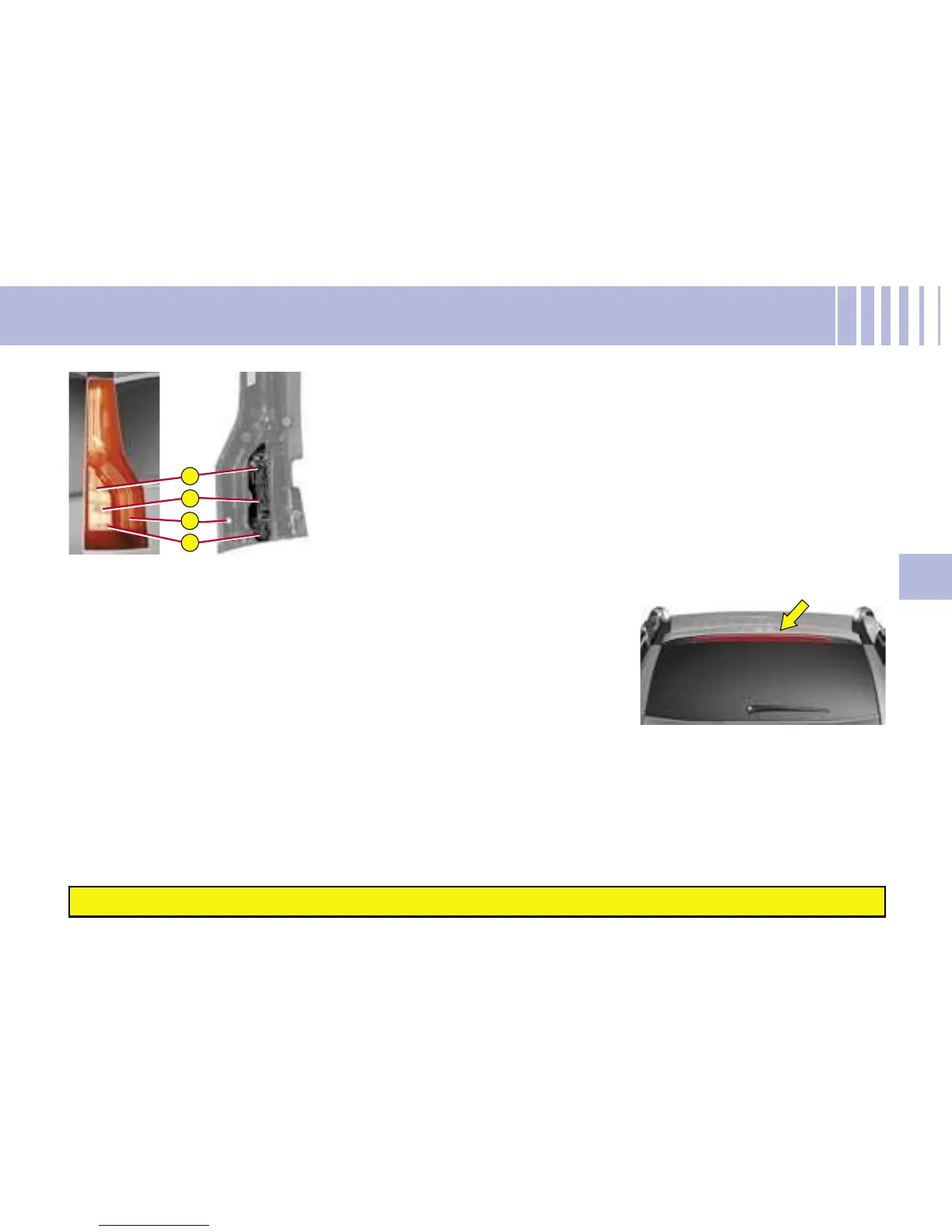

Rear lamps
1. With the tailgate open, undo
the 3 screws located on the
side of the lens unit and pull it
rearwards to detach.
2. Disconnect the connector lin-
king the lens unit to the boot.
Do not disconnect the LEDs.
3. Remove the seal.
4. Remove the bulb-holder.
5. Replace the bulbs. To remove
a bulb, rotate it a quarter turn.
To fit the bulb, rotate it a quarter
turn in the other direction.
6. Reposition the bulb-holder.
7. Put back the seal.
8. Reconnect the connector to
the lens unit.
9. Stow the harness in the open-
ing provided in the bodywork.
10. Reattach the lens unit on
the bodywork and do up the
3 screws.
Third stoplampwith bulb
1. With the boot open, detach
the interior trim.
2. Undo the nuts.
3. Using a thin screwdriver, de-
tach the 3 retaining lugs.
4. Remove the lamp via the ex-
terior of the tailgate.
5. Remove the bulb-holder.
6. Change the faulty bulb(s).
Check that the vehicle lamps work correctly after each op
eration.
CHANGING BULBS -
REAR LENS - GRAND C4 PICASSO
Third stoplampwith LED
Contact a CITROËN dealer
