BOOT - LUGGAGECOVER BLIND - G RA N D C 4 P I C AS S O
Luggage-cover blind

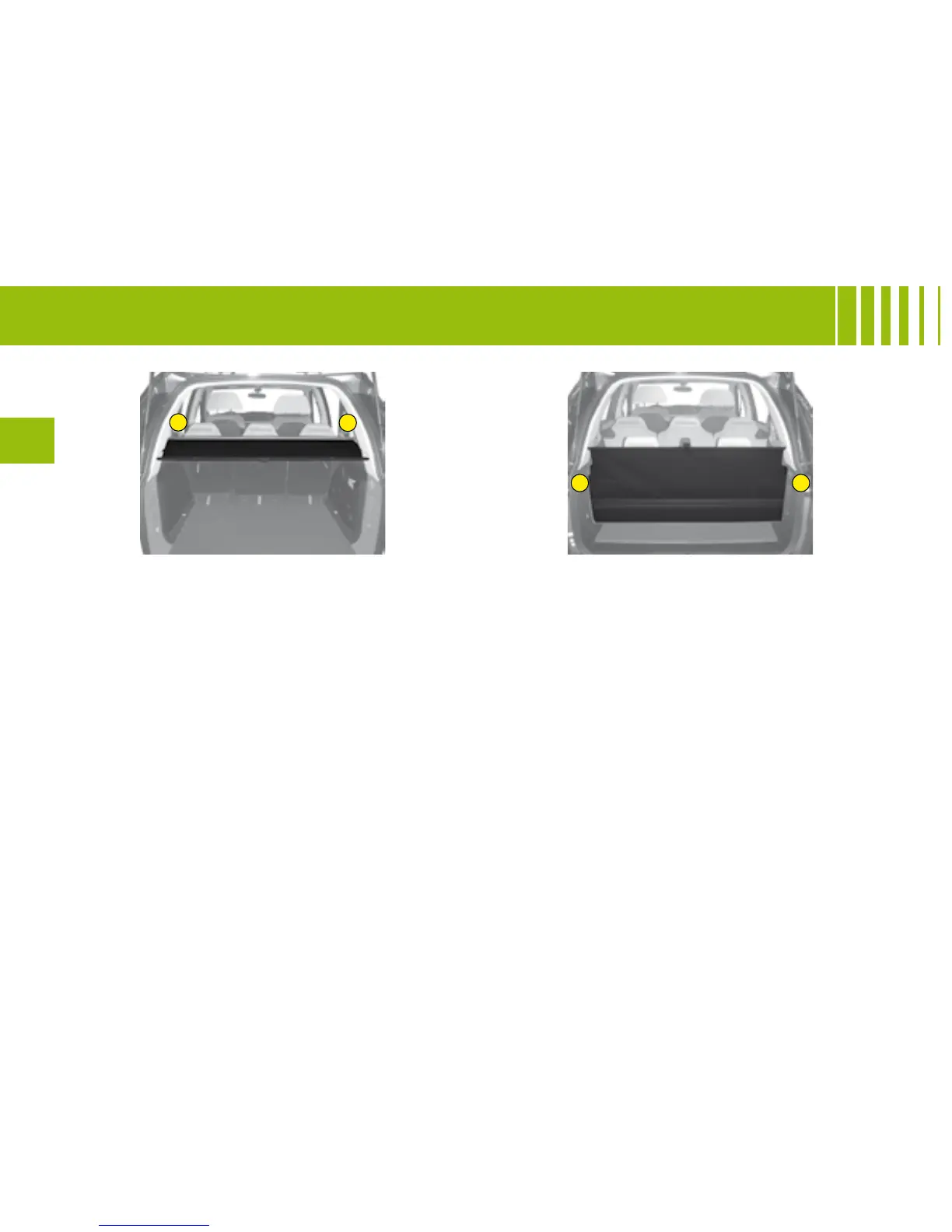

Position 1 : (5-seat configuration, behind the second row)
Behind the second-row seats, with the third-row seats
folded away.
To install the roller :
1. Compress the left-hand end of the roller and place
it in notch A.
2. Position the right-hand end of the blind roller in
notch B.
3. Unroll the blind until it reaches the boot pillars.
4. Insert the guides of the blind into the rails on the
pillars.
To remove the blind:
- Perform these operations in reverse order.
Note : the roller has a moving flap to avoid interference
with the second-row passengers when the seats are in
the reclined position.
Position 2 : (7-seat configuration)
Behind the third-row seats, this position conceals
objects stowed in the boot from outside view.
To install the roller :
1. Roll up the blind, then remove the roller from its
initial position.
2. Position the roller, with the blind pull bar upper-
most, flap downward.
3. Fold the concertina plates in the vertical position.
4. Engage the lug on the left of the roller in notch C.
5. Pass the right-hand side above the third-row armrest.
6. Engage the lug in notch D.
7. Pull the seat belt(s) so that they will deploy without
locking.
8. Unroll the blind and engage the guides into the
rails on the pillars.
9. Lock the seat(s) in position.
10. Fold back the concertina plates, pressing them
firmly in position.
