1
2
3
A
B
180
VI
REAR LENS
Note the bulb that is faulty.
Bulbs
Direction indicator: PY21W.
Stoplamp and sidelamp :
P21/5W.
Reversing lamp : P21W.

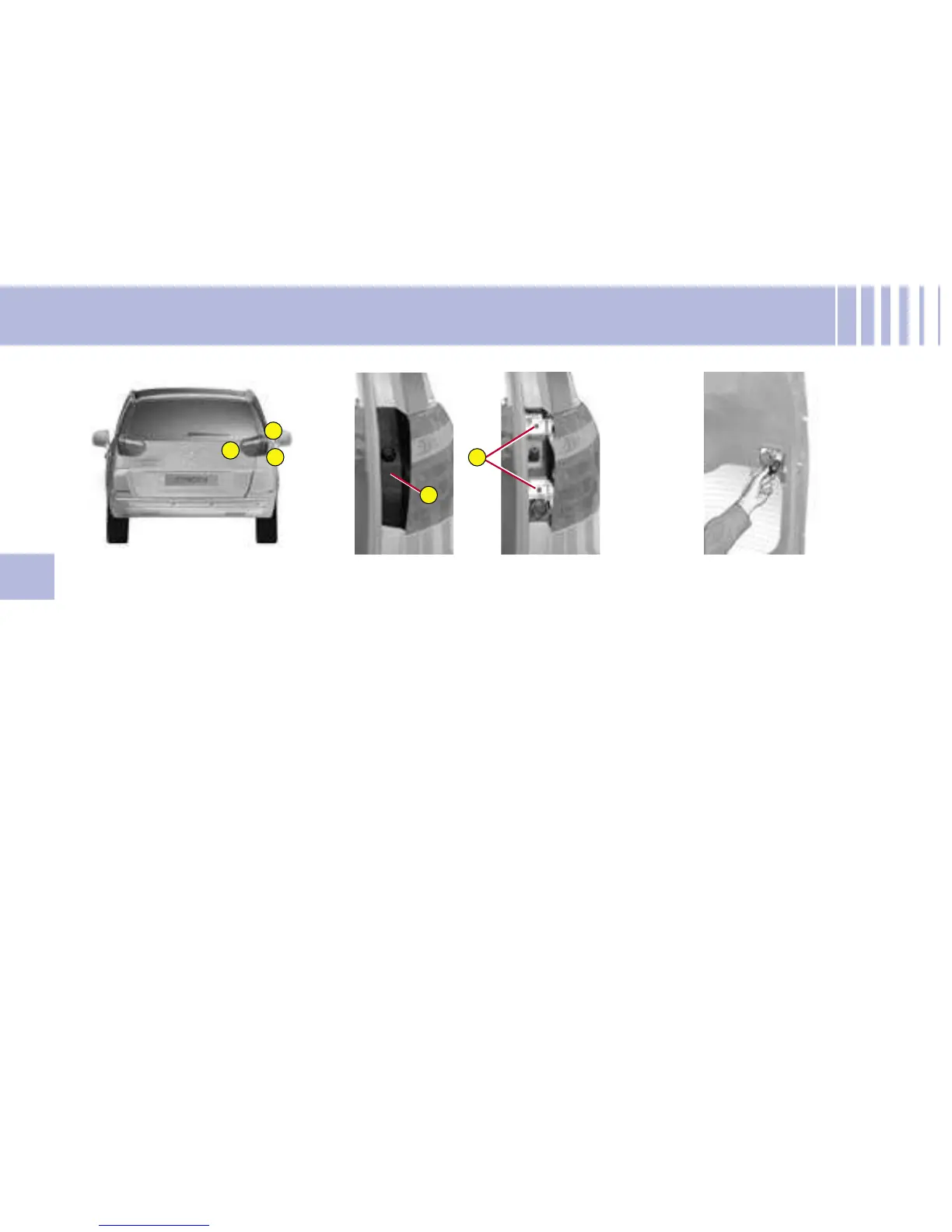

Rear lamp units on the
bodywork
1. With the tailgate open, press
on the plastic cover A, located
close to the lens, to release it
from its housing.
2. Undo the two screws B on the
side of the lens and detach the
lamp by pulling it rearwards.
3.
Disconnect the connector linking
the lens unit with the tailgate
.
4. Remove the bulb-holder.
5. Replace the bulbs. To remove a
bulb, rotate it a quarter turn. To
refit the bulb, rotate it a quarter
turn in the other direction.
6. Reposition the bulb-holder.
7. Reconnect the connector to
the lens unit.
8. Reattach the lamp unit on the
bodywork and do up the two
screws.
9. Reposition the plastic cover
by exerting a pressure.
Rear lamps on the tailgate
1. With the boot open, remove the
plastic cover on the tailgate.
2. Remove the bulb-holder from
its housing.
3. Replace the bulb. To remove a
bulb, rotate it a quarter turn. To
refit the bulb, rotate it a quarter
turn in the other direction.
4. Reposition the bulb-holder.
5. Refit the plastic cover.
CHANGING BULBS -
REAR LENS - C4 PICASSO
