178
VI

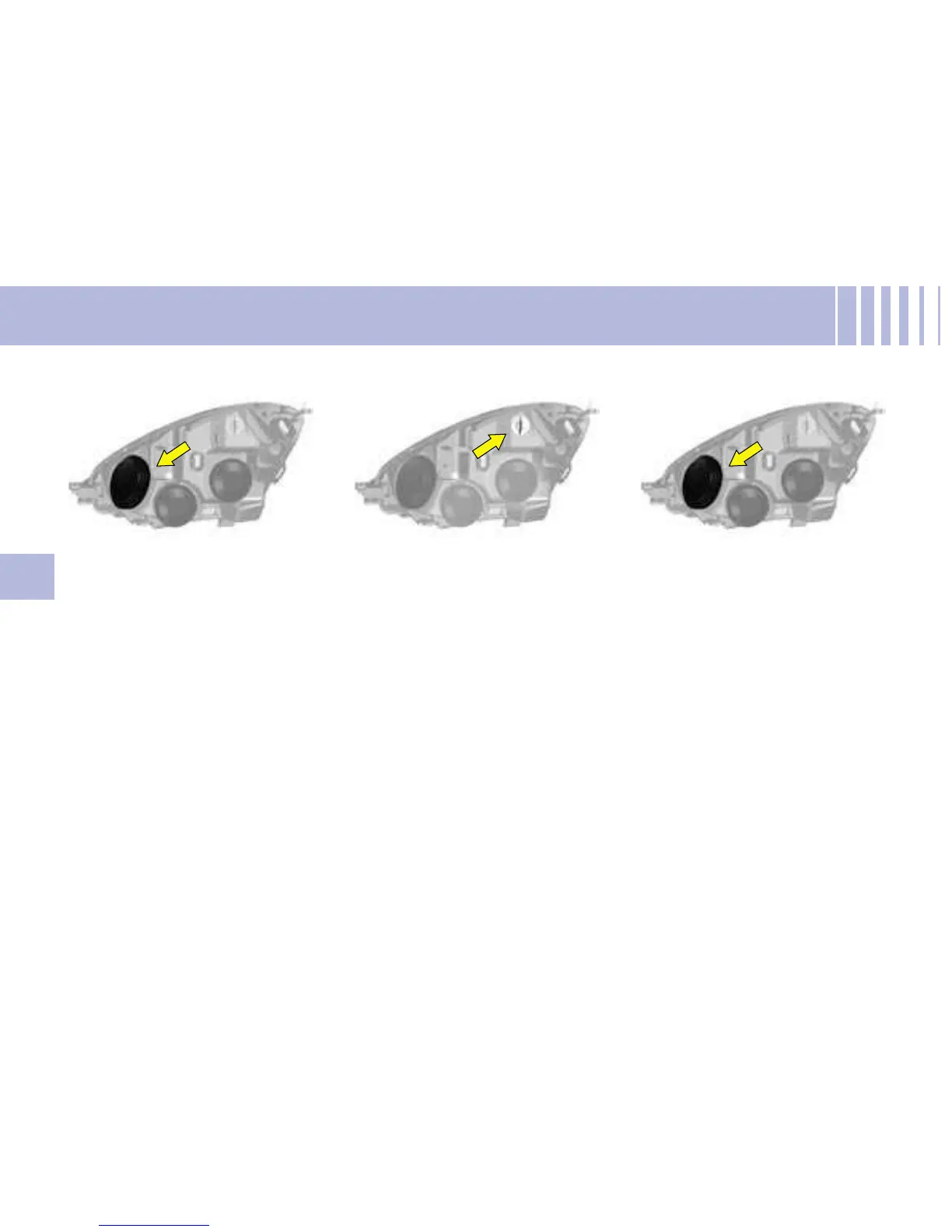

Main beam
1. Remove the rubber plug.
2. Detach the clips by lowering
them on each side of the bulb.
3. Pull on the bulb-holder to
remove it.
4. Replace the bulb H1.
5. Push the bulb-holder back into
its housing.
6. Reattach the clips.
7. Put back the rubber plug.
Sidelamp
1. Rotate the bulb-holder a quarter
turn anti-clockwise.
2. Remove it from its housing.
3. Replace the bulb H6W.
4. Reposition the bulb-holder.
5.
Rotate it a quarter turn clock-
wise to reposition in its housing
.
Direction indicator
1. The direction indicator bulb is
located underneath the main
beam bulb. Remove the rub-
ber plug.
2. Pull on the bulb-holder to re-
move it.
3. Replace the bulb H21.
4. Reposition the bulb-holder in
the bracket and push it in.
5. Put back the rubber plug.
CHANGING BULBS - HALOGEN HEADLAMPS
