Setpoint group Sensors Spec Related FW 2.5.0
Range [units] -1000 .. +1000 [-]
Default value 0 -
Step 1
Comm object 13640 Related applications
Description
Calibrate the constant to adjust the measured value of plug-in analog inputs. Physical dimension of
calibrating constant is corresponding to analog input.
Calibr AIO4
6 back to List of setpoints
Setpoint group Sensors Spec Related FW 2.5.0
Range [units] 0.01 .. 655.34 [-]
Default value 1.00 -
Step 0.01
Comm object 14281 Related applications
Description

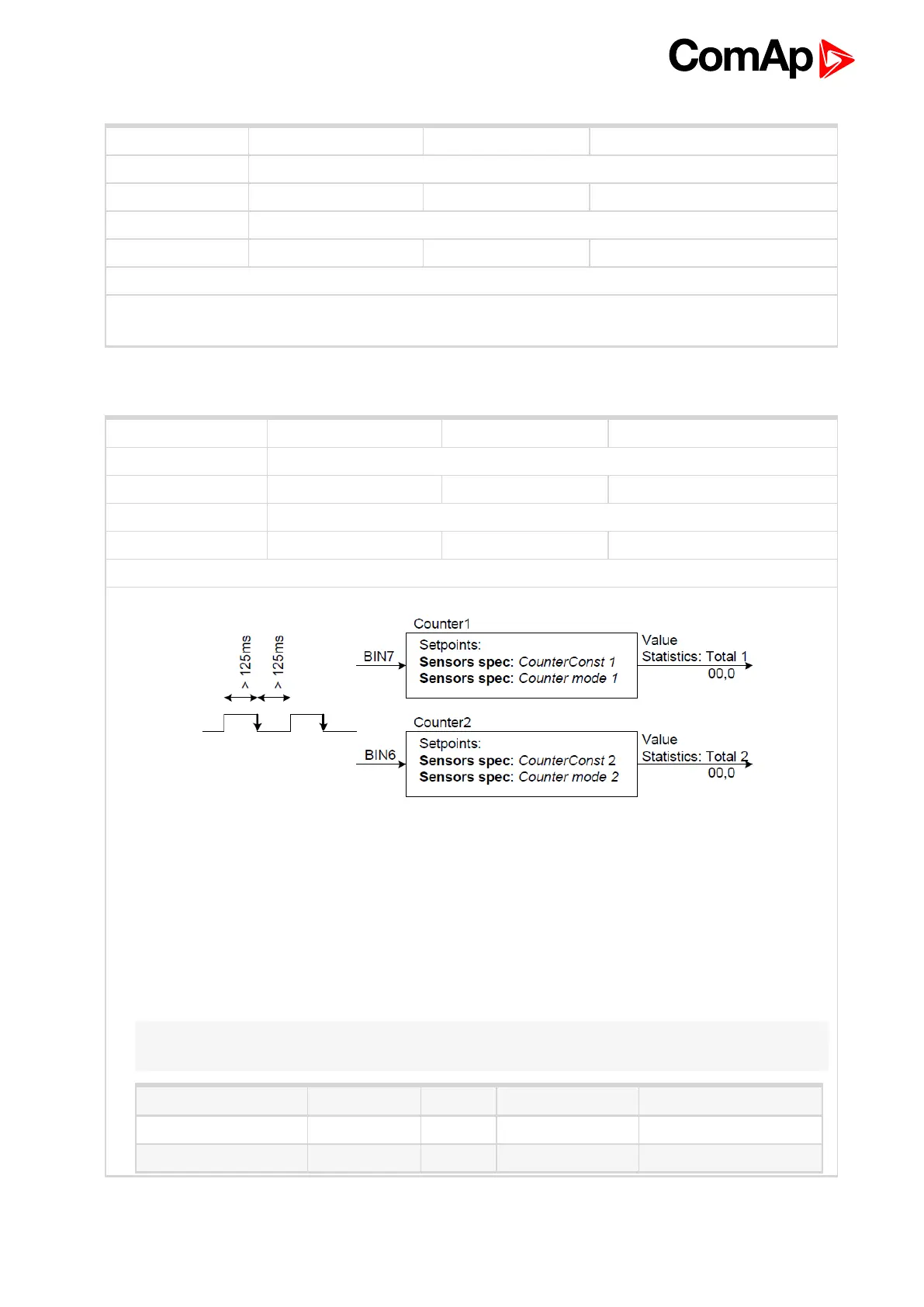

Counter 1 (fix linked to Binary physical input 7) and Counter 2 (fix linked to Binary physical input 6) counts
pulses (falling edges). The counters function depends on Counter mode 1 and … 2 setting and does not
depend on BIN6, BIN7 inputs configuration. The maximal input frequency is limited op to 4Hz – i.e. the
shortest input pulse is 125ms and gap 125ms (not shorter) to be each edge counted.
CounterConst 1, CounterConst 2 is conversion (multiplication) factor between number of counted pulses
(edges) and output Statistics values Total 1 and Total 2. Values stay in memory even if controller is switched
off. Both can be cleared or adjusted in LiteEdit like other Statistics values when level 3 password is set.
The Statistics value Total 1 and Total 2 range see in table below.
Note: The number of controller screen characters is limited – i.e. displays ????? when steps over range.
Both counters starts from again zero when reach maximum.
Statistics value Screen From To Over
Total 1 or Total 2 Controller 0.0 9999999.9 ?????????
LiteEdit 429496729.4 Continue from 0.0
CounterConst 1, CounterConst 2
6 back to List of setpoints
