InteliLite Global Guide
107
5.4.20 PLC
PLC Editor is powerful tool which helps you to create your own PLC scheme. It has graphical interface to have
user interface easy to use.

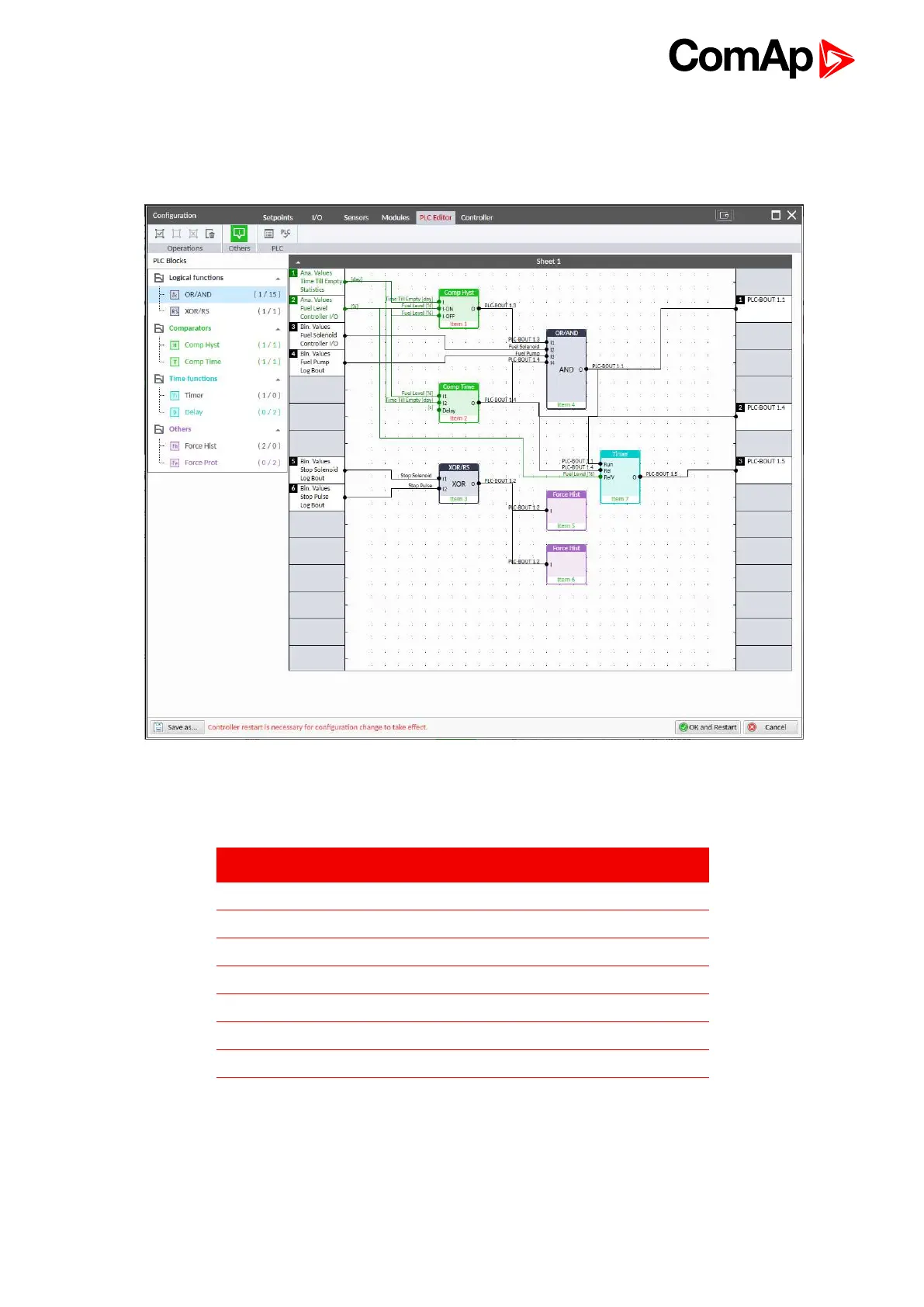

Image 5.33 PLC Editor main page
List of available PLC blocks
PLC block Number of blocks
OR/AND 16
XOR/RS 2
Comparator with hysteresis (Comp Hyst) 2
Comparator with delay (Comp Time) 2
Timer 1
Delay 2
Force history record (Force Hist) 2
Force protection (Force Prot) 2
Working with the editor
If the currently opened archive does not contain any PLC program, then an empty drawing is created
automatically when you select the PLC Editor. The procedure of creation of a PLC drawing (program) contains
