InteliLite Global Guide
99
Short period mode
Set-up via LiteEdit2015
To set-up timer via LiteEdit2015 go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 264).

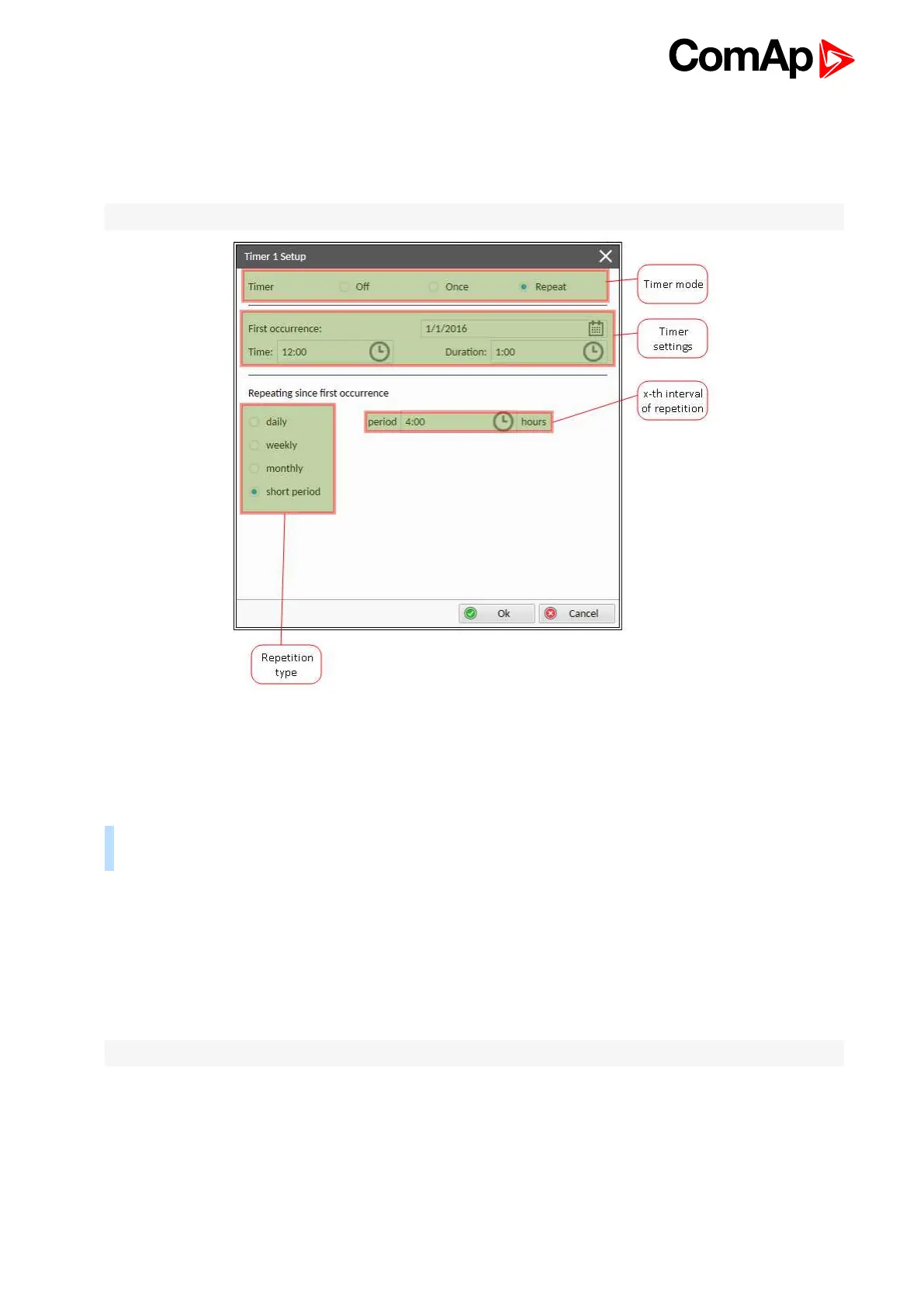

Image 5.28 Short period mode - LiteEdit2015
In timer mode select Repeat. In repetition type select Short period. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the interval of repetition
(shorter than 1 day).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 4th hour for 1 hour.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 264)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 265) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 266), Timer 1 First Occur. Time (page 266) and
Timer 1 Duration (page 266). In setpoint Timer 1 Repeated (page 267) select Short Period and adjust Timer 1
Refresh Period (page 268) (interval of repetition).
Note: Use left and right buttons to move between timer setpoints.
5.4.12 Rental Timers
In controller are two timers which are designed like rental timer. Rental timers will stop gen-set after their
elapse.
