InteliLite Global Guide
15
2.6 CAN modules

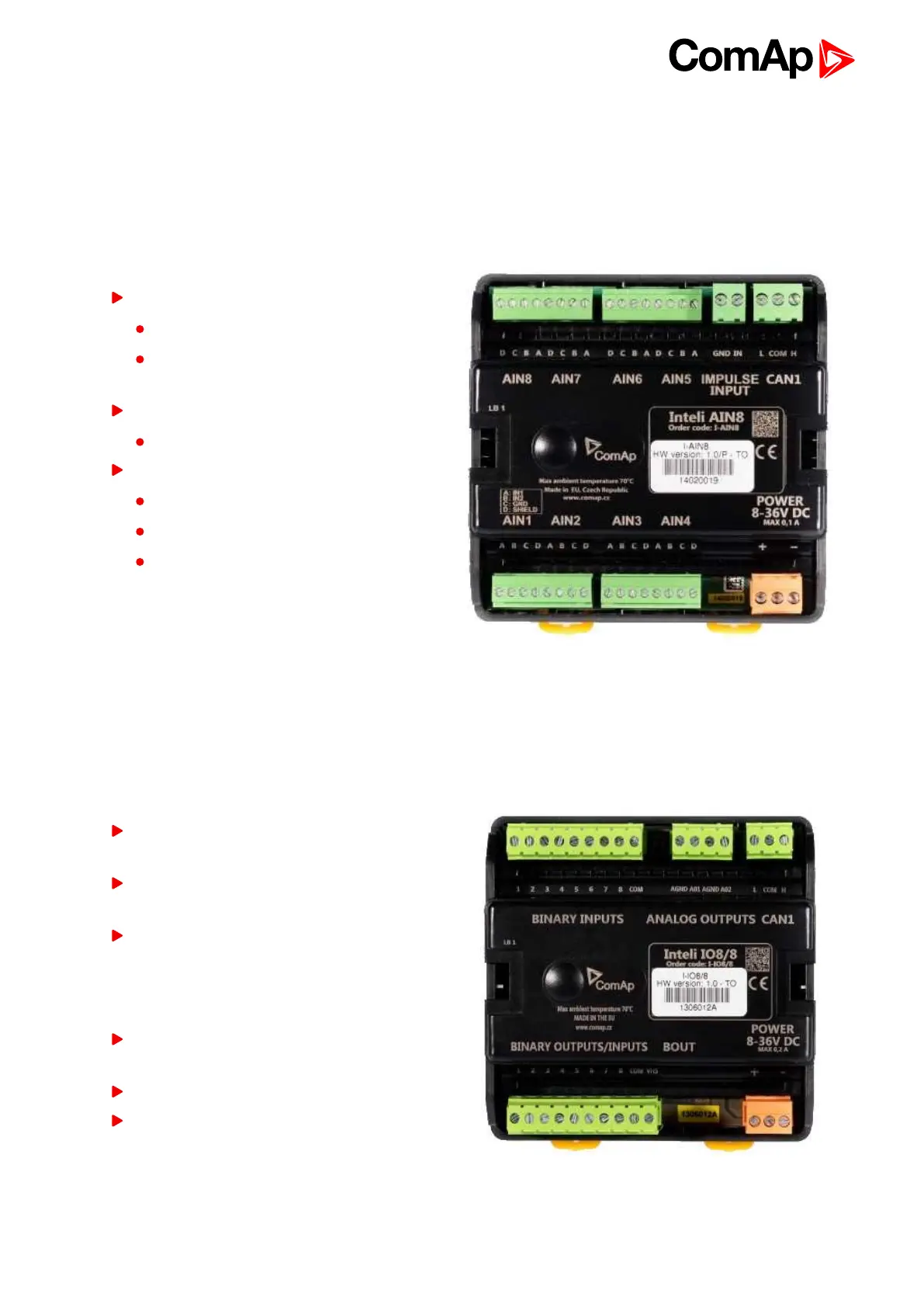

2.6.1 Inteli AIN8
The extension module Inteli AIN8 offers users more analog inputs and outputs for controllers. The unit offers the
user the flexibility to configure the unit to have 8 analog inputs.
Supported sensors:
Resistor 3-wire input
Common resistor: 0-250Ω, 0-2400Ω, 0-10kΩ
Temperature sensor: Pt100, Pt1000, Ni100,
Ni1000
Current (active or passive sensors)
±20mA , 0-20mA, 4-20mA
Voltage
±1V, 0-2,4V, 0-5V, 0-10V
Lambda probes
Thermocouples are not supported (the
measuring loop was designed for lambda
probes, what caused non-support of
thermocouples)
2.6.2 Inteli IO8/8
The extension module Inteli IO8/8 offers users more binary inputs and outputs for controllers. The unit offers the
user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, and 2 analog outputs, or 16
binary inputs, 0 binary outputs and 2 analog outputs via switches inside the controller.
Configuration 8/8
8 Binary inputs (options: pull up or pull down
logic)
8 Binary outputs (options: Low side switch (LSS)
or High side switch (HSS))
2 Analog outputs (options: voltage (0-10V),
current (0-20mA) and PWM (5V, adjustable
frequency 200Hz-2,4kHz))
Configuration 16/0
16 Binary inputs (options: pull up or pull down
logic)
0 Binary outputs
2 Analog outputs (options: voltage (0-10V),
current (0-20mA) and PWM (5V, adjustable
frequency 200Hz-2,4kHz))
