Appendix B - Conguration Examples
7.) Set the transmit power to 75 percent.
set radio wlan01 tx-power 75
8.) View information about the radio settings.
get radio wlan01 detail
Radio Conguration Using SNMP
1.) Load the DLINK-WLAN-ACCESS-POINT-X600-MIB module.
2.) From the MIB tree, navigate to the objects in the apRadio table (apRadioBss > apRadioTable).
3.) Use the apRadioStatus object to set the status of Radio 12 to up (1).
4.) Use the apRadioMode object to set the Radio 12 mode to IEEE 802.11b/g/n, which is bg-n (4).
5.) Use the apRadioChannelPolicy object to set the channel policy to static (1), which disables the automatic
channel assignment.
6.) Use the apRadioStaticChannel object to set the channel to 6.
7.) Use the apRadioChannelBandwith object to set the channel bandwidth for Radio 12 to forty-MHz (2).
8.) Use the apRadioTxPower object to set the transmission power on Radio 12 to 75.
9.) Navigate to the objects in the apBssTable.
10.) Use the apBssMaxStations object to set the value of the maximum allowed stations to 100.
Conguring the Wireless Distribution System
This examples shows how to congure a WDS link between two APs. The local AP is MyAP1 and has a MAC address
of 00:1B:E9:16:32:40, and the remote AP is MyAP2 with a MAC address of 00:30:AB:00:00:B0.
The WDS link has the following settings, which must be congured on both APs:
•) Encryption: WPA (PSK)
•) SSID: wds-link
•) Key: abcdefghijk
WDS Conguration from the Web Interface
To create a WDS link between a pair of access points “MyAP1” and “MyAP2” use the following steps:
1.) Log onto MyAP1 and navigate to the Manage > WDS page.

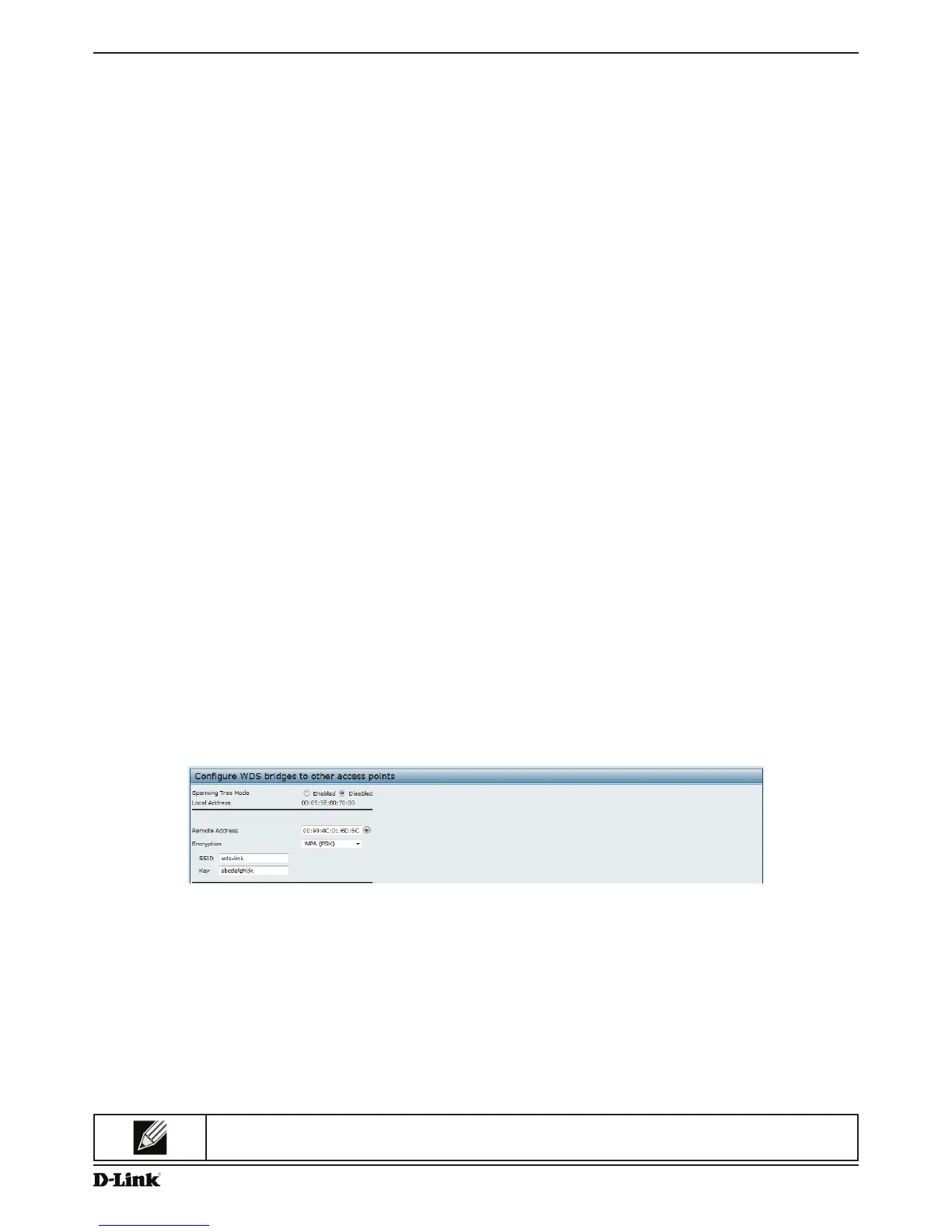

Figure 71 - WDS Conguration from the Web Interface
The MAC address for MyAP1 (the access point you are currently viewing) is automatically provided in the Local
Address eld.
2.) Enter the MAC address for MyAP2 in the Remote Address eld, or click the arrow next to the eld and select
the MAC address of MyAP2 from the pop-up list.
3.) Select WPA (PSK) from the Encryption menu.
4.) Enter wds-link in the SSID eld and abcdefghijk in the Key eld.
5.) Click Apply to apply the WDS settings to the AP.
6.) Log onto MyAP2 and repeat steps 2-5 (but be sure to use the MAC address of MyAP1 in the Remote Address
eld.
Note: MyAP1 and MyAP2 must be set to the same IEEE 802.11 Mode and be transmitting on the
same channel.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
