Section 3 - Viewing Access Point Status
Field Description
TSPEC Statistics
Summary for Voice
ACM
Indicates the total number of accepted and the total number of rejected voice Trafc
Streams.
TSPEC Statistics
Summary for Video
ACM
Indicates the total number of accepted and the total number of rejected video Trafc
Streams.
Table 14 - TSPEC AP Statistics
Viewing Radio Statistics Information
The Radio Statistics page provides detailed information about the packets and bytes transmitted and received on the
radio interface of this access point.

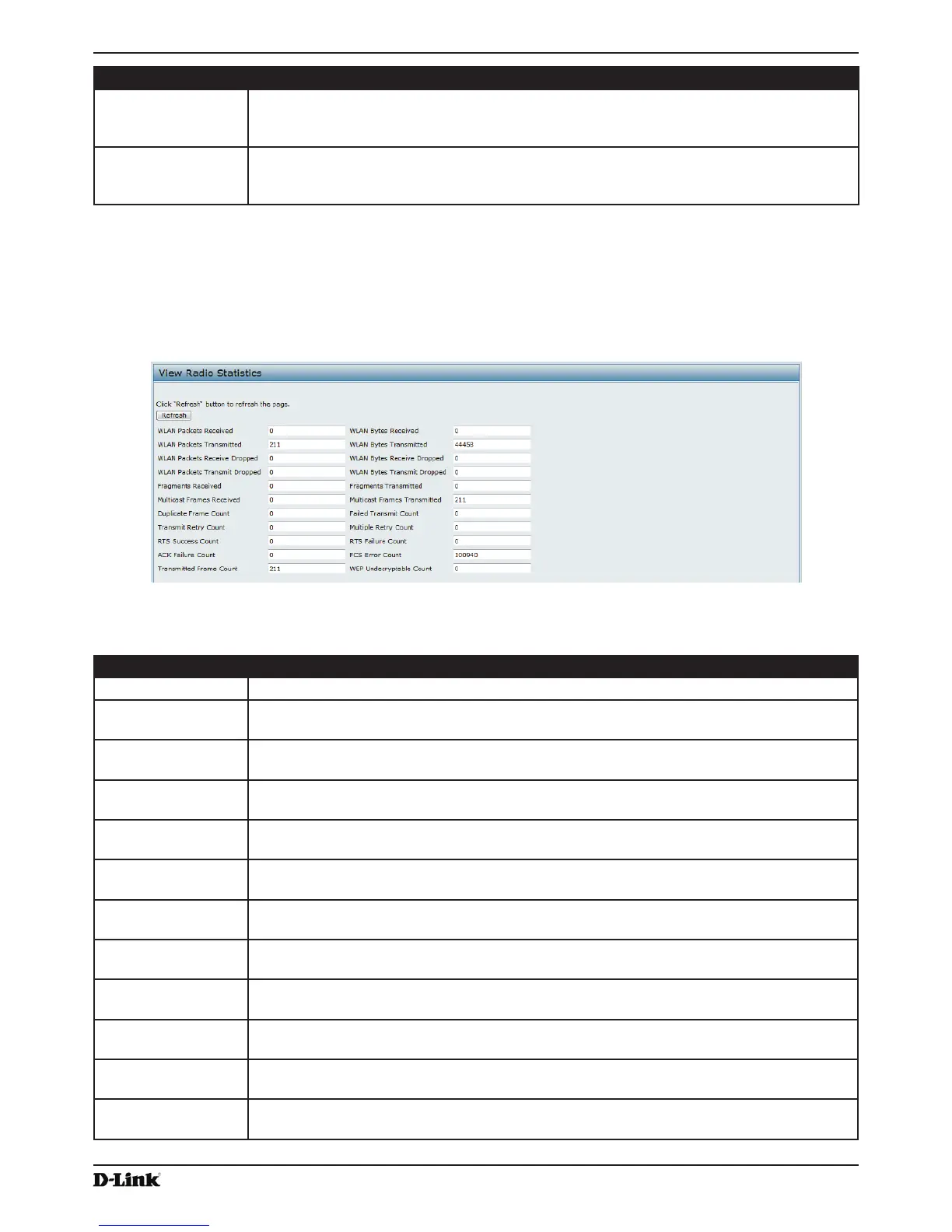

Figure 14 - View Radio Statistics
The following table describes details about the Radio Statistics information.
Field Description
Radio Choose either radio 1 or radio 2 to view statistics for the selected radio
WLAN Packets
Received
Total packets received by the AP on this radio interface.
WLAN Bytes
Received
Total bytes received by the AP on this radio interface.
WLAN Packets
Transmitted
Total packets transmitted by the AP on this radio interface.
WLAN Bytes
Transmitted
Total bytes transmitted by the AP on this radio interface.
WLAN Packets
Receive Dropped
Number of packets received by the AP on this radio interface that were dropped.
WLAN Bytes
Receive Dropped
Number of bytes received by the AP on this radio interface that were dropped.
WLAN Packets
Transmit Dropped
Number of packets transmitted by the AP on this radio interface that were dropped.
WLAN Bytes
Transmit Dropped
Number of bytes transmitted by the AP on this radio interface that were dropped.
Fragments
Received
Count of successfully received MPDU frames of type data or management.
Fragments
Transmitted
Number of transmitted MPDU with an individual address or an MPDU with a multicast
address of type Data or Management.
Multicast Frames
Received
Count of MSDU frames received with the multicast bit set in the destination MAC address.
